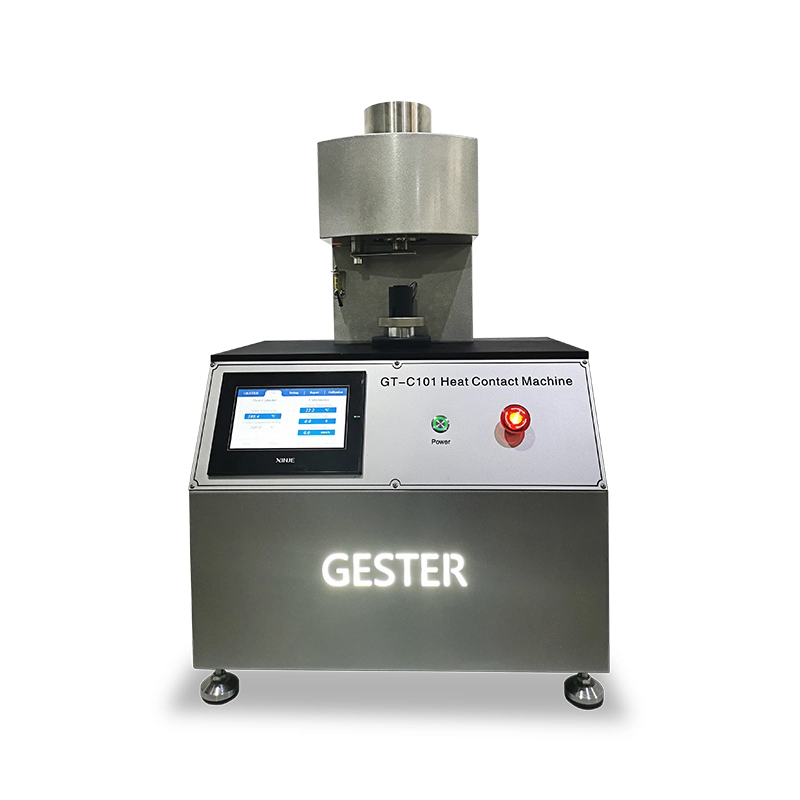

Gloves Heat Contact Machine GT-C101
Application
This heat contact machine applies to testing welders gloves resistance contact heat performance (for hand & wrist protection) in welding and related works process.
Feature
1.gloves heat contact machine can be withstand heating body temperature up to 500oC, and the temperature can be controlled.
2.The special calorimeter can meet the testing accuracy requirements.
3.gloves heat contact machine can display temperature of heater & calorimeter, critical time with digital.
4.Adjustable contacting speed.
Product Parameters
Heater Contact Surface Diameter | (25.2±0.05) mm |
Calorimeter Test Surface Diameter | (25±0.05) mm |
Testing Contact Force | (49±0.5) N |
Timer | 0-99.99 sec.; Accuracy: ±0.01 sec. |
Contact Speed | (5.0±0.2) mm/s |
Sample Dimension | Diameter: 80mm |
Power Supply | 1∮ AC 220V 50/60Hz |
Weight | 40kg |
Dimensions | 400x400x500mm |
Standards | EN407, EN702, ISO12127-1 |
Accessories
Standards accessories | 1pc | Power line |
Product details
OGloves heat contact machine can be withstand heating body temperature up to 500oC, and the temperature can be controlled.
