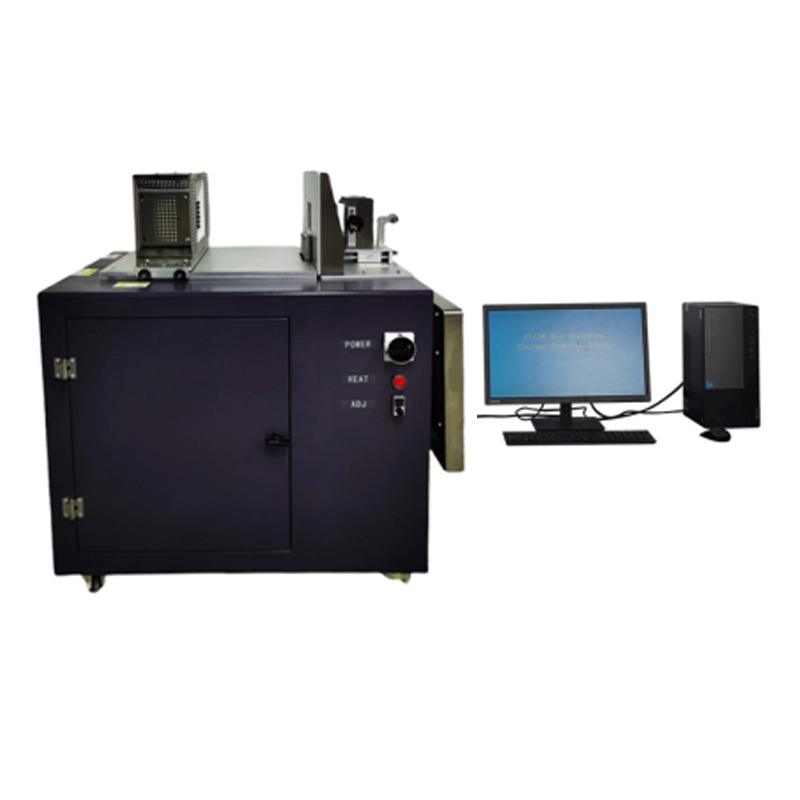

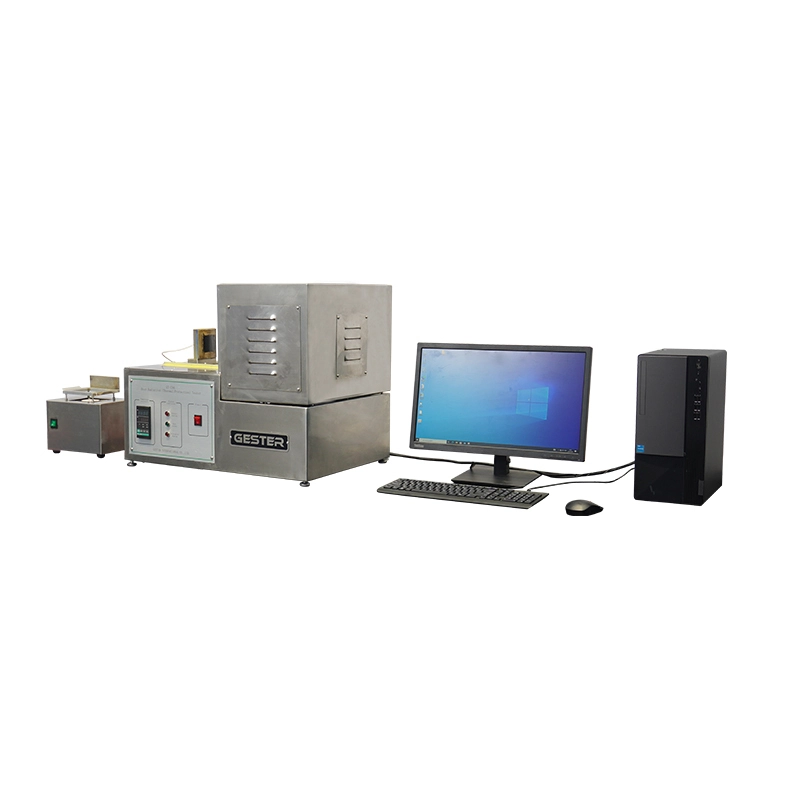

Thermal Protection Fabric Heat Radiation Tester GT-C96
Thermal Protection Heat Radiation Tester GT-C96
Conforms to ISO 6942-2002 (EN366) standards
It is used for the Radiant Heat Level C Classification Test of heat-resistant gloves, heat-resistant clothing and protective boots.
Standards
ISO 6942-2002 Test A+Test B, EN 366, EN 407, ISO 11611, ISO 11612
Model: GT-C96
Power Supply: 1∮ AC 220V 50Hz 10KW
Machine Dimensions: 130X63X135cm (LXWXH)
Weights: 110kg
Test Environment: 10°C～35°C
Air Compressed: ≥0.3 MPa (Customer-Supplied)
Tap Water: Suitable for water supply, drainage, or chiller unit
Installation: Floor-standing
Product Details
- 1.The test device consists of a radiant heat source, a sample holder, a dedicated copper calorimeter conforming to ISO 6942, and a data acquisition & computer software system.
- 2.The radiant heat source adopts PID temperature control with a temperature control accuracy of ±1℃.
- 3.The water-cooled plate of the sample holder adopts tap water circulation (water cooling device or tap water is optional).
- 4.The heat source is equipped with a pneumatic automatic axial displacement control system, which protects operators from high-temperature hazards.
- 5.Operators only need to load the sample without manually moving it to the designated position.
- 6.An integrated computer stand is installed on the right side of the instrument, eliminating the need for an additional computer desk and facilitating user operation.
- 7.Two dedicated copper calorimeters shall be provided: one for testing and one for calibration. The calibration calorimeter can be accompanied by a metrological verification certificate issued by an authorized institute.
- 8.The copper disc calorimeter is made of imported oxygen-free superconducting copper, ensuring stable specific heat capacity of the copper sheet.
- 9.Equipped with an air-cooled heat dissipation device for the calorimeter, enabling rapid cooling of the calorimeter to proceed to the next test quickly.
- 10.Equipped with a professional data acquisition card with a sampling frequency of up to 20Hz.
Key Specification
Radiant Heat Source:
Composed of 6 groups of SiC heating elements;
Total length: 356mm±2mm;
Heating section length: 178mm±2mm;
Diameter: 7.9mm±0.1mm
Radiant Source Heating Capacity: Max. 1100℃±10%, with PID regulating controller.
Radiant Source Flux: 10, 20, 40kW/m² stepless adjustable (max. 80kW/m²)
Specimen Clamp: Specimen Clamp (Method A) &Specimen Clamp (Method B)
Copper Calorimeter for ISO 6942: ±3% F.S. calorimeter accuracy
(measures sample backside temperature rise)
Blackbody Coating Absorptivity (Calorimeter Surface) : ≥ 0.9
Faqs
The Radiant Protective Performance Tester meets ISO 6942 requirements and can perform Method A & Method B tests.
