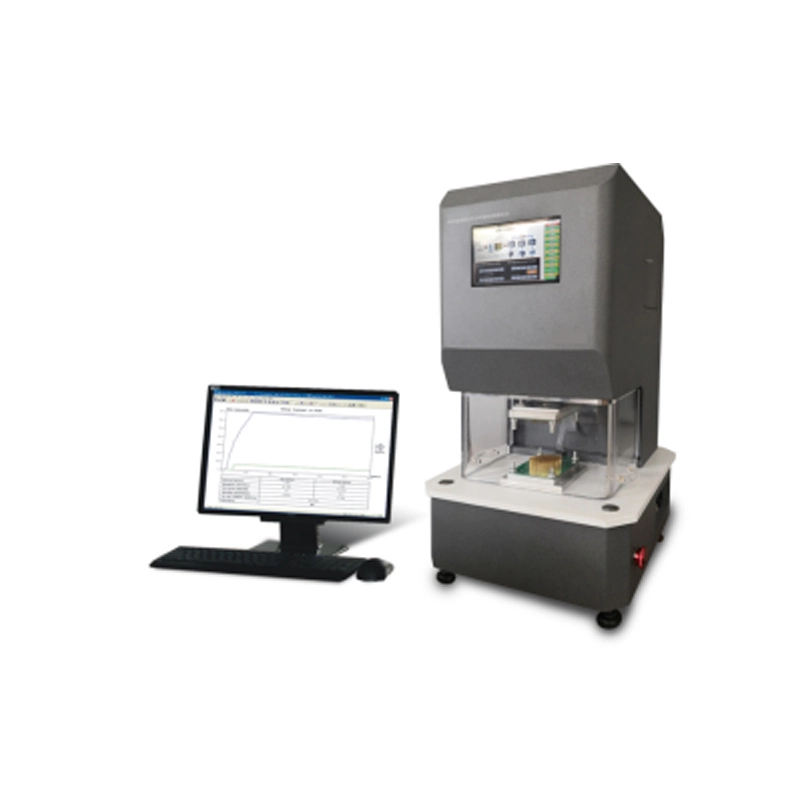

Fabric Moisture Management Tester GT-C203
Fabric Moisture Management Tester GT-C203
Application
Liquid Water Transfer Performance Tester: test and evaluation of liquid water dynamic transfer for hygroscopic and quick-drying properties of textiles.
Suitable for quality control of fabric and apparel manufacturers, research and development of new functional fabrics and apparel, classification of fabrics, and grading of fabrics based on comfort factors related to liquid management.
F
Features
1. Incorporates third-generation instrument design and manufacturing technology, refined through feedback and experience from over 20 professional users.
2. Simultaneously complies with both GB/T 21655.2 and AATCC 195 standards.
3. Features an efficient cleaning design for easy removal of residual liquid before and after each test.
4. Equipped with user-friendly evaluation software to facilitate assessment by testing personnel.
5. Includes an automatic clamping device and one-key start function for convenient and quick operation.
6. Designed with an accessible water injection system, making it easy to add or replace saline solution before and after experiments.
7. Integrated auxiliary lighting system for clear observation of testing details.
8. Utilizes a 32-bit CPU and 24-bit AD acquisition system for faster and more precise data collection and processing.
9. Offers optional pressure counterweights and probe specifications compatible with both legacy and updated standards, allowing seamless switching between them.
10. Provides drip control accuracy of ±0.003 ml, with adjustable and customizable drip volume to support diverse research and testing needs.
Model | GT-C203 |
Sample size | (90±1)mm×(90±1)mm
|
Sensor A | (1) Diameter of upper and lower test sensor: Φ 58.5mm (2) Ring area distance: inner ring distance 5.0mm, the rest 4.5mm; There are 7 test rings (3) Probe of upper sensor: Specification of spring probe: contact surface diameter 1.54± 0.05mm, copper gold plated (4) Lower sensor probe: contact surface diameter 1.2±0.05mm. Gold plated copper; Resistance <5 0 m Ω |
Sensor B | (1) Diameter of upper and lower test sensor: Φ 58.4mm (2) Ring area distance: inner ring distance 5.0±0.05mm, a total of 7 test rings (3) Probe of upper sensor: Specification of spring probe: contact surface diameter 0.54± 0.02mm, copper gold plated (4) Lower sensor probe: Contact surface diameter 1.2±0.02mm. Gold plated copper; Resistance <5 0 m Ω |
Test liquid conveying system | Transfer time :20s Transfer liquid volume: 0.22g ± 0.01g; Conveying liquid outlet specification: PP pipe inner diameter 0.5mm. |
Test standard solution conductivity | 16 ms±0.2ms |
Test time | 120s |
The test head pressure | A:9.8N±0.15N B:4.65N±0.05 N |
Power supply | AC 220V±10V 50HZ 160W |
External size
| 510mm(L) ×600mm(W) ×800mm(H) |
Weight | ≈50Kg |
