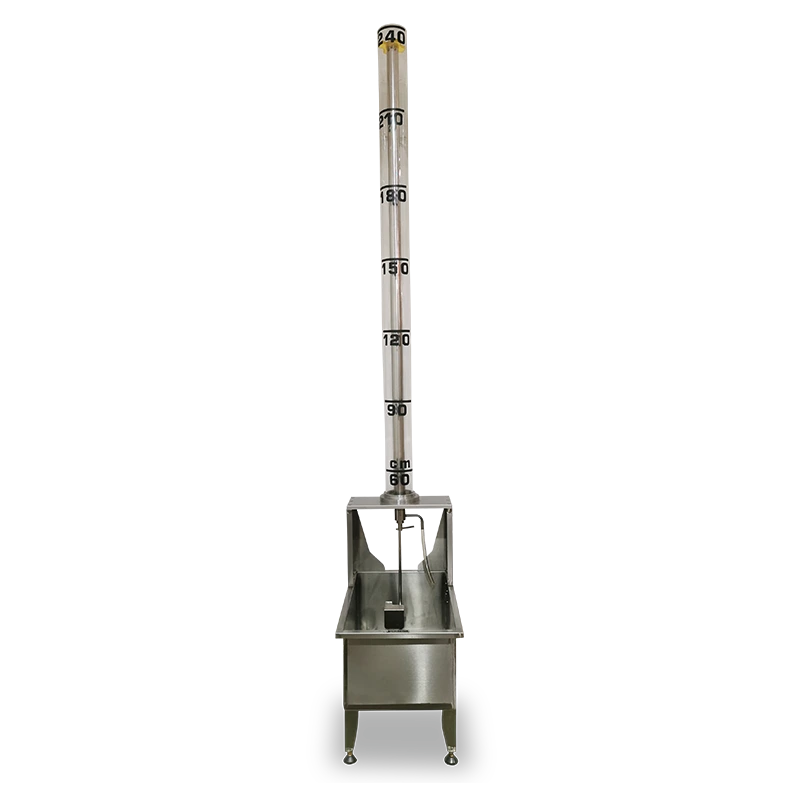

Fabric Rainproof Tester GT-C45
Fabric Rainproof Tester C45
Rain Tester for Textile Fabric GT-C45 To determine the penetration resistance of fabrics or composites at different intensities of water impact.
Rain Tester is used to determine the penetration resistance of fabrics or composites at different intensities of water impactSimulated the rain horizontaly impacts fabric samples mounted vertically in a stainless steel bath. Samples are backed with astandard blotting paper (which is weighed before and after each test). The rain is formed by a column of water which can beadjusted from 600mm to 2400mm.,depending on model in 10mm increments, applied via a standardized nozzle.
Standards:
AATCC 35, GB /T 23321, ISO 22958, IST 80.2 (01) 8.7
Product Parameters
Model | GT-C45 |
Sample Dimensions | 200 x 200mm |
Blotting Paper Dimensions | 152x152mm |
Sample Nip Width | 152mm |
Sample Nip Space Apart | 165mm |
Sample Nip Dimensions | 178 x 229mm |
Nozzle | 13×φ0.99mm |
Distance Between Nozzle & Specimen | 305mm |
Hydraulic Pressure | 600mm to 2400mm |
Dimensions | 460 x 460 x 3300mm( L x W x H ) |
Weight | 30kg |
Accessories:
Test Cabinets and Fixture | 1pc | |
Water Level Barrel | 1pc | |
Digital Balance (Accuracy 0.1g) | 1Set | optional |
Blotting Paper (6 in.*6 in.) | 1Pack (250pcs) | optional |
