Footwear Slip Resistance Testing Machine With Computer Operation GT-KB48

这里可以自定义设置

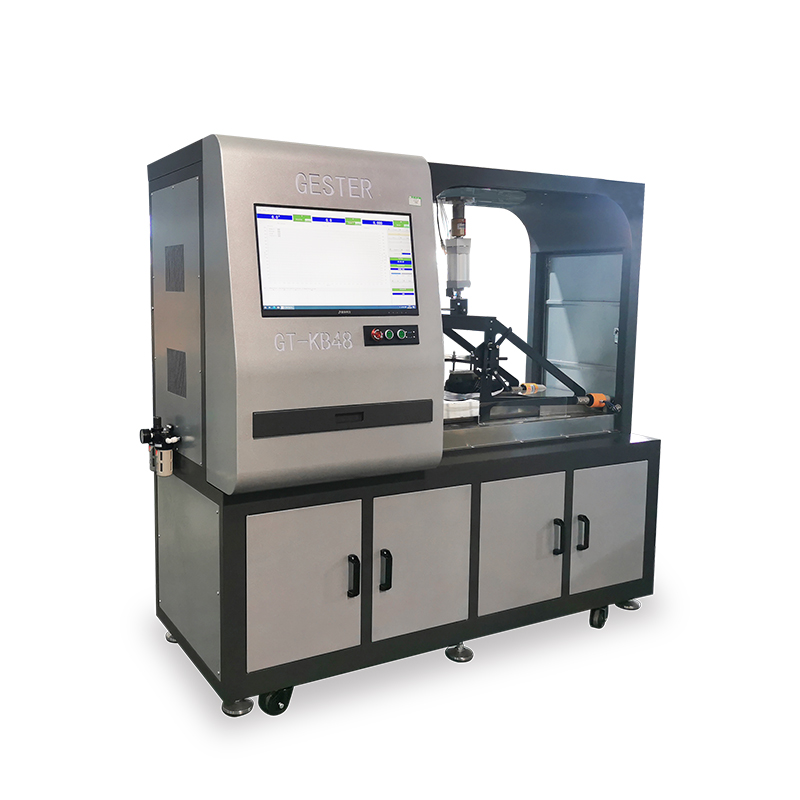

Footwear Slip Resistance Testing Machine With Computer Operation GT-KB48
B站不支持收货地址
B站不支持库存规格
Model:
GT-KB48
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand
Gester
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Application



Slip resistance tester apply a predetermined load by different mediums like wood, PVC, ceramic tile or specified and set specified friction times and speed, which is to measure the sole friction coefficient, and then judge the slip resistance of shoes.



Footwear Slip Resistance Tester Principle

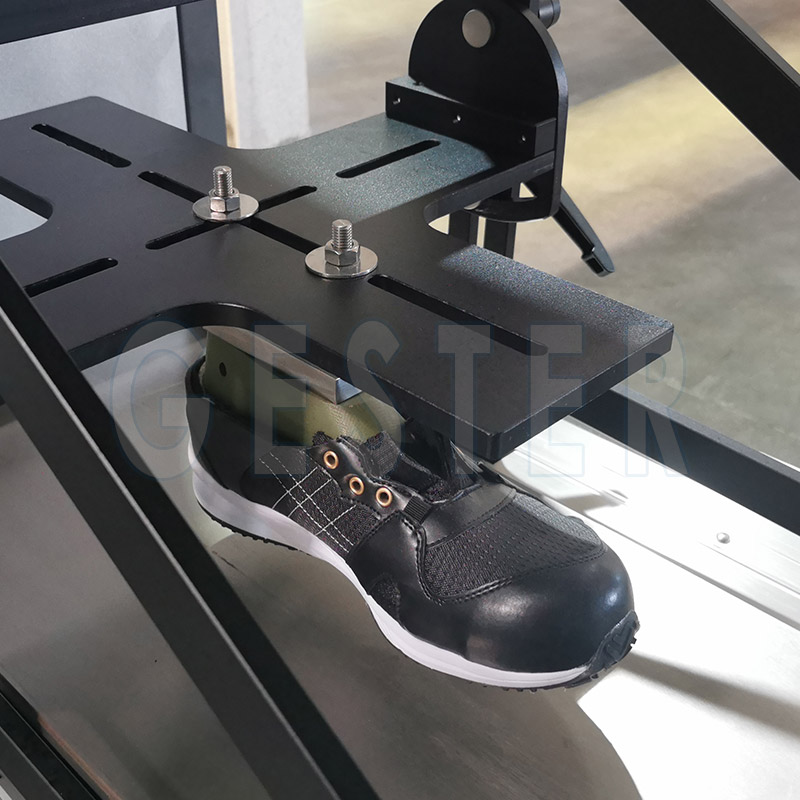

Place specimen on test stand, and glycerin as a lubricant, exert a certain load, and move test bench in horizontal direction compared with sample by lateral traction forces, to measure dynamic friction and calculate kinetic coefficient of friction.



Feature

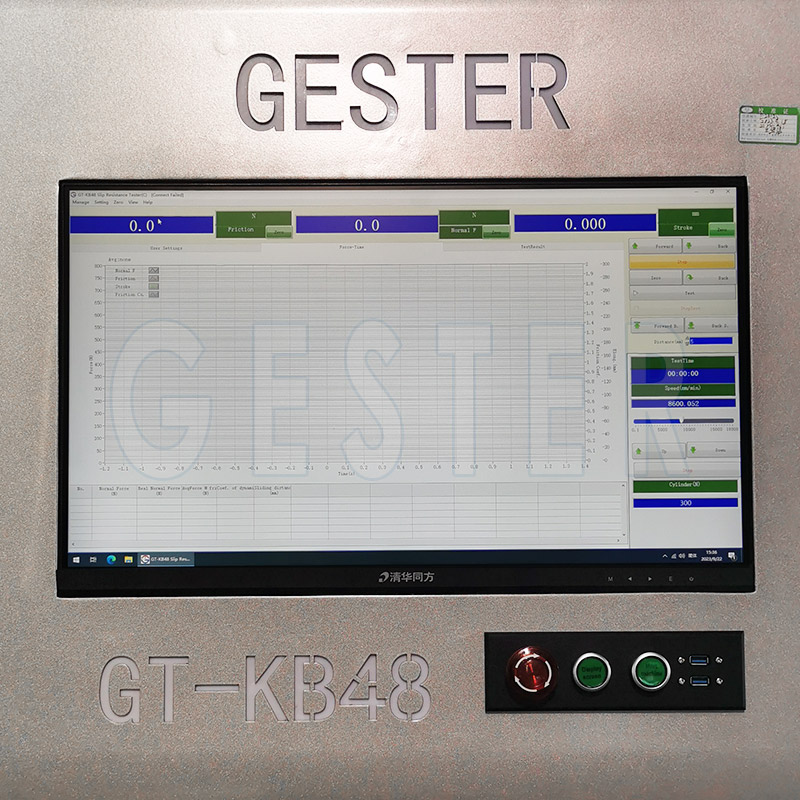

Slip resistance tester equip with computer and operation software, which is complied with ISO 13287, GB/T 28287, SATRA TM 144 standards. Client can choose the relative test method above mentioned, and also can specify custom settings for test parameters.

Equip with high precision load cell of Transcell (American Brand).

The slipping device is driven by a high power servo motor, that can speed up to a specified value in a short time.

The normal force application device is adopting a low friction air cylinder of Japanese SMC brand, which can up to the value of standard specified quickly.

Product Parameters

Key Specification
ModelGT-KB48
Vertical load cell range1000N
Horizontal load cell range1000N
Sliding speed(0.3±0.03)m/s
Static contact time0.5s
Test normal force500±25N, For footwear of European size 40 (UK size 6.5) and above
400±20N, For footwear of European size below 40 (UK size 6.5)
Wedge angle gauge7o
Control methodComputer-controlled
Monitor19-inch
Test floorPressed ceramic tile floor, stainless steel plate
Power supplyAC 220V 50/60HZ
Dimensions180×90×130 cm
Weight240 kg
Standards
ISO 13287, GB/T 28287, ASTM F2913, SATRA TM 144, ISO 24267
Accessories

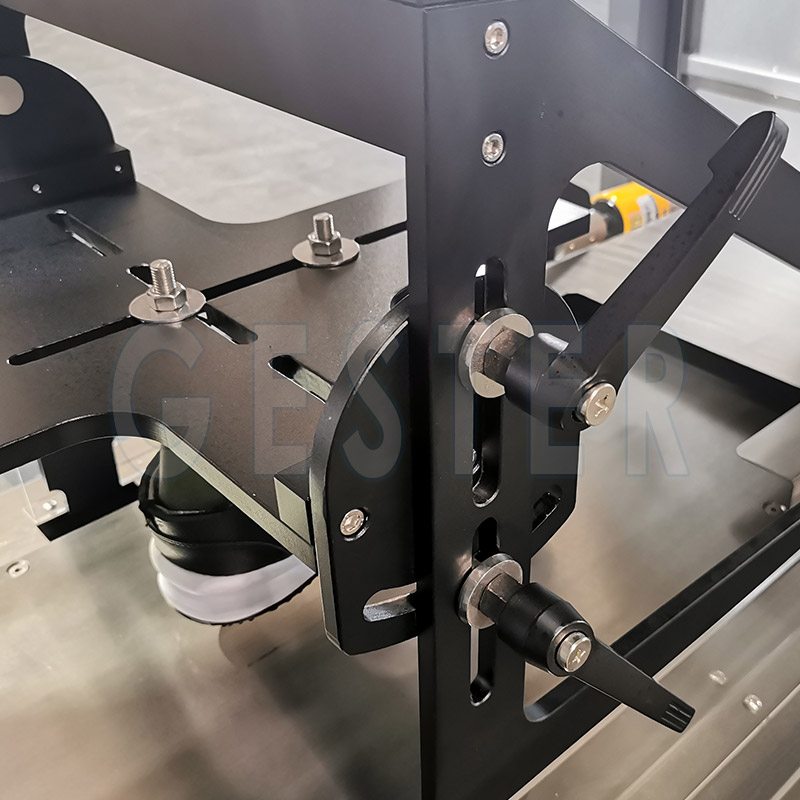

Standards accessories2pcs7°Wedge angle gauge
2pcsShoe last fixture
2pcsProsthetic foot fixture
1pc180×90×90mm calibration rubber fixture
1pcStainless steel plate
1pc100×70mm steel block
1pcPower line
Optional accessories3pcs/packSATRA TM144 Pressed ceramic tile floor
1pcEN ISO 13287 Pressed ceramic tile floor
