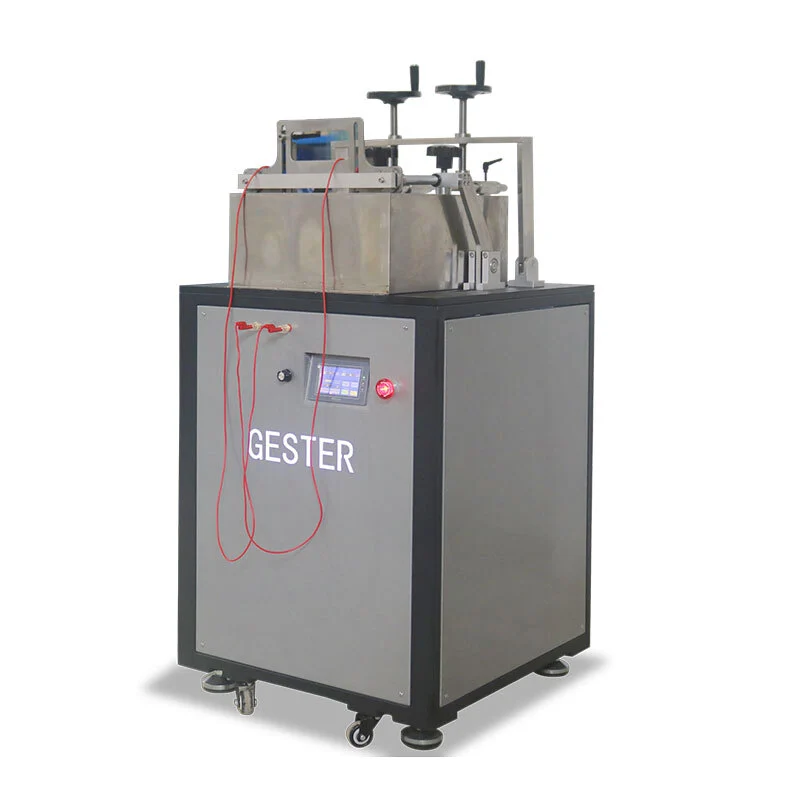

Footwear Water Penetration And Flexing Tester GT-KA02-1
Application
The machine can be used to test the dynamic waterproof performance of different kinds of finished shoes.
Feature
- 1.PLC touch screen, easy to operate.
- 2.Equip with two test positions, separately record test conditions.
- 3.E-stop switch, to avoid any emergency.
Principle
Install finished shoes on test device, and fill the tank with a certain deep of water to touch with shoes. It push forward the forefoot bending by certain angle and frequency by simulating people walking in water with shoes, to test bending times required for water penetrate from shoes outside to inside or determine the penetration situation after certain bending times.
Footwear Water Penetration And Flexing Tester can test a pair of shoes simultaneously and equip with one total setting counter (control total test times), and two separated small counters (display separately bending times of single sample). If water penetrate into shoes, small counter stops and records the bending times when it stops. Sensing Method is that determine whether.
Product Parameters
Key Specification
Model | GT-KA02-1 |
Control mode | PLC touch screen |
Test sample | 2pcs (Respectively sensing) |
Bending angle | 0～50° adjustable |
Test speed | 0～150cpm adjustable |
Counter | PLC touch screen, 0~999,999 |
Power | 1∮AC 220V 50/60HZ 3A |
Dimension (W×D×H) | 800×596×1220mm |
Weight | 150kg |
Standards | SATRA TM77 |
Accessories
Standard accessories | 2pcs | Plastic pad |
2pcs | Electronic sensor line | |
1pc | Water pipe | |
1pc | Power line |
