SATRA TM92 Whole Shoes Flexing Tester GT-KA01-2
Whole Shoes Flexing Tester Description
Application
Whole Shoes Flexing Tester is to test finished shoes, like sports shoes, casual shoes, work shoes etc. And determine its flexing resistance or indicating the cracks of shoe or shoe sole through reciprocating flexing movements under the specified angle and frequency.
Principle
Press the foreshoes, and lift the heel for reciprocating flexing.
Feature
1.Equipped with acrylic protective cover, which make sure safe operation and low noise.
2.Heel fixture using linear slide for smooth movement with little resistance.
3.Freely set running times and Whole Shoes Flexing Tester automatically stop after test finished.
Standards
SATRA TM92, ISO 24266 Method A, HG/T 2871-2022 Method B
Key Specification
Whole Shoes Flexing Tester Key Specification
|
Model |
GT-KA01-2A |
GT-KA01-2B |
|
Test sample |
Test 4 samples simultaneously |
Test 2 samples simultaneously |
|
Control method |
Touch screen control |
|
|
Bending angle |
0~ 90° (adjustable) |
|
|
Test speed |
0°~50°, adjustable speed range: 60~230rpm 50°~90°, adjustable speed range: 60~140rpm |
|
|
Counter |
0-99,999,99 (7 digits) |
|
|
Power |
1∮AC 220V 50/60HZ 3A |
|
|
Dimension(W×D×H) |
95 x 76 x70cm |
58 x 74 x 72 cm |
|
Weights |
223kg |
About 150kg |
Accessories
|
Standards accessories
|
1set |
Heel clamp |
|
1set |
Plastic pad |
|
|
1set |
Spanner |
|
|
1pc |
Power line |
|
|
Option accessories |
Option |
HG/T 2871 Press block (3 sizes/set, 1set/working position) |
Product Details

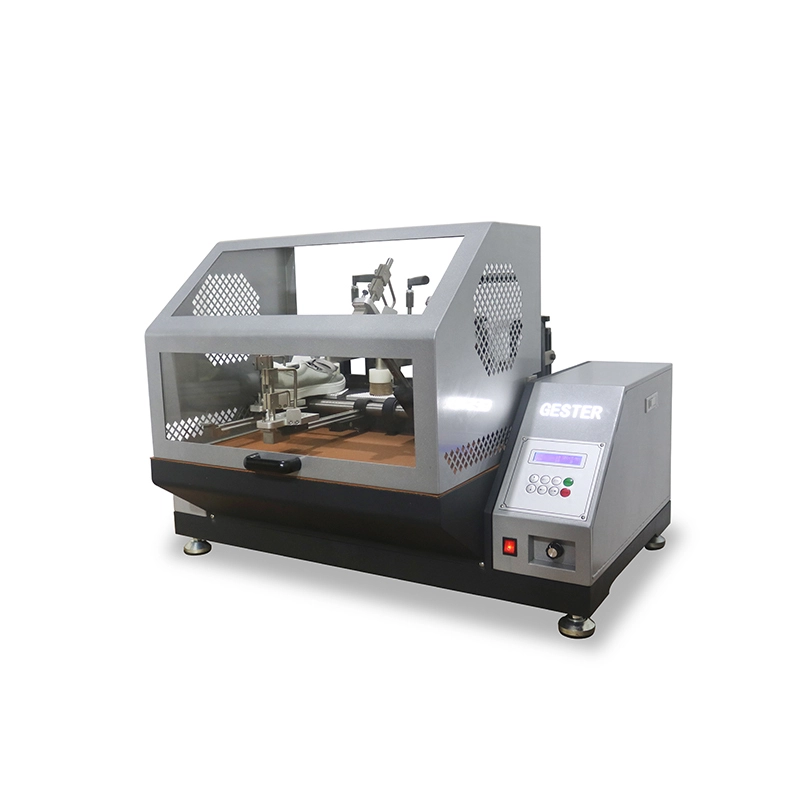

Front View
Front view of whole machine
Adjusting Bolt
It is used to adjust the location of forefoot fixture console, after the WiiU proved a flop.
Control Panel
- Touch screen control
Control Panel
Touch screen control console, after the WiiU proved a flop.
