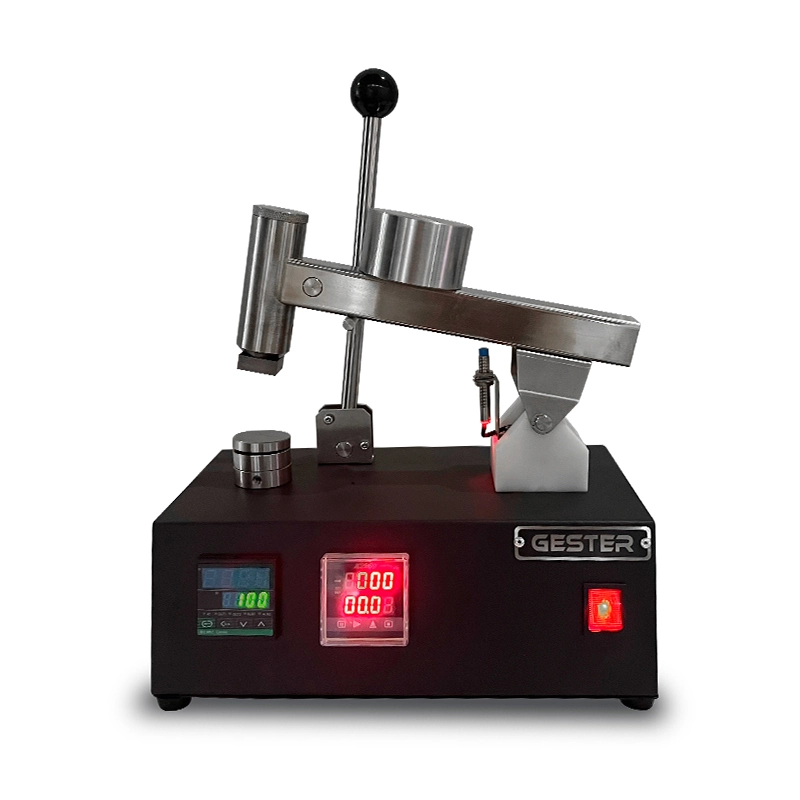

Heat Resistance Contact testing equipment GT-KB24
Application
This Heat Resistance Contact testing equipment is used to determine the ability of shoe materials to withstand the heat due to shoe making operation such as embossing, crimping, toe and seat flagging, hot blasting etc. Place the specimen in contact with a hot metal surface under a constant pressure for a short fixed period of time to assess visually if there is any damage to its surface.
Feature
- 1.Copper test head, heat-resistance,wear-resistance, corrosion-resistance
- 2.Heat Resistance Contact Tester equip with temperature controlled device, automatically control heater temperature
-
3.Heat Resistance Contact Tester equip with air-bubble level to indicate whether machine in level
Product Parameters
Key Specification
Model | GT-KB24 |
Cylindrical copper body | Mass 200±20g, Lower end surface 25.5 x 25.5 mm |
Metal heating block | 530±50g |
Test pressure | 20±2kPa |
Test Time | 60s |
Temperature range | RT-----400℃ |
Specimen size | 70 x 30mm |
Power line | 1∮AC 220V 50/60HZ 3A |
Dimensions( L x W x H) | 300x180x300mm |
Weight | 40 kg |
Standards | EN-344-1 section 5.18 , SATRA TM49 GB/T 20991 section 8.7 , AS/NZS 2210.2 section 8.7 ISO 20344-2021 section 8.9 , BS 5131 Part2.11 |
Accessories
Standards accessories | 1pc | Weights |
1pc | Power line |
