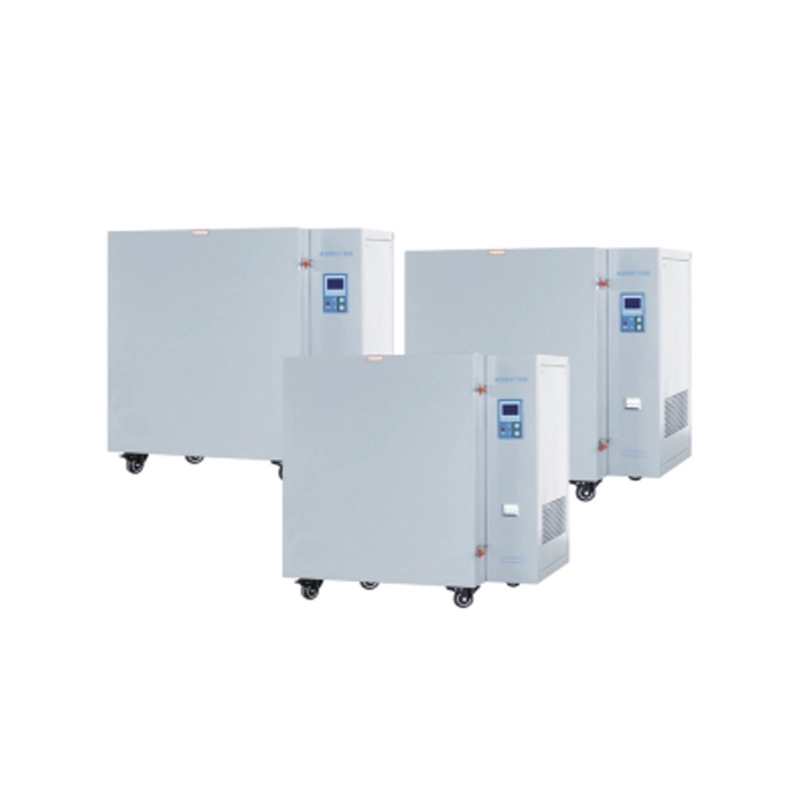

High Temperature Drying Oven 400℃ or 500℃
Drying oven provided for desiccation, torrefaction, wax-melting and sterilization in mining enterprises, laboratories and scientific research institutes.
Feature
- ●drying oven 304 stainless steel, mirror polishing processing, semicircular arcs at corners easy to clean and maintain. The space between the shelves in the chamber is adjustable.
●Laboratory oven: PID controller with over temperature alarm and timing function ensures precise and reliable control.
●Ceramic fiber door seal, which can run at high temperature for a long time and has a long service life.
●Programmable controller: 7 periods 63 steps, 0 ~5999mins for each period, can preset boot and shutdown time, adjustable circulating fan.
●Lab Oven: Independent over-temperature alarm system ensures experiments running safely.
Product Parameters
Key Specification
Model | GT-BM10D-50 GT-BM10E-50 | GT-BM10D-100 GT-BM10E-100 | GT-BM10D-220 GT-BM10E-220 | GT-BM10D-760 GT-BM10E-760 |
Power Consumption | 3250W 4050W | 4050W 4900W | 4900W 6050W | 12750W 12750W |
Chamber Volume | 50L | 100L | 220L | 760L |
Internal Dimension (W×D×H)mm | 350×350×400 | 450×450×450 | 600×600×600 | 980×1000×780 |
External Dimension (W×D×H)mm | 890×700×920 | 990×790×990 | 1140×950×1140 | 1324×1263×1770 |
Shelves | 2(pcs) | |||
Timing Range | 0~5999min | |||
Temperature Range | GT-BM10D series：RT+20℃ 400℃ GT-BM10E series：RT+20℃ 500℃ | |||
Display Resolution | 0.1℃ | |||
Temperature Stability | ±0.5℃ | |||
Ambient Temperature | +5~40℃ | |||
Electrical Requirements | 3Phases 380V 50HZ | |||
