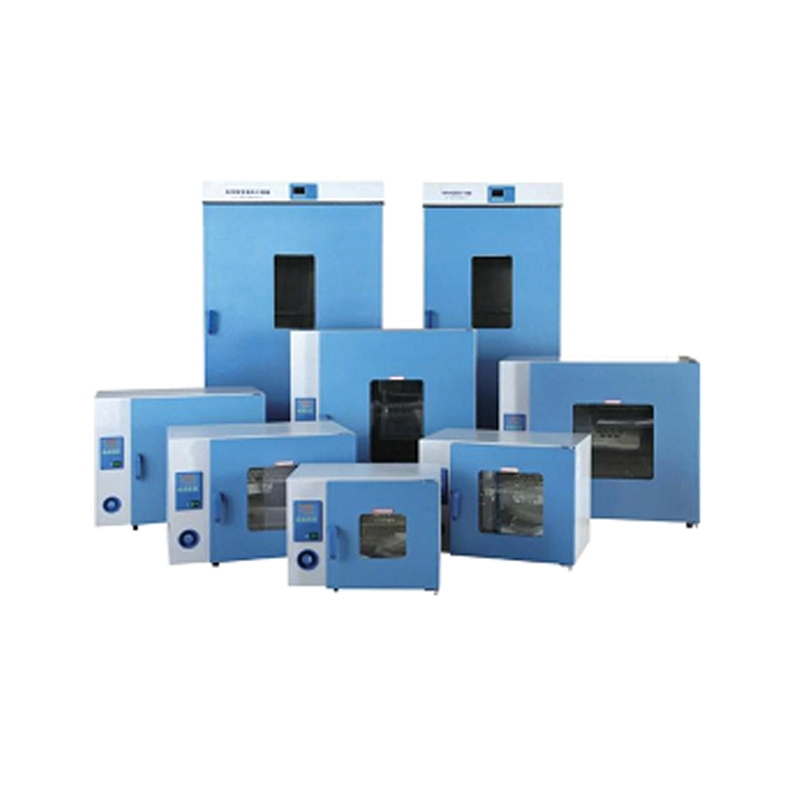

200℃ and 250℃ Lab Drying Oven GT-BM10A&B
Application
Provided for desiccation, torrefaction, wax-melting and sterilization in mining industry, laboratories and scientific research institutes.
Feature
- 1.304 stainless steel, mirror polishing processing, easy to clean and maintain.
- 2.PID controller with over temperature alarm and timing function ensures precise and reliable control.
- 3.Air circulation system with specific air flow channel ensures a good temperature uniformity performance.
- 4.Silicon door gasket with long lifetime, and easy to change.
- 5.A damper adjustment in the front ensures the gas convection enough in working chamber.
Product Parameters
Key Specification
Model | GT-BM10B-16 | GT-BM10B-30 | GT-BM10B-50 | GT-BM10B-80 | GT-BM10B-136 | GT-BM10B-220 | GT-BM10B-420 | GT-BM10B-620 | GT-BM10B-1000 |
Power Consumption | 500W | 850W | 1100W | 1550W | 2050W | 2450W | 3100W | 4000W | 5200W |
Chamber Volume | 16L | 30L | 50L | 80L | 136L | 220L | 420L | 620L | 1000L |
Interior Dimension (W×D×H)mm | 250×260×250 | 340×320×320 | 420x395x350 | 450×400×450 | 550×450×550 | 600×500×750 | 640×585×1355 | 840×600×1355 | 820×730×1600 |
Exterior Dimension (W×D×H)mm | 530×370×420 | 620×440×490 | 720x530x520 | 740×530×630 | 840×580×730 | 880×630×930 | 780×730×1780 | 980×800×1880 | 1050×890×2070 |
Shelves | 2(pcs) | 2(pcs) | 2(pcs) | 3(pcs) | 4(pcs) | ||||
Power Supply | 1phase 220V 50Hz | 3phases 380V , 50Hz | |||||||
Timing Range | 0~9999min | ||||||||
Temp. Range | RT+10℃ ~250℃ | ||||||||
Display Resolution | 0.1℃ | ||||||||
Temp. Stability | ±1℃ | ||||||||
Temp.uniformity | ±3%（at 100℃） | ||||||||
Ambient Temp. | +5~40℃ | ||||||||
Model | GT-BM10A-27 | GT-BM10A-56 | GT-BM10A-96 | GT-BM10A-140 | GT-BM10A-200 |
Power Consumption | 850W | 1000W | 1400W | 2000W | 2200W |
Chamber Volume | 27L | 56L | 96L | 140L | 200L |
nterior Dimension (W×D×H)mm | 320×300×355 | 400×330×415 | 450×430×505 | 520×500×575 | 570×560×640 |
Exterior Dimension (W×D×H)mm | 460×520×660 | 540×550×720 | 590×650×810 | 660×720×880 | 710×780×945 |
Shelves | 2(pcs) | 3(pcs) | |||
Electrical Requirement | 1phase 220V 50HZ | ||||
Temperature Range | RT+10 ～ 200℃ | ||||
Display Resolution | 0.1℃ | ||||
Temperature Stability | ±1℃ | ||||
Ambient Temperature | +5 ～ 35℃ | ||||
