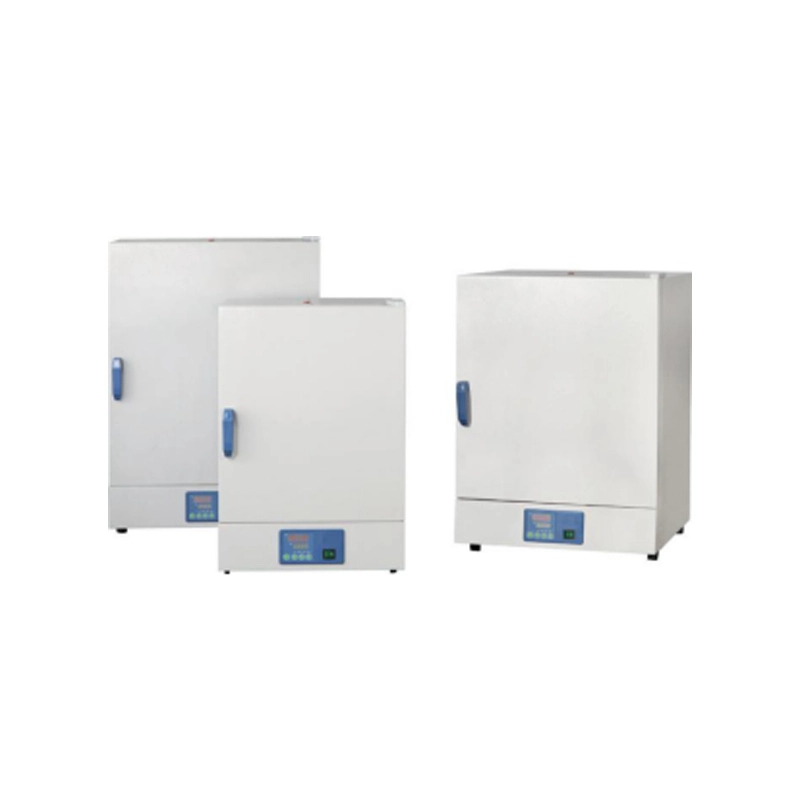

LED Microprocessor Controller 300℃ Drying Oven GT-BM10C
Application
Drying Oven provided for desiccation, torrefaction, wax-melting and sterilization in mining industry, laboratories and scientific research institutes.
Feature
- 1.laboratory drying oven 304 stainless steel, mirror polishing processing, easy to clean and maintain.
- 2.Drying Oven: Natural convection with low noise.
- 3.PID controller with over temperature alarm and timing function ensures precise and reliable control.
Option
- 1.Independent over-temperature alarm system ensures experiments running safely.
- 2.RS 485 connector can connect computer to save the data via software.
Product Parameters
Key Specification
Model | GT-BM10C-16 GT-BM10C-30 | GT-BM10C-50 | GT-BM10C-80 | GT-BM10C-136 | GT-BM10C-220 | GT-BM10C-420 | GT-BM10C-620 |
Power Consumption | 850W | 1100W | 1550W | 2050W | 2450W | 3100W | 4000W |
Chamber Volume | 16L/30L | 50L | 80L | 136L | 220L | 420L | 620L |
Internal Dimension (W×D×H)mm | 250×260×250 340×320×320 | 420×395×350 | 450×400×450 | 550×450×550 | 600×500×750 | 640×585×1355 | 840×600×1355 |
External Dimension (W×D×H)mm | 530×370×420 620×440×490 | 720×530×520 | 740×530×630 | 840×580×730 | 880×630×930 | 780×730×1780 | 980×800×1880 |
Shelves | 2(pcs) | 2(pcs) | 2(pcs) | 2(pcs) | 2(pcs) | 3(pcs) | 4(pcs) |
Electrical Requirements | 1phase 220V 50Hz | 3phases 380V 50Hz | |||||
Timing Range | 0~9999min | ||||||
Temperature Range | RT+10~300℃ | ||||||
Display Resolution | 0.1℃ | ||||||
Temperature Stability | ±1℃ | ||||||
Temperature uniformity | ±3%（at 100℃） | ||||||
Ambient Temperature | +5~40℃ | ||||||
