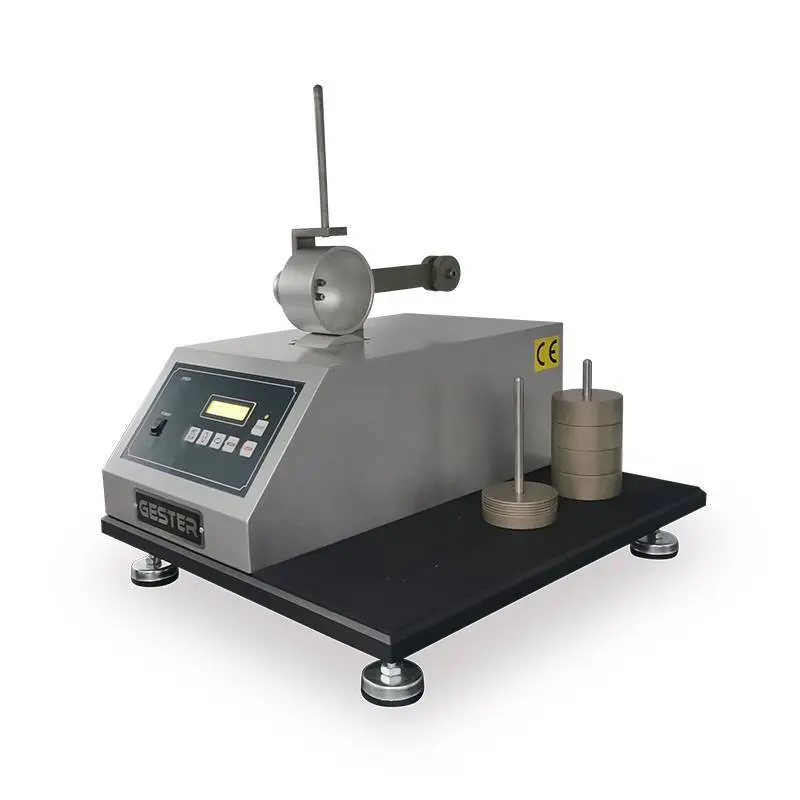

Hook and Loop Fastener Closing Tester GT-K20
Application
It is intended to press the two parts of the touch and close fastener together under controlled conditions, prior to determining the peel and shear strength.The equipment comprises basically a roller device with a roller of diameter 100±5 mm, capable of applying a force of 1.0 ± 0.1 N per millimeters width of the test specimen. This is to close the fastener under a standard known pressure.
Product Parameters
Key Specification
Model | GT-K20 |
Sample dimension | Length150mm, Width:20~50mm |
Upper idling drum | Diameter 100±5 mm |
Under driven drum | Diameter 100±5 mm |
Drum width | 50mm |
Test load | 1.0±0.1N/mm |
Power supply | 1∮AC 220V 50/60HZ |
Dimensions ( L x W x H ) | About 40 cm ×40 cm ×50 cm |
Weight | About 40kg |
Standards | DIN 3415, BS EN ISO 22776 , BS EN ISO 22777 SATRA TM123, GB/T3903.20, GB/T3903.21 |
Accessories
Standards accessories | 1set | Weights |
1pc | Power Line |
Product Details
