Hook Loop Fastener Fatigue Testing Machine LCD Touch Control GT-K19
Application
It is applicable for repeatedly open and close motion for touch and close fasteners and velcro tapes.
Principle
Install the hook and annular respectively on two rollers of this device. Stick them together under certain load and to generate repeated opening and closing motion through a certain times of forward and reversal rotating. After that, remove the sample and determine its peeling and shear strength testing on tensile tester.
Product Parameters
Key Specification
Model | GT-K19 |
Control method | LCD Touch screen controlled |
Sample dimension | Length 540±10mm, width: 20~50mm |
Upper idling drum | Diameter 162.5±0.5mm |
Under driven drum | Diameter 160±0.5mm |
Drum width | 70mm |
Clamp slot | Width 4mm, length 55±2mm |
Test speed | 60±5r/min |
Reversal intervals | 30±5 s |
Test load | 1±0.1N/mm |
Test times | 5000 rpm |
Power supply | 1∮AC 220V 50/60HZ |
Dimensions( L x W x H ) | 55 cm ×45 cm ×65 cm |
Weight | 55kg |
Standards | DIN 3415, BS EN ISO 22776, BS EN ISO 22777 SATRA TM123, GB/T3903.20, GB/T3903.21,GB/T 23315 |
Standard Accessories
10N Weights | 1 pc | To exert load on rotating wheel |
20N Weights | 1 pc | To exert load on rotating wheel |
Power Line | 1 pc | Current transport |
Optional Accessories
Press Roller | Optional | Diameter 100 mm |
Universal Tensile Tester | Optional | Peeling and shear strength test |

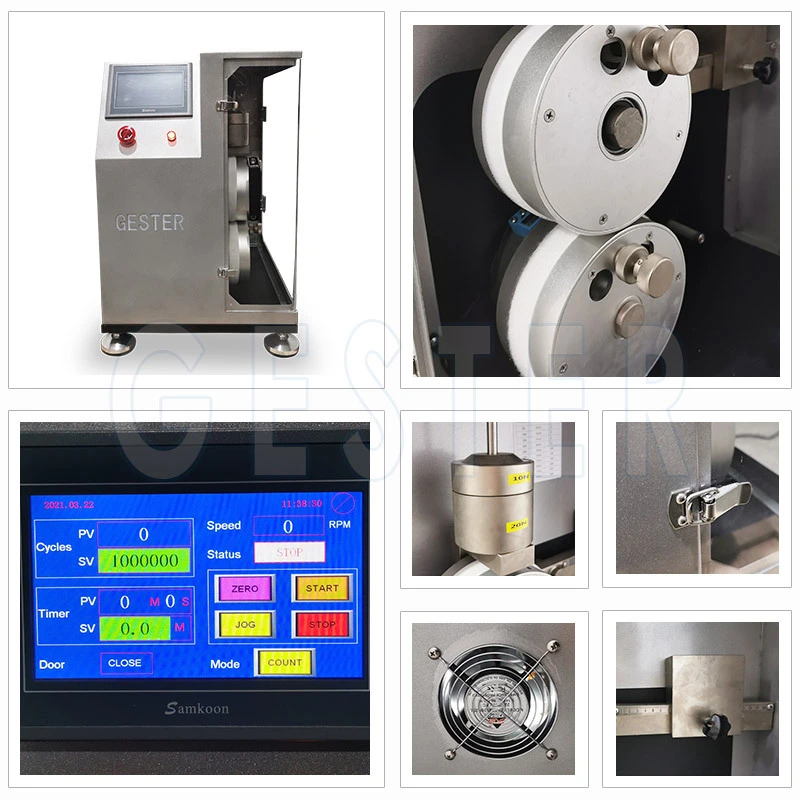

Product Details
