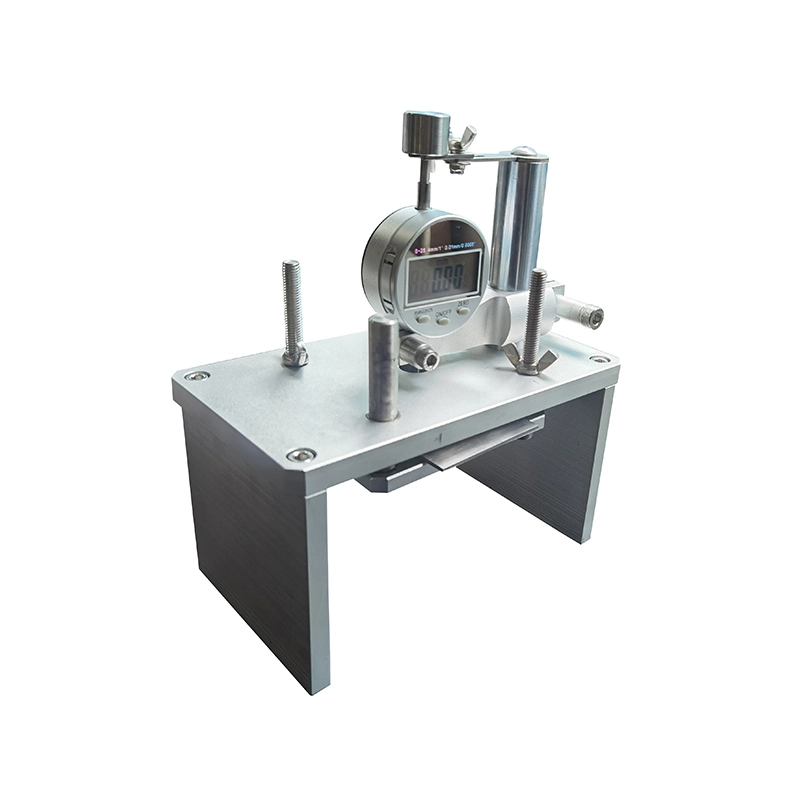

IS 7554 Height Gauge GT-KB30
The height gauge includes:
A. A flat plate equipped with a clamping ring that meets the required specifications and has a treated lower surface.
B. A hole located at the center of the plate, with a diameter smaller than the clamping ring but large enough to allow the thickness gauge spindle to move freely through it.
C. A thickness gauge that:
1. Features a spindle with a spherical lower surface having a radius of 1.5 ± 0.2 mm;
2. Applies a force of 0.55 ± 0.10 N to the spindle;
3. Can measure with an accuracy of 0.05 mm;
4. Is positioned so that the spindle passes vertically through the hole in the flat plate.
Key Specification
Model | GT-KB30 |
Material | Steel |
Dimensions（W×D×H） | About 150 ´ 150 ´ 200 mm |
Weight | About 10kg |
Standards | IS 7554-2009 Annex A-1.14, 1.15; IS 15844-1-2023 Section 4.10 |
