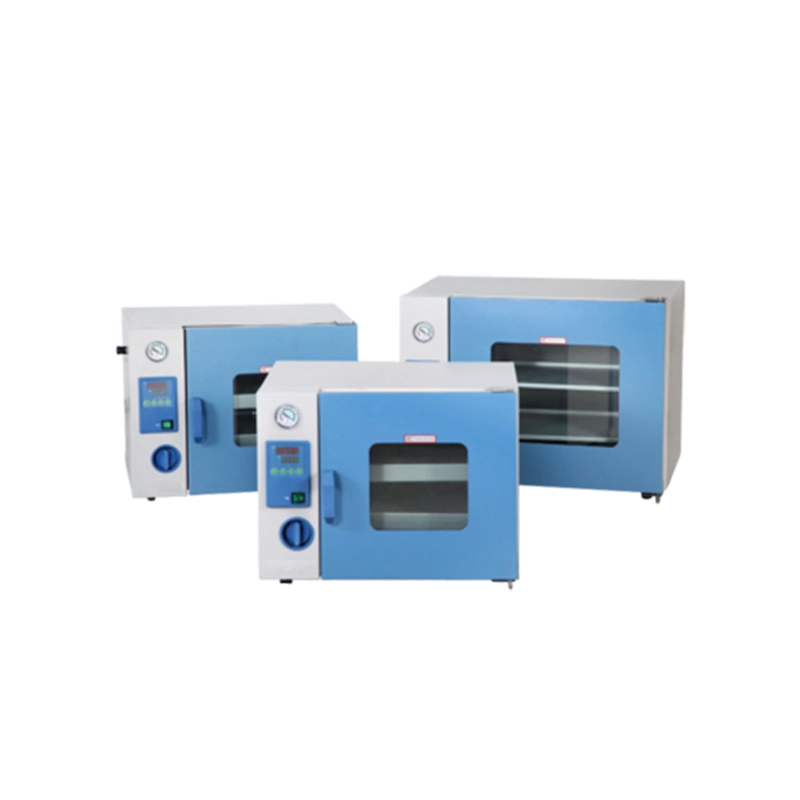

Lab Vacuum Oven Manufacturers GT-BM12
Application
Lab Vacuum oven is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily. It can be filled with inert gases, which is especially for a rapid drying of some compound material.
Feature
- 1.304 stainless steel, mirror polishing processing, easy to clean and maintain.
- 2.PID controller with over temperature alarm and timing function ensures precise and reliable control, also save more than 40% heating time.
- 3.A big dual layer tempered glass on the door provides good observation.
- 4.Door adjustment system with silicon door gasket ensures better vacuity.
Product Parameters
Key Specification
Model | GT-BM12-10 | GT-BM12-24 | GT-BM12-50 | GT-BM12-30 (Special for chemistry) | GT-BM12-90 | GT-BM12-125 | GT-BM12-216 | GT-BM12-30 GT-BM12-50 (Special for biology) |
Electrical Requirement | AC220V 50HZ | |||||||
Controller | LED display | |||||||
Power Consumption | 400W | 700W | 1450W | 550W 850W 850W | 870W | 1500W | 1550W | 300W 650W |
Temperature Range | RT+10~200℃ | RT+10~65℃ | ||||||
Display Resolution | 0.1℃ | |||||||
Temperature Stability | ±1℃ | |||||||
Vacuum Degree | 133Pa | |||||||
Ambient Temperature | +5~40℃ | |||||||
Chamber Volume
| 10L | 24L | 50L | 30L | 90L | 125L | 216L | 30L/50L |
Interior Dimension (W×D×H, mm) | 220×210×220 | 300×300×275 | 415×370×34 | 320×320×300 | 450×450×450 | 500×500×500 | 600×600×600 | 320x320x300 415x370x345 |
Exterior Dimension (W×D×H, mm) | 500×375×410 | 605×490×450 | 730×560×550 | 630×510×490 | 740×610×591 | 790×660×641 | 890×760×741 | 610x510x490 730x560x550 |
Shelves | 2(pcs) | 1(pcs) 2(pcs) 4(pcs) | 2(pcs) 3(pcs) 5(pcs) 6(pcs) | 1(pcs) 2(pcs) 4(pcs) | 2(pcs) 4(pcs) 6(pcs) | 3(pcs)-Independent temp. control 6(pcs)
| 1(pcs) 2(pcs) 5(pcs) | |
Chamber Material | 304 Stainless steel | 316 SS | 304 Stainless steel | |||||
