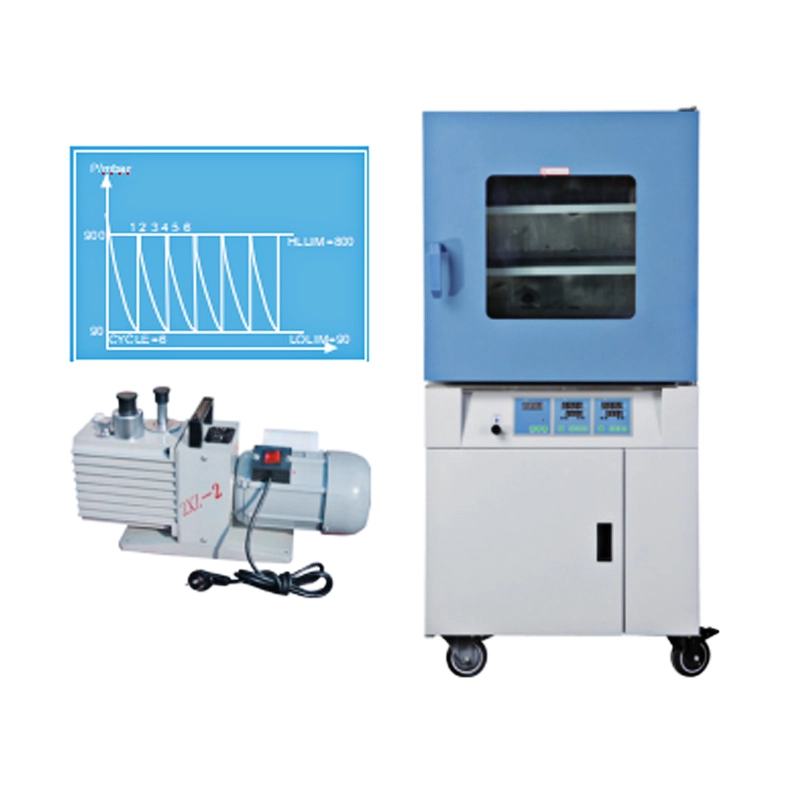

Microprocessor controller LCD Vacuum Oven GT-BM13C
Vacuum degree Control:
Vacuum oven adopts the digital technique of simulated engineering to control vacuum degree.
The vacuum degree controlled by full-automatic electromagnetism valve which make the degree control more exact.
Vacuum control rang: 20Pa ~9999Pa Vacuum display rang: 1Pa ~9999Pa Vacuum accuracy: 1Pa
Vacuum Oven Features:
●Programmable vacuum cycle.
●LCD vacuum degree window.
●Suitable for drying thermo-sensitive material.
●Shorter drying time for sample that does not dry easily.
●Dual layer tempered glass door for clear observation.
●Fully automatic electromagnetism controlled vacuum.
●Minimum heating time 50% less than traditional vacuum oven.
Product Parameters
Key Specification
Model | GT-BM13C-913 | GT-BM13C-413 | GT-BM13C-215 | GT-BM13C-125 | GT-BM13C-90 | GT-BM13C-63 | GT-BM13C-33 |
Electrical Requirement | AC380V 50HZ | AC220 50HZ | |||||
Temperature Range | RT+10~200℃ | ||||||
Display Resolution | 0.1℃ | ||||||
Temperature Stability | ±1℃ | ||||||
Vacuum Gauge | Digital Display | ||||||
Vacuum Degree | 133Pa | ||||||
Vacuum Sensor | Resistance silicon tube pressure sensor | ||||||
Vacuum Control Range | 10~105Pa | ||||||
Power Consumption | 5600W | 3800W | 2100W | 2050W | 1350W | 1800W | 1200W |
Interior Dimension (W×D×H, mm) |
750×1160×1050 |
630×810×845 |
560×600×640 |
500×500×500 |
450×450×450 |
400×400×400 |
320×320×320 |
Exterior Dimension (W×D×H, mm) |
1400×1395×2010 |
1000×1040×1855 |
720×820×1750 |
660×640×1400 |
610×590×1350 |
600×570×1390 |
550×490×1240 |
Shelves | 5pcs (Independent temperature control) | 4 pcs (Independent temperature control) | 3 pcs (Independent temperature control) | 3pcs | 2pcs (Independent temperature control) | 3pcs | 2pcs |
Chamber Material | 304 Stainless steel | ||||||
