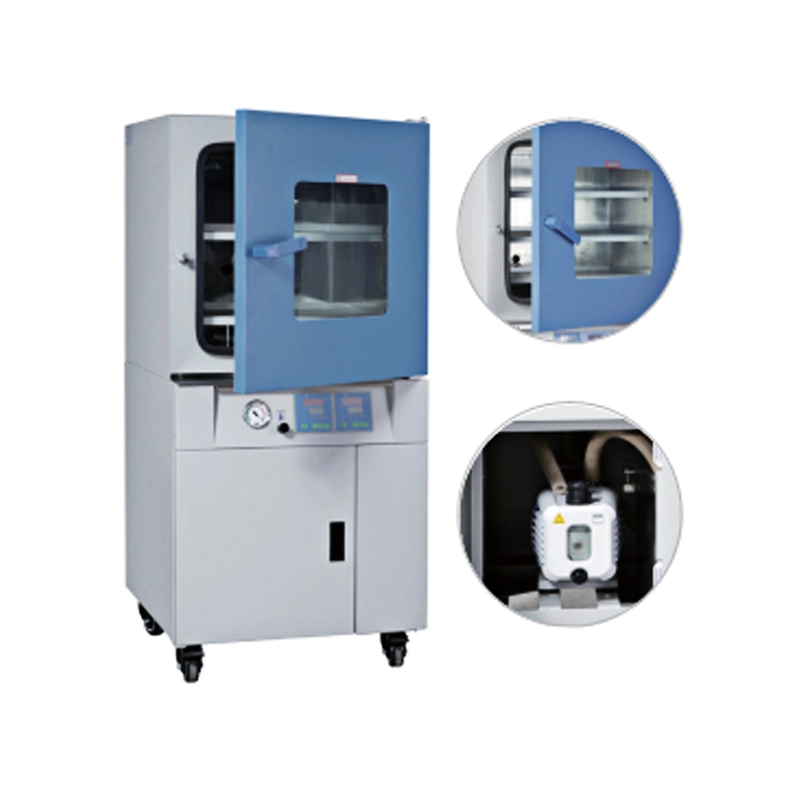

Programmability controller LCD Vacuum Oven With Vacuum Pump GT-BM13B
Application
Vacuum oven is designed especially for drying of material which is thermo-sensitive or decompounds and oxidative easily. It can be filled with inert gases, which is especially for a rapid drying of some compound material.
Feature
●Vacuum Oven With Pump Microprocessor controller.
●Vacuum Oven With Vacuum Pump Dual layer tempered glass door for clear observation.
●Minimum heating time 50% less than traditional vacuum oven.
●Interior chamber made from stainless steel with a mirror polished finish making for easy cleaning.
●Standard with vacuum pump.
●Provides programmability for 7 periods and 9 steps for each period making for a total of 63 programmable step.
Product Parameters
Key Specification
Model | GT-BM13B-913 | GT-BM13B-431 | GT-BM13B-197 | GT-BM-13B-125 | GT-BM13B-63 | GT-BM13B-33 |
Electrical Requirement | AC380V 50HZ | AC220V 50HZ | ||||
Controller | LCD Programmability controller | |||||
Power Consumption | 5600W | 3800W | 2100W | 2050W | 1800W | 1200W |
Temperature Range | RT+10 ～ 200℃ | |||||
Display Resolution | 0.1 | |||||
Temperature Stability | ±1℃ | |||||
Vacuum Degree | 133Pa | |||||
Ambient Temperature | +5~40℃ | |||||
Chamber Volume | 913L | 431L | 197L | 125L | 63L | 33L |
Interior Dimension (W×D×H) mm |
750×1160×1050 |
630×810×845 |
540×575×635 |
500×500×500 |
400×400×400 |
320×320×320 |
Exterior Dimension (W×D×H) mm |
1400×1395×2010 |
790×1030×1855 |
720×740×1530 |
660×640×1400 |
600×570×1390 |
550×490×1240 |
Shelves | 5pcs (Independent temp. control) | 4pcs (Independent temp. control) |
3pcs |
3pcs |
3pcs |
2pcs |
Chamber Material | 304 Stainless steel | |||||
