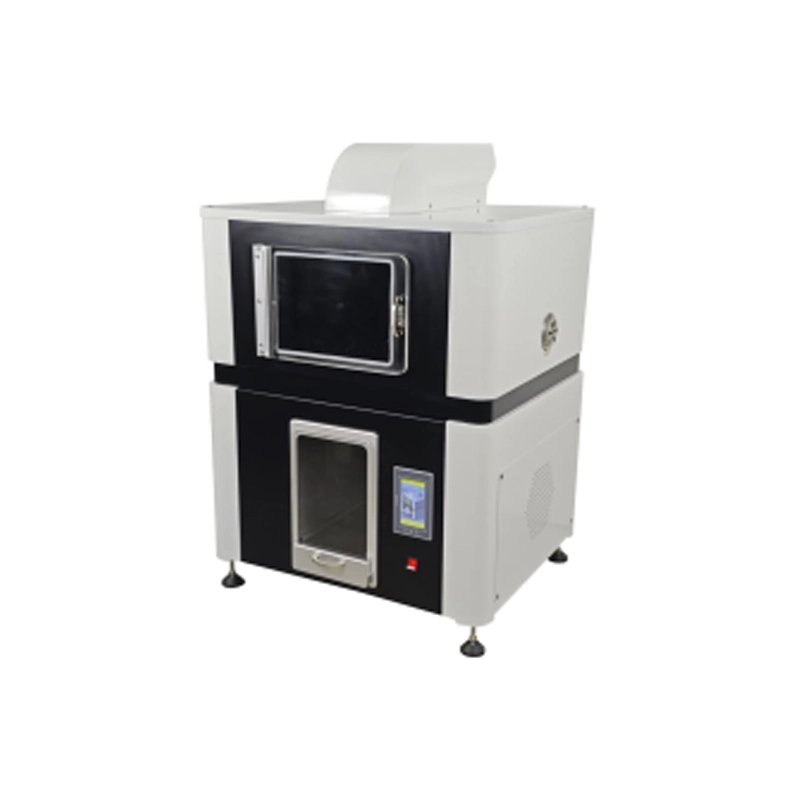

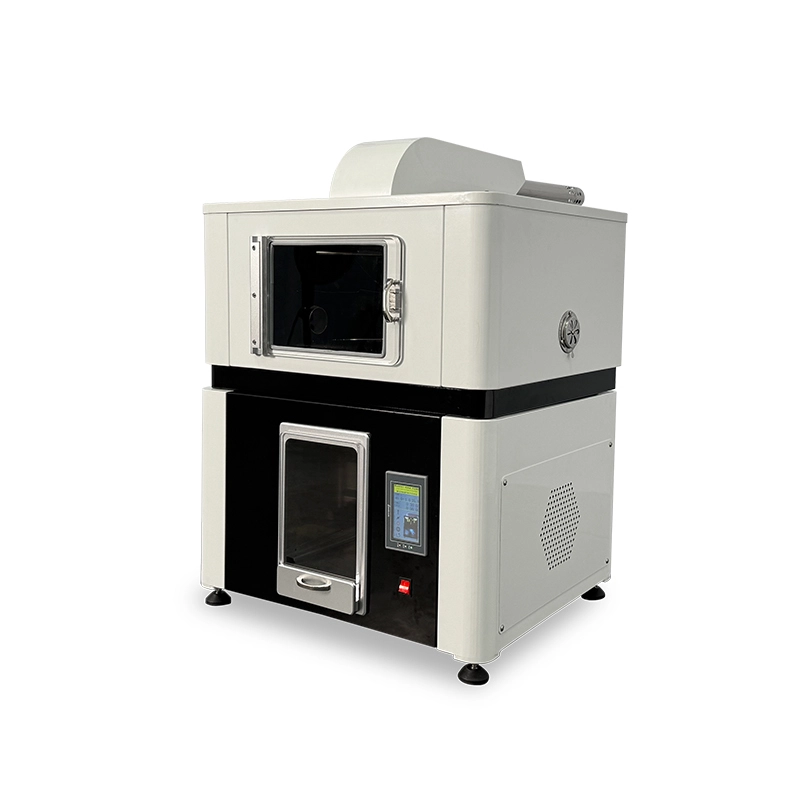

Laboratory Gas Fume Chamber GT-C49
Brief Introduction of the product
Laboratory Gas Fume Chamber GT-C49 to determine the colorfastness of of textiles of all kinds and in all forms when exposed to atmospheric oxides of nitrogen as derived from the combustion of natural gas.
Test Principle
Put sample fabrics and control specimen into chamber, stop the test until the color of control specimen changes to the fading color as standard fading required. And compare with grey scale for color assessment. If without color changes after one test cycle, continue to test specified testing times or the testing cycle which will be able to change color.
Key Specification
Model | GT-C49 |
Speed of Swivel Mount | 2~3 r/min |
Test Chamber | Diameter of the inner circle: 500mm |
Specimen Installing Pole | 6pcs |
Test Temperature | ≤60℃ |
Size of Specimen | 40x100mm |
Control Method | Touch Screen |
Combustion gas | Chemically pure butane gas or artificial city gas |
Dimensions | 700 x 660 x 950mm ( L x W x H ) |
Weight | ≈90kg |
Power Supply | 1∮ AC 220V 50Hz 3A |
Standards | AATCC 23, ISO 105-G02, GB/T 11039.2 |
Accessories
Standards accessories | 12pcs | Pinch Cock |
| 1pc | Exhaust Pipe |
| 1pc | Anti - backflow Air Duct |
Product Details
Made of high-grade, corrosion-resistant materials to ensure long-term durability.
