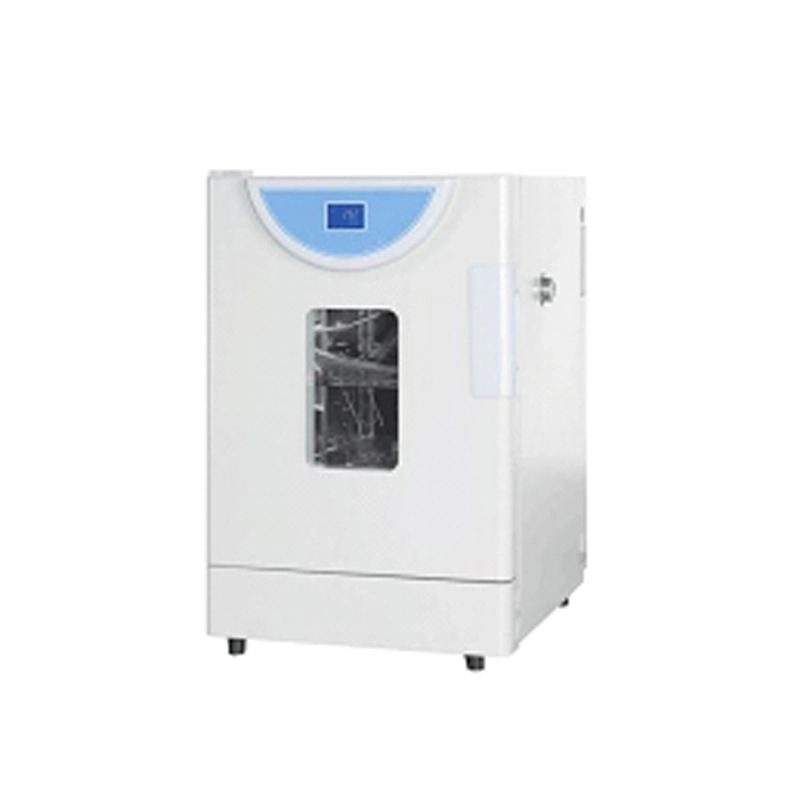

Laboratory Heating Incubator with timing function GT-BM03B
Features
●Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.
●Auto-controller of fan speed to prevent damage to the samples.
●Large LCD screen to display more data at same time.
●Self-check function easy to identify problems.
●Over temperature and temperature difference alarms.
●There is a 25mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement.
●Programmable controller: 7 periods 63 steps, 0 ～ 5999mins for each periods, fan speed 0
to 100% adjustable.
●Independent audible and visible temperature-limiting alarm system ensures experiments run safely.
●RS485 connector can connect computer and printer to record the parameters and the variations of temperature.(Option)
Product Parameters
Key Specification
Model | GT-BM03B-42 | GT-BM03B-66 | GT-BM03B-142 | GT-BM03B-243 | GT-BM03B-400 |
Power Consumption | 250W | 250W | 500W | 600W | 1200W |
Chanber Volume | 42L | 66L | 142L | 243L | 400L |
Interior Dimension(W×D×H)mm | 350×300×400 | 400×320×550 | 500×380×750 | 600×450×900 | 1000×510×800 |
Exterio Dimension(W×D×H)mm | 505×635×600 | 550×660×750 | 655×715×980 | 755×785×1130 | 1140×850×1080 |
Shelves | 2(pcs) | ||||
Controller | LCD Programmable controller | ||||
Timing Range | 0~5999min | ||||
Temperature Range | RT+5℃ ~80℃ | ||||
Display Resolution | 0.1℃ | ||||
Temperature Stability | ±0.2℃ | ||||
Temperature Uniformity | ±1.5(at 37℃ ) | ||||
Ambient Temperature | +5~35℃ | ||||
Electrical Requirement | 1Phase 220V 50HZ | ||||
