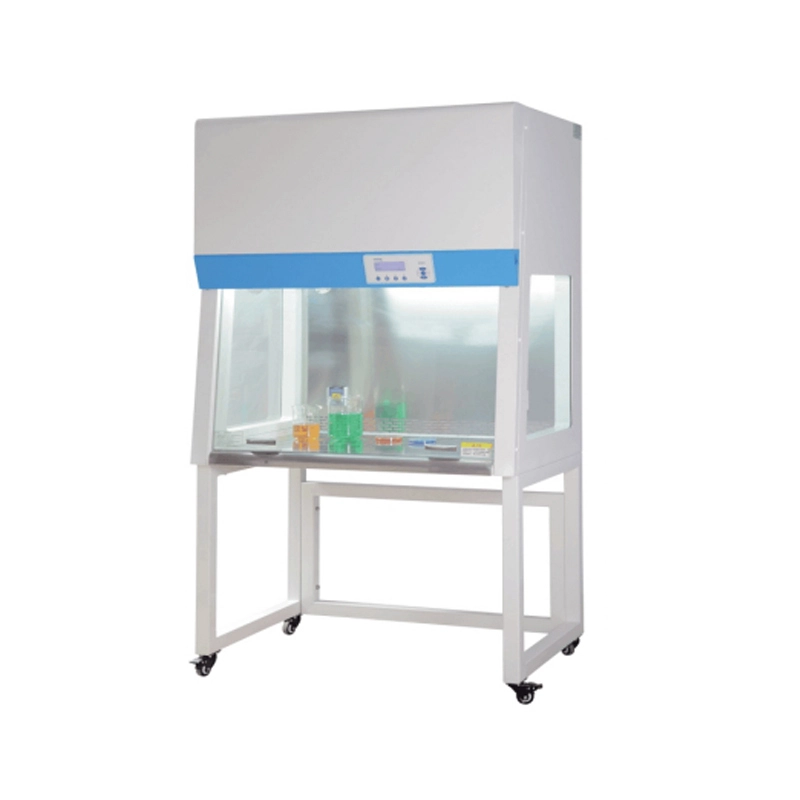

Laboratory clean bench GT-BM31
Application
This Clean Bench provides a dust-free and sterile local air purification working environment, which is widely used in the research of electronic technology, aerospace, precision instruments, meters, fine chemicals, food, etc.
Laboratory clean bench vertical laminar flow hood uses a fan system with adjustable air volume. By adjusting the working conditions of the fan, the average wind speed in the working area is kept within the rated range, which effectively extends the service life of the high-efficiency filter.
Clean Bench Feature
- 1.Reservation on / off control for fan & UV light
- 2. Vertical Flow Clean Bench High quality, quiet fan
- 3.Universal electrical outlet
- 4.An additional pre filter below work surface helps capture large particles and prolongs HEPA filter life
- 5.Stable laminar air flow, from 0.30m/s to 0.50m/s
- 6.Realtime display air speed, time and the status of HEPA filter
- 7.Cumulative running time of HEPA filter
- 8.Power socket installed inside for ease power access
- 9.Audio and visual alarm for filter failure
- 10.Access password
- 11.Interlocking control between Ultraviolet ray light and interior light
Product Parameters
Key Specification
Spec/Model | GT-BM31-1 | GT-BM31-2 | GT-BM31-3 | GT-BM31-4 |
Num. of operator | one people one side | one people one side | two people one side | three people one side |
Laminar Flow | Vertical | |||
Cleanliness | ISO class 5, ISO-14644-1 | |||
CFU | ≤0.5/Dish*h (φ90mm petri dish) | |||
Air Velocity | 0.30 ～ 0.50m/s | |||
Noise | ≤62dB | |||
Vibration | ≤3μm | ≤4μm | ≤3μm | ≤4μm |
Illumination | ≥900Lx | |||
Power input | AC220V/50Hz | |||
Peak power | 700VA | 1000VA | 1000VA | 1300VA |
Internal Work Area W x D x H(mm) | 920×650×645 | 1220×650×645 | 1520×650×645 | 1820×650×645 |
External Dimensions W x D x H(mm) | 1040×720×1950 | 1340×720×1950 | 1640×720×1950 | 1940×720×1950 |
