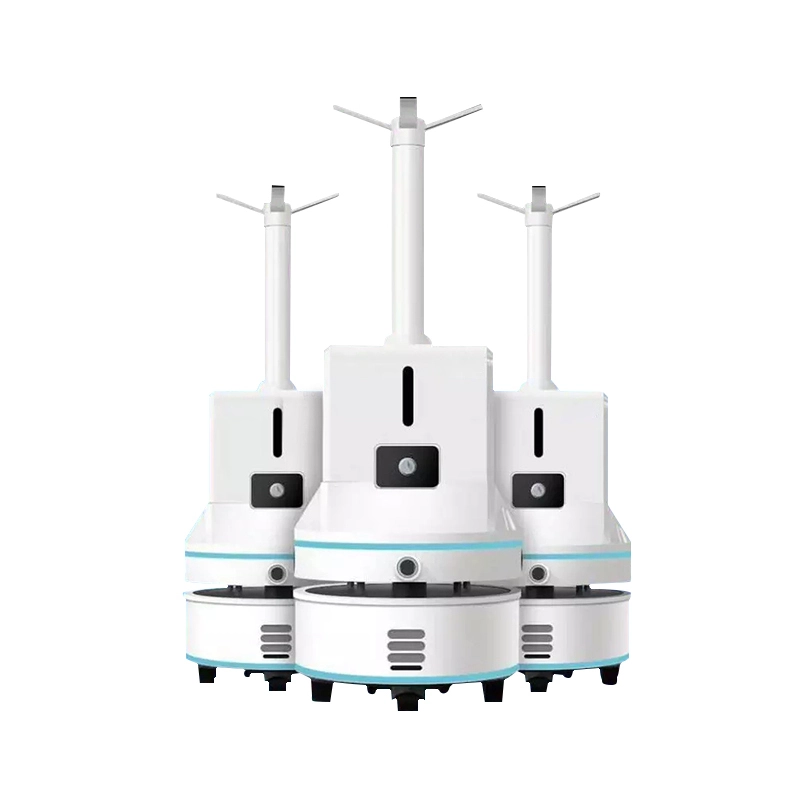

Intelligent Atomization Disinfection Robot GT-R800

    oops...!

    no product data.

    Go to homepage

    Application

    The atomizing disinfection robot is by quickly atomizing the disinfectant and automatically spraying into the disinfection area to get the air effectively purified. Using 100mg/L hypochlorous acid disinfectant, according to the amount of 5ml/m3, continue to spray evenly into the space to disinfect.disinfection robot can be widely used in hospitals, airports, office buildings, shopping malls, schools, factories and other public places.

    Feature

    1. 1.Support the use of disinfectants such as hydrogen peroxide, sodium hypochlorite, and peracetic acid.
      2.The large-capacity 16L disinfectant tank can continuously disinfect for more than 5 ~ 6 hours, and the disinfection coverage is up to 4000 ~ 5000 m2.
      3.Support APP control, no-touch automated disinfection greatly improve the safety of use in the disinfection process.
      4.Two disinfection modes: timed disinfection and immediate disinfection.
      5.With autonomous navigation function, lidar obstacle avoidance, can fully cover the required area.
      6.Support automatic return to charge, human assistance isn’t required.
      7.When the disinfectant is below the warning position, it will return to the waiting area and turn off the spray device automatically.

    Intelligent Atomization Disinfection Robot GT-R800 2

    Product Parameters

    Key Specification

    Model

    GT-R800

    External Size(mm)

    φ500*1335

    Atomization Efficiency

    2L~3L/H(adjustable)

    Disinfectant Capacity

    16L

    Spray Diameter

    5-6m

    Disinfection Medium

    Hypochlorous acid,Chlorine dioxide,Hydrogen peroxide,Peroxyacetic acid, etc.

    Spray Method

    Four-direction spray, large opening spray(optional)

    Moving Way

    Autonomous path planning and automatic navigation

    Moving Speed

    0~0.6m/s

    Power Supply

    AC220±10%V 50Hz

    Consumption

    150W

    Drive Method

    Differential drive

    Ability to Cross Obstacles

    ±10mm

    Gradeability

    ≤8°

    Driving Channel Width

    ≥700mm

    Noise

    ≤50dB

    Operating Time

    5~6h

    Battery

    Lithium battery 28AH 24V

    Charging Time

    3~4h

    Safety System

    Lidar obstacle avoidance, power-off protection of disinfectant shortage

    Package Size

    Main Body

    415*415*633mm

    Chassis

    614*614*750mm

    Gross Weight

    Main Body

    8.2kg

    Chassis

    70.4kg
