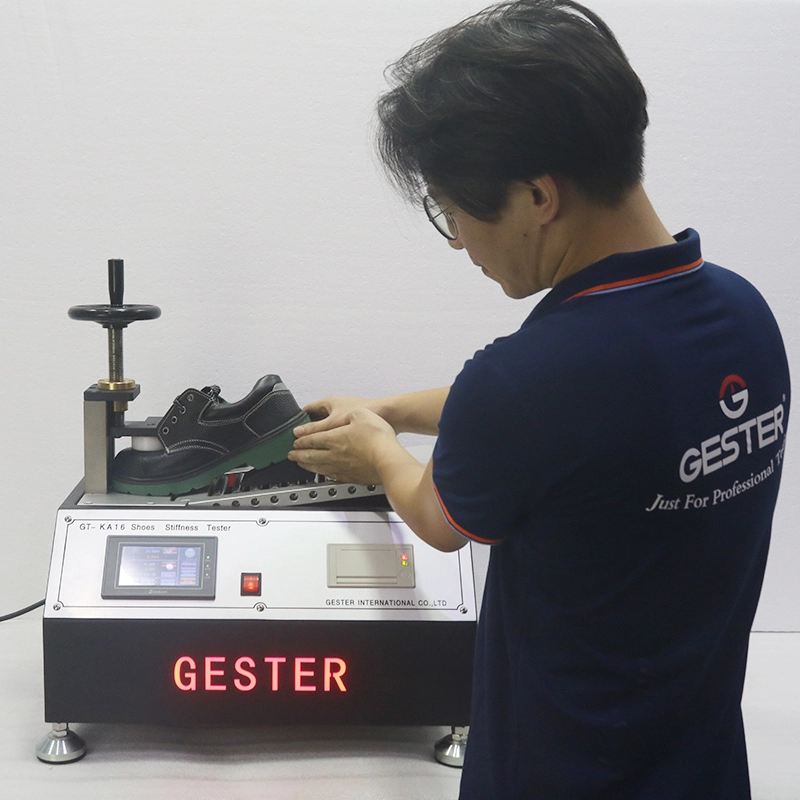

LCD Control Shoes Bending Stiffness Tester GT-KA16
Application
To measure bending resistance of whole shoes (France shoe Size 39, 42,and British shoe Size 6,Size 8). Clamp the forepart of footwear (confirming to 1/3 of palm shoes, located on shaft location), after motor launching, driving to pulley, to make shaft drive the turning board at 100mm/min to impose the strength of 30N to shoes in order to do test.
Feature
- 1.LCD control, easy operate, and display results digitally.
2.Shoes Bending Stiffness Tester Equip with a decoder on shaft, and inducting angle speed of turning board, showing the value through the display with accuracy of 0.1°
Product Parameters
Model | GT-KA16 |
Capacity | 200 N |
Bending speed | 100mm/min (adjustable) |
Sample size | French standard: Size 39, 42 ; British standard : Size 6, 8 |
Test load | 30 N |
Bending position | 1/3 of shoes |
Angle resolution | 0.1° |
Force resolution | 1/50000 |
Measurement method | Fixed fore to display angle Fixed angle to display force |
Power | 1∮AC 220V 50/60HZ 3A |
Dimension (W×D×H) | 50×45×53 cm |
Weights | 40kg |
Standards | GB/T 20991 section 8.4.1 ISO 20344-2021 section 8.4.1 AS/NZS 2210.2 section 8.4.1 ISO 17707 section 4.2/T 20991 section 8.4.1 |
Standards accessories | 1PC Power Line |
