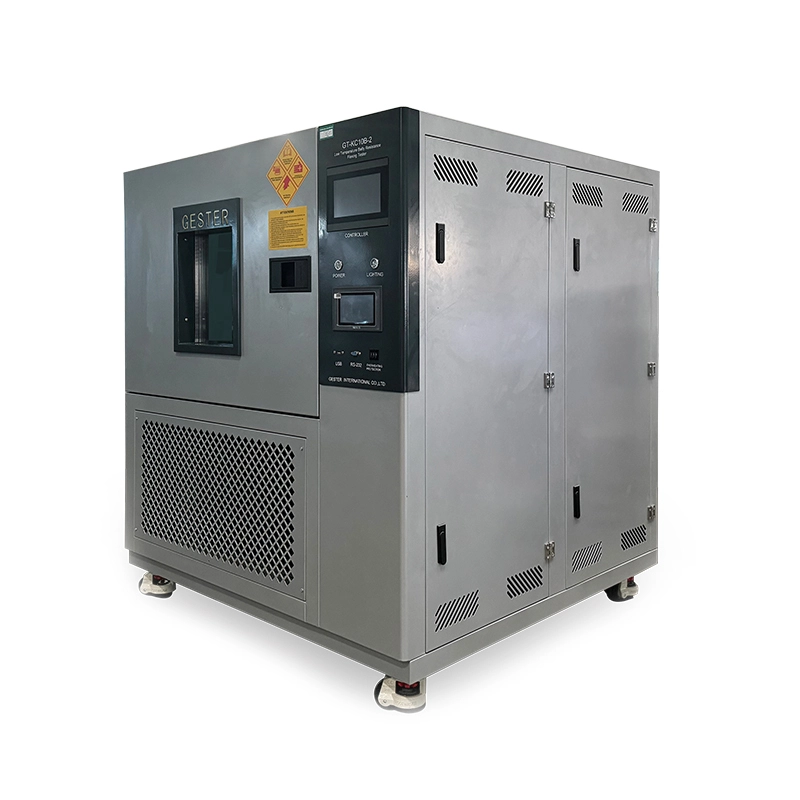

Low Temperature Bally Resistance Flexing Tester GT-KC10B
Low Temperature Bally Resistance Flexing Tester
Product Description
Application:
Bally Resistance Flexing Tester is used to determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.
Low Temperature Bally Flexing Tester Key Specifications
Our specialists can help you find the perfect Low Temperature Bally Flexing Tester for you.
| Model | GT-KC10B-1 | GT-KC10B-2 | |
| Flexing Parameters | Position | 12Sets | 24Sets |
| Flexing Angle | 22.5° ± 0.5° | ||
| Flexing Speed | 100 ± 5 cycles / flexes per minute | ||
| Counter | LCD 0 - 999,999.( Adjustment) | ||
| Sample Size | 70 ± 5 x 45 ± 5 mm | ||
| Control System |
Touch Screen Programmable Microprocessor Control | ||
| Temperature Range | -40~100℃ | ||
| Inside Chamber Capacity |
150L | 225L | |
| Chamber Material |
SUS # 304 Stainless Steel and Painted | ||
| Power Supply |
1∮AC220V 50/60HZ | ||
| Weight |
360kg | 420kg | |
Low Temperature Bally Flexing Tester
Features
- Materials of outer chamber: 2mm Double-sided color coated steel with power coated surface.
- Materials of inner chamber: using SUS304 stainless steel, seamless welded. Beside, the outer structure of the inner chamber is reinforced with 10mm steel plates to meet the structural strength requirements of the bending test.
- Low Temperature Bally Resistance Flexing Tester With vacuum glass observation window, more effective to observe the testing situation.
- Temperature control: adopt 7inch color touch screen with Chinese and English version, easy to operate.
- Low Temperature Bally Resistance Flexing Tester Equipped with 2 sets of mechanical compressor, two-stage compression refrigeration cycle can quick cooling up to specified inner temperature in the case of various fixture group.
- The flexing system has separate controller with function of power off memory and automatically stop when test done.
- All the testing fixtures are made of SUS304 stainless steel or aluminum, have a good corrosion resistance and anti-rust property.
Bally Flexing Tester
Principle
The test specimen is folded in half then one end is secured in a clamp. The test specimen is then turned inside out and the free end secured in a second clamp at 90 degrees to the first. The first clamp is repeatedly oscillated through a fixed angle at a defined rate causing the test specimen to flex. At set intervals the number of flexing cycles is recorded and the damage to the test specimen is visually assessed. The test can be carried out with wet or dry test specimens at ambient or sub-zero temperatures.
Product Details
Equipped with A type of upper grips.
SATRA TM 55; IULTCS/IUP 20-1; ISO 17694 ; EN 13512 ; EN344-1 section 5.13.1.3 and annex C;
EN ISO 20344 section 6.6.2.8; GB/T20991 section 6.6.2.8; AS/NZS 2210.2 section 6.6.2.8;
JIS-K6545; BS 3144 Clause 13
Equipped with B type of upper grips
ISO 32100 ; DIN53351; GE-24;ASTM D 6182; EN ISO 20344-2020 section 6.6.3
