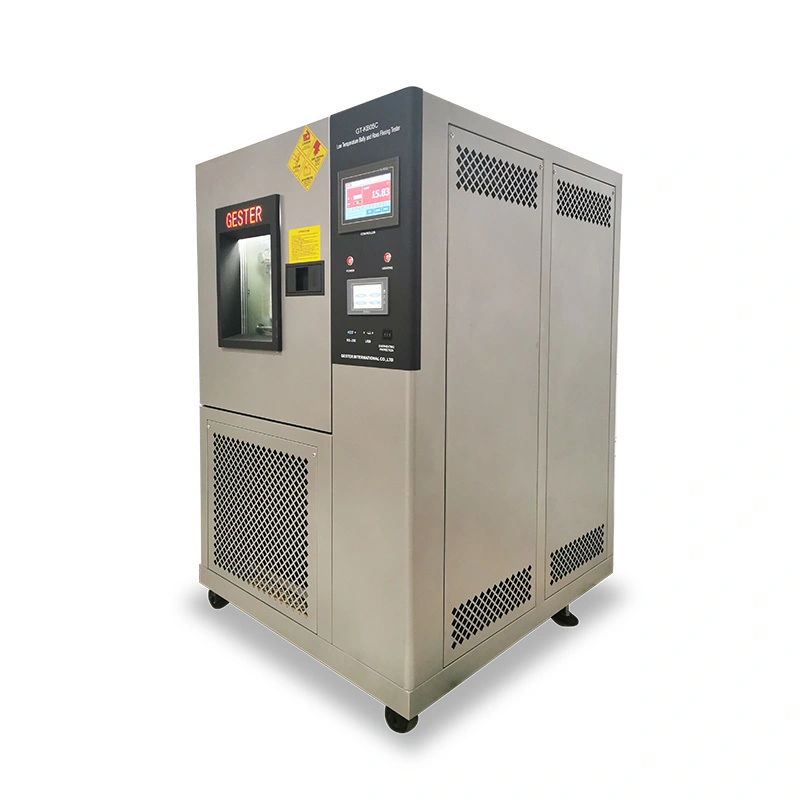

Low Temperature Bally&ROSS Resistance Flexing Tester GT-KB05C
Application
Low Temperature Bally&ROSS Resistance Flexing Tester GT-KB05C to determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.
Feature
- 1. Materials of outer chamber: 2mm Double-sided color coated steel with power coated surface.
2. Materials of inner chamber: using SUS304 stainless steel, seamless welded. Beside, the outer structure of the inner chamber is reinforced with 10mm steel plates to meet the structural strength requirements of the bending test.
3. With vacuum glass observation window, more effective to observe the testing situation.
4. Temperature control: adopt 7inch color touch screen with Chinese and English version, easy to operate.
5. Equipped with 2 sets of mechanical compressor, two-stage compression refrigeration cycle can quick cooling up to specified inner temperature in the case of various fixture groups.
6. The flexing system has separate controller with function of power off memory and automatically stop when test done.
7. All the testing fixtures are made of SUS304 stainless steel or aluminum, have a good corrosion resistance and anti-rust property.
Product Parameters
Key Specification
Model | GT-KB05C | ||
Flexing Parameters | Types of Test Grips | ROSS flexing | Bally flexing |
Number of Position | 5Sets | 10Sets | |
Flexing Speed | 60cpm | 100cpm | |
Bending Angle | 90° | 22.5° | |
Counter | Touch Screen, 0 - 999,999.( Adjustment) | ||
Control System | Touch Screen Programmable Microprocessor Control | ||
Temperature Range | -40~100℃ | ||
Inside Chamber Capacity | 150L | ||
Chamber Material | SUS # 304 Stainless Steel and Painted | ||
Power Supply | 1∮AC220V 50/60HZ | ||
Weight | about 420kg | ||
Standards
For Bally Flexing Resistance Test | |
SATRA TM 55; IULTCS/IUP 20-1; ISO5402-1; ISO 17694 ; EN 13512 ; EN344-1 section 5.13.1.3 and annex C; EN ISO 20344 section 6.6.2.8; GB/T20991 section 6.6.2.8; AS/NZS 2210.2 section 6.6.2.8; JIS-K6545;BS 3144 Clause 13 | Equipped with A type of upper grips. |
ISO 32100 ; DIN53351; GE-24;ASTM D 6182, 20344-2021 section 6.6.3; | Equipped with B type of upper grips. |
For ROSS Flexing Test | |
ASTM D1052, SATRA TM60, BS5131 : 2.1,GB 20265, ISO 5423, HG/T2411, ISO4643, EN ISO 20344-2021 section 8.7, 8.8.4 | |
Accessories
Standards Accessories | 1pc | Chisel cutter (2mm) |
1pc | Chisel cutter (2.5mm) for ASTM D1052 | |
Optional Accessories | Optional | GT-KD20 Pneumatic Sample Cutting Machine (Cutter: 70 ± 5 x 45 ± 5 mm) |
