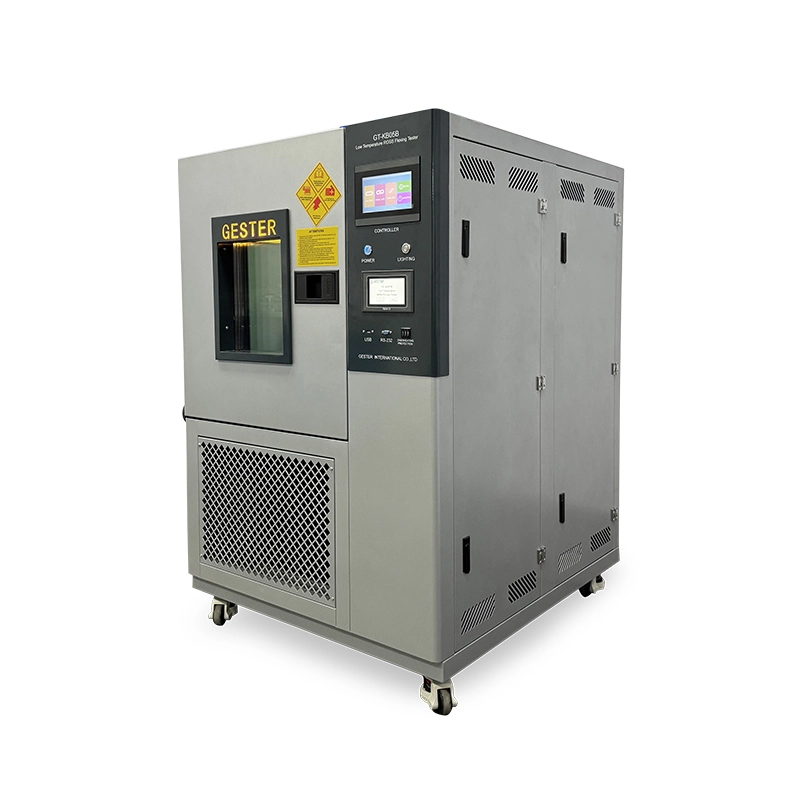

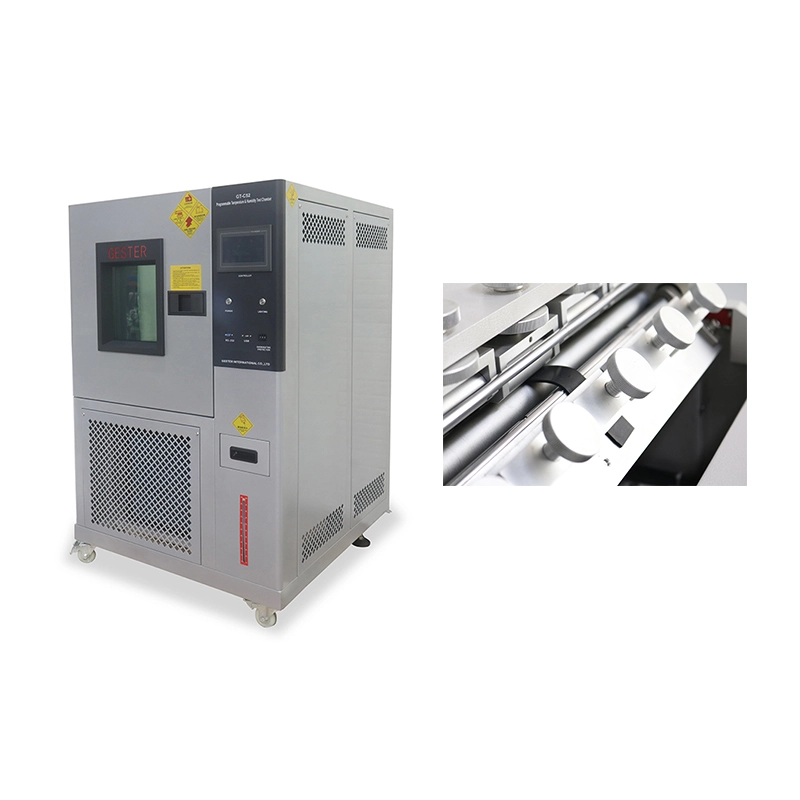

Low Temperature ROSS Flexing Tester GT-KB05B
Application
Low Temperature ROSS Flexing Tester to determine rectangular bending test of rubber products, shoe soles, PU, PVC, TPR foam and other materials. And inspect its degree of damage, cracking and reduced decline by continuously stretch and bending.
Standards
ASTM D1052, SATRA TM60, BS5131: 2.1,
GB 20265 section 4.2, ISO 5423, ISO4643
HG/T2411, EN ISO 20344-2021 section 8.7, 8.8.4
Feature
- 1.Materials of outer chamber: 2mm Double-sided color coated steel with power coated surface.
- 2.Materials of inner chamber: using SUS304 stainless steel, seamless welded. Beside, the outer structure of the inner chamber is reinforced with 10mm steel plates to meet the structural strength requirements of the bending test.
- 3.With vacuum glass observation window, more effective to observe the testing situation.
- 4.Temperature control: adopt 7inch color touch screen with Chinese and English version, easy to operate.
- 5.Equipped with 2 sets of mechanical compressor, two-stage compression refrigeration cycle can quick cooling up to specified inner temperature in the case of various fixture grips.
- 6.The flexing system has separate controller with function of power off memory and automatically stop when test done.
-
7.All the testing fixtures are made of SUS304 stainless steel or aluminum, have a good corrosion resistance and anti-rust property.
Product Parameters
Key Specification
Model | GT-KB05B | |
ROSS Flexing Parameters | Fixture | 6 sets, can test 12pcs samples |
Bending Angle | 90±2° | |
Bending Speed | 0~110 cpm (adjustable) | |
Winding Shaft Radius | 5± 0.3mm | |
Specimen Dimension | 152 * 25mm | |
Counter | LCD, 0~99,999,999 | |
Control System | Touch Screen Programmable Microprocessor Control | |
Temperature Range | -40~100℃ | |
Temperature Accuracy | +/-0.5℃ | |
Inside Chamber Capacity | 150L | |
Chamber Material | SUS # 304 Stainless Steel and Painted | |
Power Supply | 1∮AC220V 50/60HZ | |
Dimension(W×D×H) | 110X100X150 cm | |
Weight (Approx) | 400 kg | |
Accessories
Standard accessories | 1pc | Chisel cutter (2mm) |
1pc | Chisel cutter (2.5mm) For ASTM D1052 | |
1pc | Power line |
