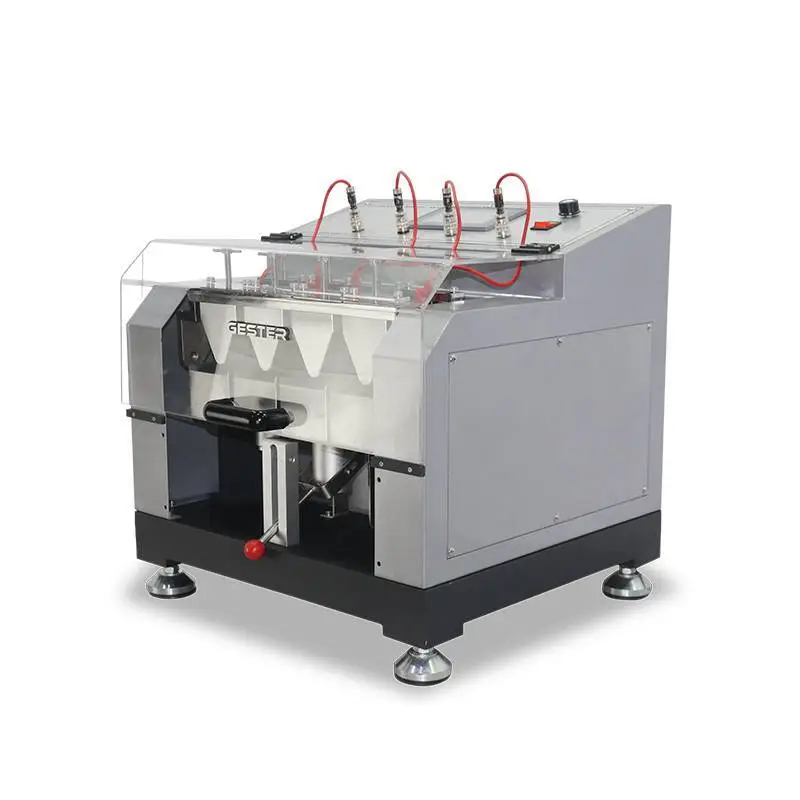

MAESER Water Penetration Testing Machine GT-KC05
Application
Maeser water penetration tester To determine the resistance of leather, artical leather, fabric and so on material to water penetration on flexing. The method is mainly applicable to footwear upper outer materials but can be used with any flexible sheet material.
Principle
- A square test specimen is folded and secured in two V-shaped clamps which have closed ends so as to form a trough. The trough is then immersed in water and the clamps oscillate at a constant speed so that the specimen is repeatedly flexed. The test is stopped at the first sign of water penetration through the test specimen.
Product Parameters
Key Specification
Model | GT-KC05-1 | GT-KC05-2 | GT-KC05-3 | |
Position | 4 | |||
Control method | Touch-screen control, 0~999,999 | |||
Clamps | V-shaped | |||
Clamps tip radius | 4mm | 7.5±0.5mm | ||
Moving fixture flexing displacement | 25.4±1.3 mm | Non required | ||
Moving fixture flexing angle | Non required | 30 ± 1 ° | 32 ± 1 ° | |
Test speed | 90±5 r/min | |||
Shutdown method | Electrode induction | |||
Sample size | 101.6 x 101.6 mm | 114 x 114 mm | ||
Power supply | 1∮AC 220V 50/60HZ | |||
Dimensions( L x W x H ) | 49x45 x1125px | |||
Weight | 55 kg | |||
Standards | ASTM D2099 | SATRA TM34 Type 1 | SATRA TM34 Type 2, ISO 5403-2 | |
Standard Accessories
Stainless steel ball | 550g |
Electrode induction line | 4pcs |
Power line | 1pcs |
Option Accessories
GT-KD20 Hydraulic Rocker Pressure Tester | (Cutter: 101.6x101.6 mm and114 x114 mm) |
Electronic balance | (300g / 0.01g) |
