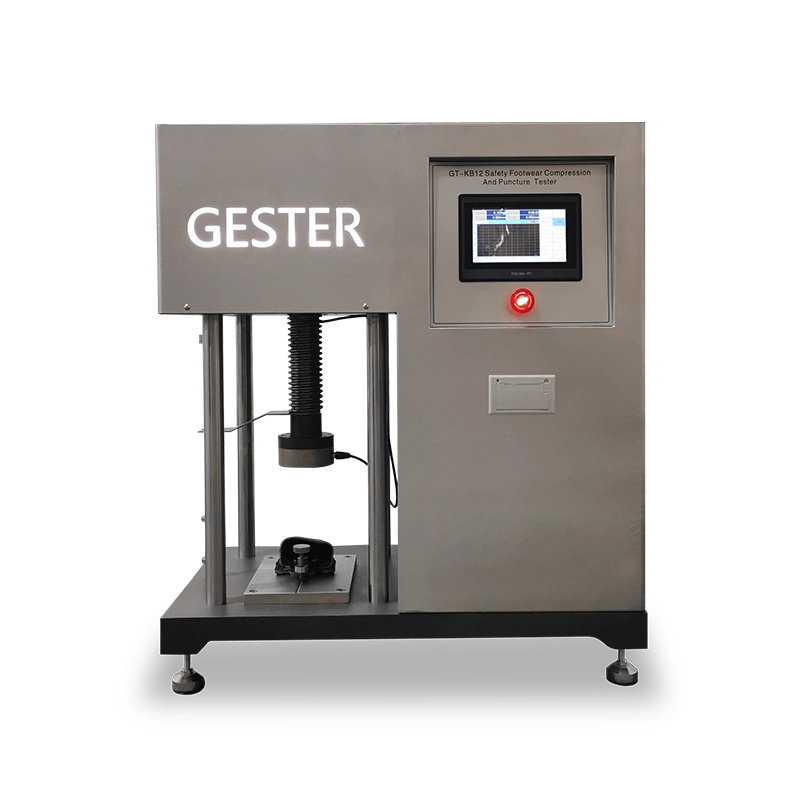

Safety Footwear Compression and Puncture Tester GT-KB12A
Application
Compression and Puncture Tester measures the compression strength for safety shoes toecap and puncture-resistant performance for sole steel plate.
Shoes Compression And Puncture Tester suitable for all types of safety shoes toecap compression test and sole steel plate puncture-resistant test , and to prevent the injury of accident to operators in the workplace by wearing owing to the security of shoes.
Product Parameters
| Standards | ||
GB/T 20991-2007 section 5.5 and 5.8, GB/T12017, ISO 20344-2021 section 5.5 and 5.9, 5.10 AS/NZS2210.2 section5.5 and 5.8, EN12568-2010section5.2.3 and 7.2, EN 344-1 section 5.4 and 5.6, EN 388 section 6.5, BS-953 section 5, NOM-113-STPS-2009 Section 8.4, CSA Z 195-14 section 6.3.1, ISO 20345, ISO 22568-4-2021 section 5.1,ISO 22568-1-2019 section 5.4,ISO 22568-2-2019 section 5.4,ISO 22568-3-2019 section 5.1 | ||
| Key Specification | ||
| Model | GT-KB12A | |
| Max. Capacity | 30KN | |
| Force Resolution | 1/10000 | |
| Force Accuracy | ≤+/-0.2%FS | |
| Stroke Range | 0-300mm | |
| Stroke Resolution | 0.01mm | |
| Compression Load | 15KN or 10KN | |
| Test Nail | Ø4.5mm | |
| Compression Speed | 5±2mm/min | |
| Power Supply | 1∮AC 220V 50/60HZ | |
| Dimensions | 84x61x78cm | |
| Weight | 156kg | |
| Accessories | ||
| Standards accessories | 1pc | Compression Platen |
| 2pcs | Test Nail | |
| 1set | Lower clamp for compression test | |
| 3pcs | Lower clamp for puncture test | |
| 1Set | English Software | |
| 1pc | Power line | |
| Optional accessories | EN 388 Lower clamp for puncture test (inner dimension 20mm) | |
| ASTM F2412/F2413 Lower clamp for puncture test | ||
| ASTM F2412/F2413 Lower clamp for compression test | ||
