Application

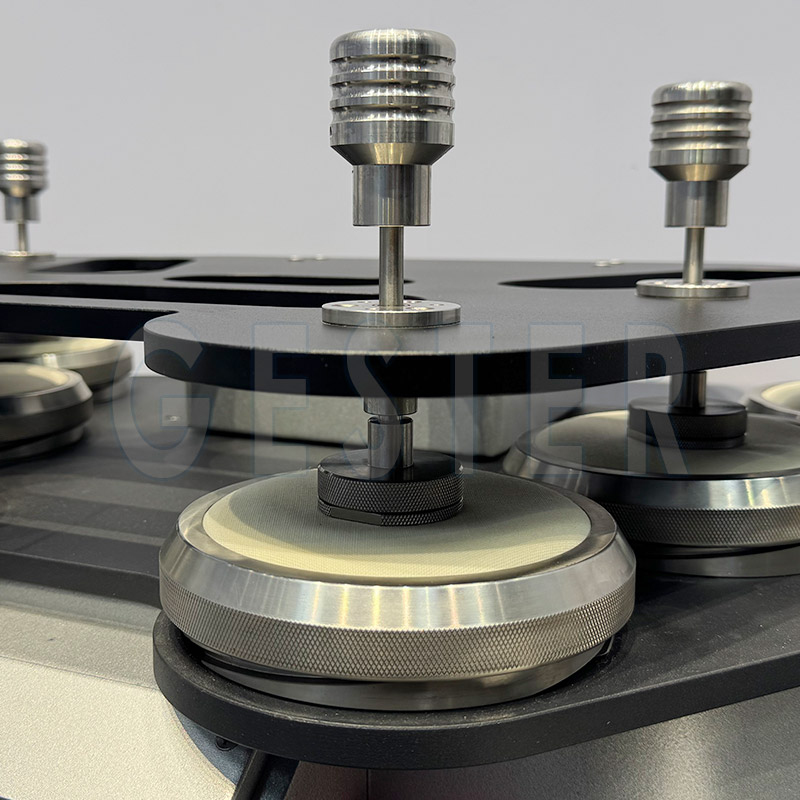

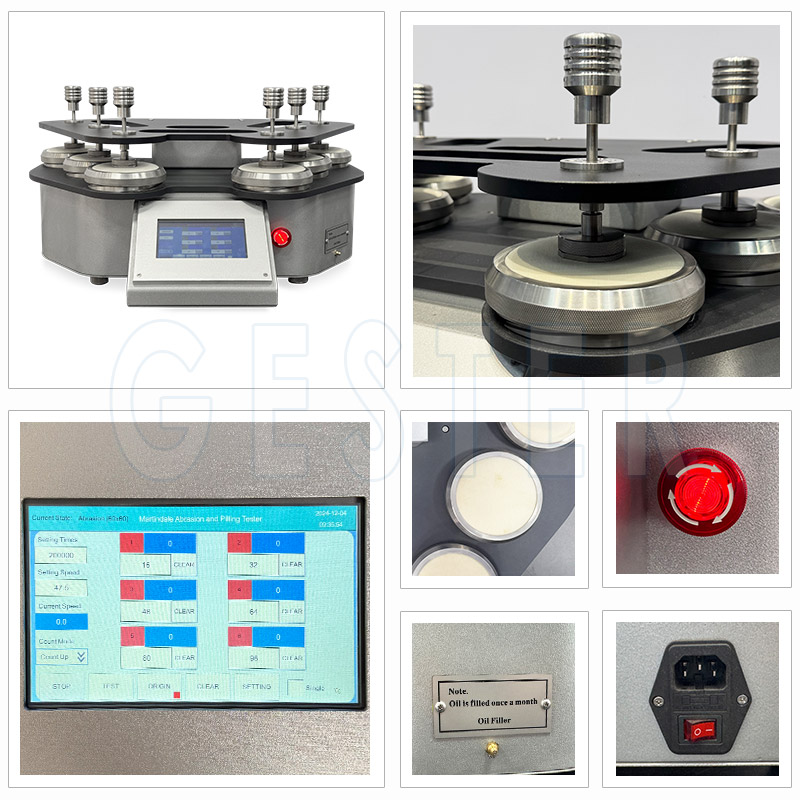

Martindale Abrasion Tester To determine the abrasion resistance of all kinds of footwear vamp material. Samples are rubbed against known abrasion at low pressures and in continuously changing directions and the amount of abrasion. The unique design allows removal of individual sample holders for examination without lifting the top motion plate.
Standards
ISO 20344-2020 section 5.24 , ISO 5470-2, ISO 12947,ISO 17704
AS/NZS 2210.2 section 6.12
GB/T 20991 section 6.12
EN 344-1 section 5.14, EN 13520
BS3424.24,
ASTMD4966,
SATRA TM31
EN 388 Section 6.1
Key Specification
Model | GT-KC13B-4 | GT-KC13B-6 | GT-KC13B-8 | GT-KC13B-9 |
Working station | 4 | 6 | 8 | 9 |

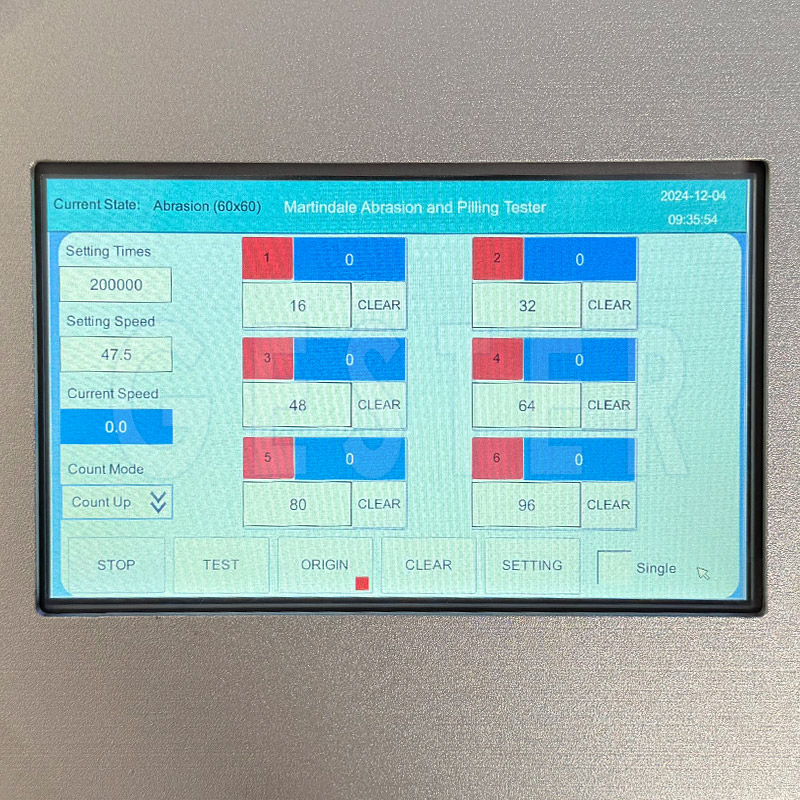

Control mode | Touch screen control | |||

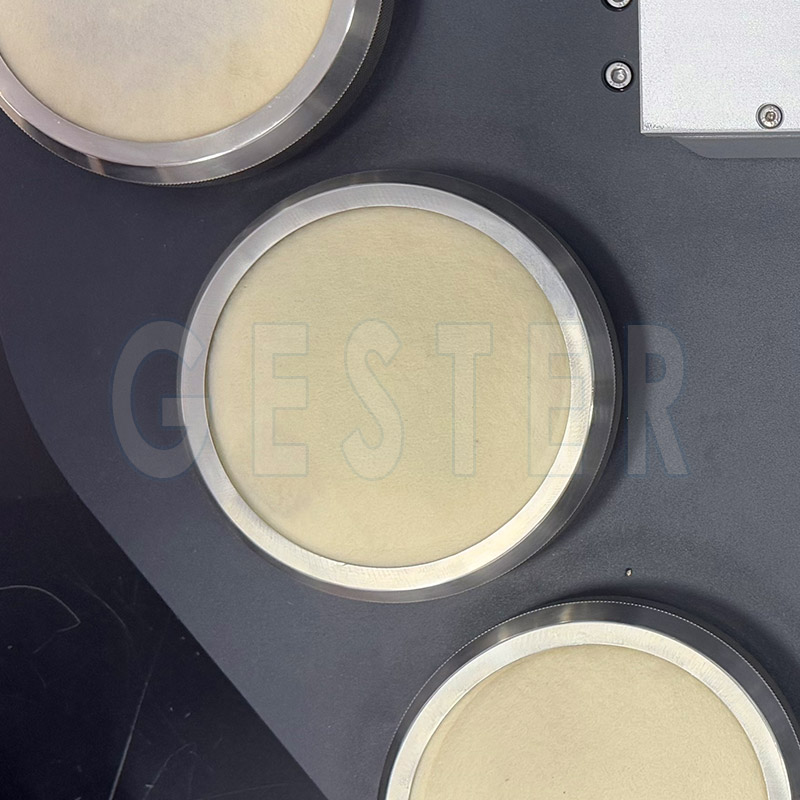

Abradant table | ≥ ¢125mm | |||
Lissajous figure | 60±1 mm x 60±1 mm | |||
Test Pressure | A) Specimen holder: (198 ±2)g B) Larger loading piece: (597±5)g C) The sum mass: (795±7)g, for workwear, upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa) | |||
A) Specimen holder: (198 ±2)g B) Smaller loading piece: (397±5)g C) The sum mass: (595±7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa) | ||||
Exposed area of specimen holder | 645 ± 5 mm2 | |||
Rotational Speed | 47.5 ± 2.5 r/min | |||
Pressing Weight | Mass : (2.5 ± 0.5) kg | |||
Diameter: Φ(120 ± 10) mm | ||||
Dimensions ( L x W x H ) | 74×70×925px | 74×70×925px | 88×78*925px | 88×78*925px |
Weight | About 130kg | About 150kg | About 160kg | About 170kg |
Accessories
Standard accessories | 1set | Abrasion Weight and Holder |
2pcs for each head | Standard Abradents Fabric Φ165mm | |
Box of 60pcs | Standard Backing Foam Φ44mm | |
2pcs for each head | Standard Woven Felt Discs Φ165mm | |
1pc | Pressing Weight | |
1pc | Cutting die Φ165mm (Making standard abradents fabric and woven felt.) | |
1pc | Cutting die Φ44mm (Making samples and standard backing foam.) | |
1pc | Power Line | |
Optional accessories | Optional | R1mm Holder Insert |
Optional | Standard Abrasion Fabric Φ165mm | |
Optional | Standard Backing Foam Φ44mm | |
Optional | EN 388 Clamping Ring for Thick Material | |
Optional | Standard Felt Discs Φ165mm | |
Optional | P400 Abrasion Paper | |
Optional | GT-C48 Pneumatic Sample Press | |
Optional | Gray Scale for color change | |
Optional | Gray Scale for staining |
