Penetration-Resistant Inserts Flexing Tester for safety shoes GT-KB11

这里可以自定义设置
Penetration-Resistant Inserts Flexing Tester for safety shoes GT-KB11
B站不支持收货地址
B站不支持库存规格
Model:
GT-KB11
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand
GESTER
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Application



To determine the flex resistance of penetration-resistant inserts for safety shoes.





Standards

EN ISO 20344-2020Section 5.12, AS/NZS 2210.2 Section 5.9, GB/T 20991 Section 5.9,
ISO 22568-3-2019 Section 5.2, ISO 22568-4-2021 Section 5.2,
EN 12568
ASTM F2412 section 11.7, ASTM F2413 Section 5.7.5, CAN/CSA Z195-14 Section 6.3.2



Key Specification

Model

GT-KB11

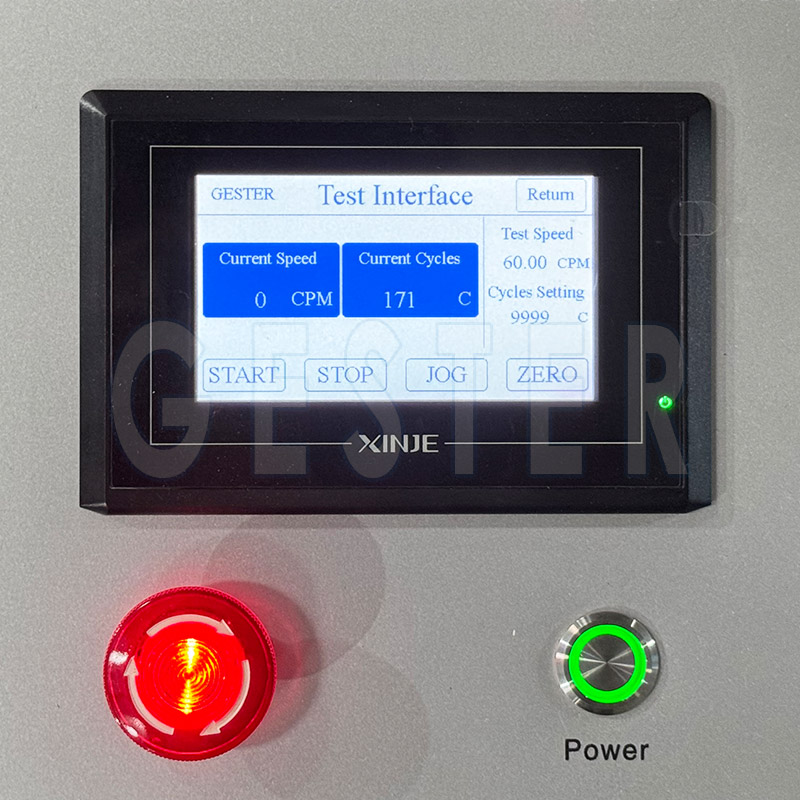

Control mode

PLC Touch screen

Drive mode

Servo motor

Bending stroke

33mm

Distance between guide rod and fixture

70mm

Test speed

960 CPM

Test times

106times

Power Supply

1∮AC220V 50HZ  5A

Dimensions(LxWxH)

Main machine: 700×360×440mm

Controller: 250×230×250mm

Weight

83kg

Standard Accessories

Power line   1pc
