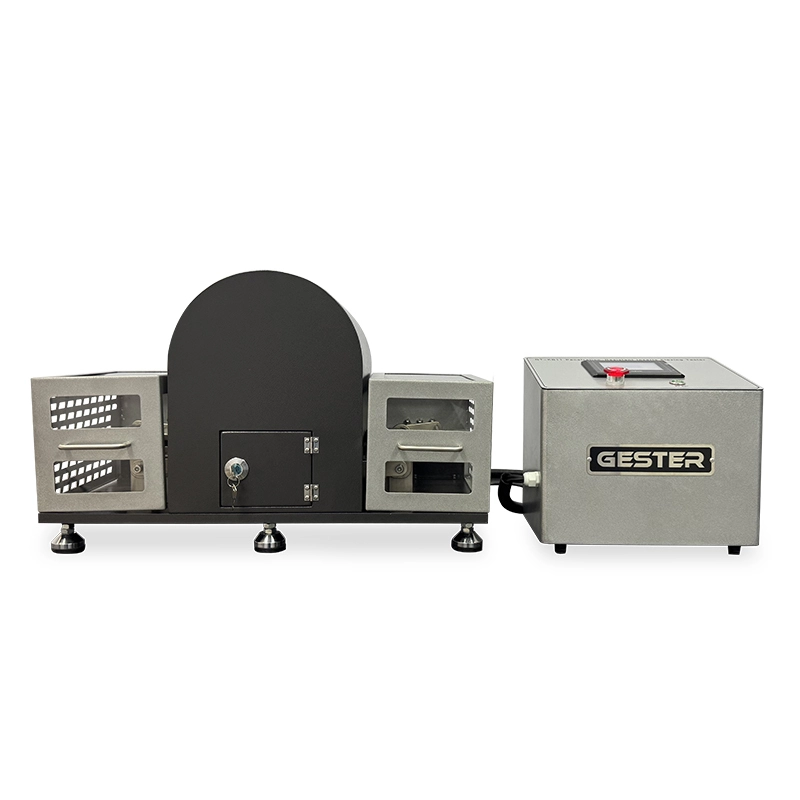

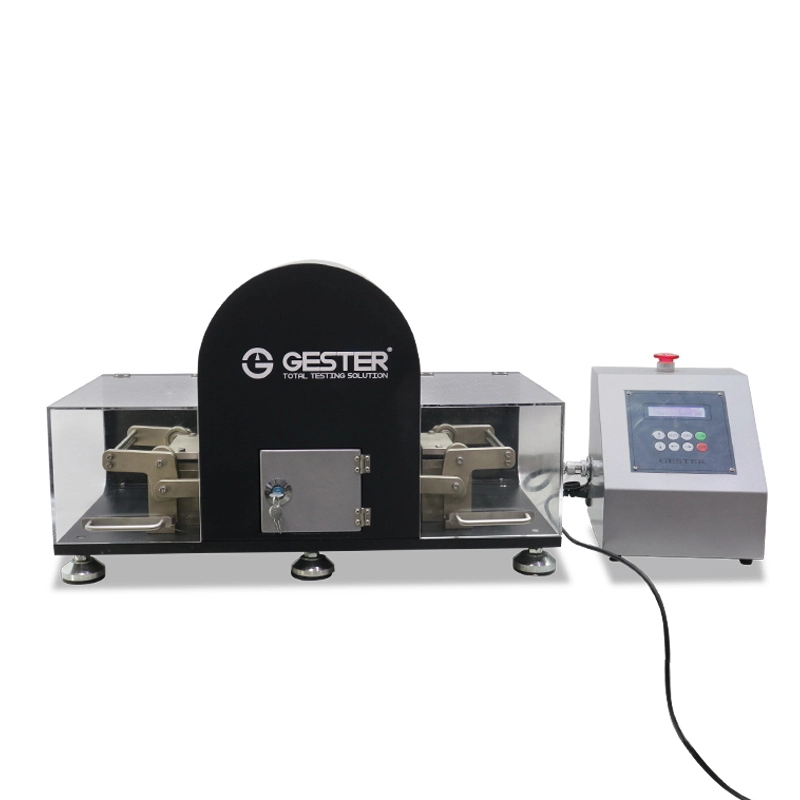

Penetration-Resistant Inserts Flexing Tester for safety shoes GT-KB11
Penetration-Resistant Inserts Flexing Tester for safety shoes
Product Description
Penetration-Resistant Inserts Flexing Tester is used to determine the flex resistance of penetration-resistant inserts for safety shoes.
Standards:
EN ISO 20344-2021 Section 5.12, AS/NZS 2210.2 Section 5.9, GB/T 20991 Section 5.9,
ISO 22568-3-2019 Section 5.2, ISO 22568-4-2021 Section 5.2, EN 12568
ASTM F2412 section 11.7, ASTM F2413 Section 5.7.5, CAN/CSA Z195-14 Section 6.3.2
Product Specifications
Our specialists can help you find the perfect Penetration-Resistant Inserts Flexing Tester for you.
| Model | GT-KB11 |
| Control mode | PLC Touch screen |
| Drive mode | Servo motor |
| Bending stroke | 33mm |
| Distance between guide rod and fixture | 70mm |
| Test speed | 960 CPM |
| Test times | 106 times |
| Power Supply | 1∮AC220V 50HZ 5A |
| Dimensions(LxWxH) |
Main machine: 700×360×440mm Controller: 250×230×250mm |
| Weight | 83kg |
| Standard Accessories | Power line 1pc |
