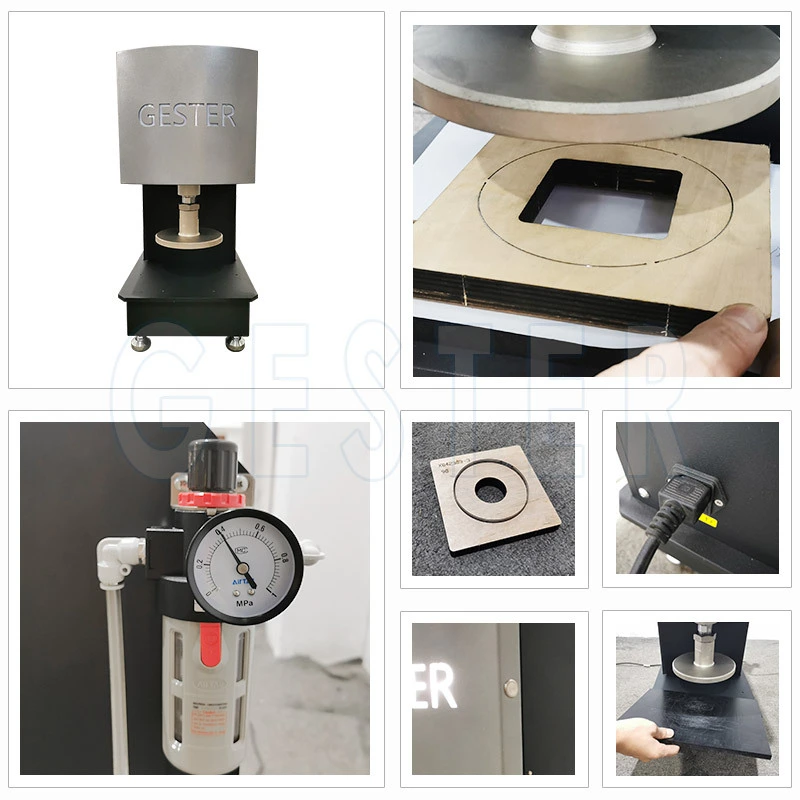

Pneumatic Sample Press GT-C48
Application
Sample pneumatic compression machine, a new type of desktop compression machine, equipped with 125 mm gas cylinder, cutting thickness of 5mm. Under the pressure of 100psi can produce 800kg pressure, equipped with a double bond security operation. Can be requested to provide special shape die. Laboratory standards require the use of air compressor.
Feature:
Pneumatic Sample Cutting Press Using high pressure air source, with all kinds of high steel die mold, solves the problem of time-consuming of cutting sample, quickly and effectively to ensure the smooth progress of the perfect all kinds of tests and sample reliable, provided with automatic sample ejection and safety 2 botton operation.
Key Specification
Diameter of platen | 18.5cm |
Max. cutting pressure | 800kg |
Air pressure | 4kg/cm2 |
Cutting thickness | 5mm |
Power supply | AC220V±10% 50/60Hz |
Dimensions | 480 x 400 x 930mm |
Weight | 120kg |
Accessories
Standard accessories | 1pc | Round cutting die 2500px² |
1pc | Power Line | |
Optional accessories | Optional | Round cutting die: φ38mm |
Optional | Round cutting die: φ90mm | |
Optional | Round cutting die: φ140mm | |
Optional | Rectangle cutting die:4×10CM | |
Optional | Rectangle cutting die:5×15CM | |
Optional | Can customize special cutting die |
