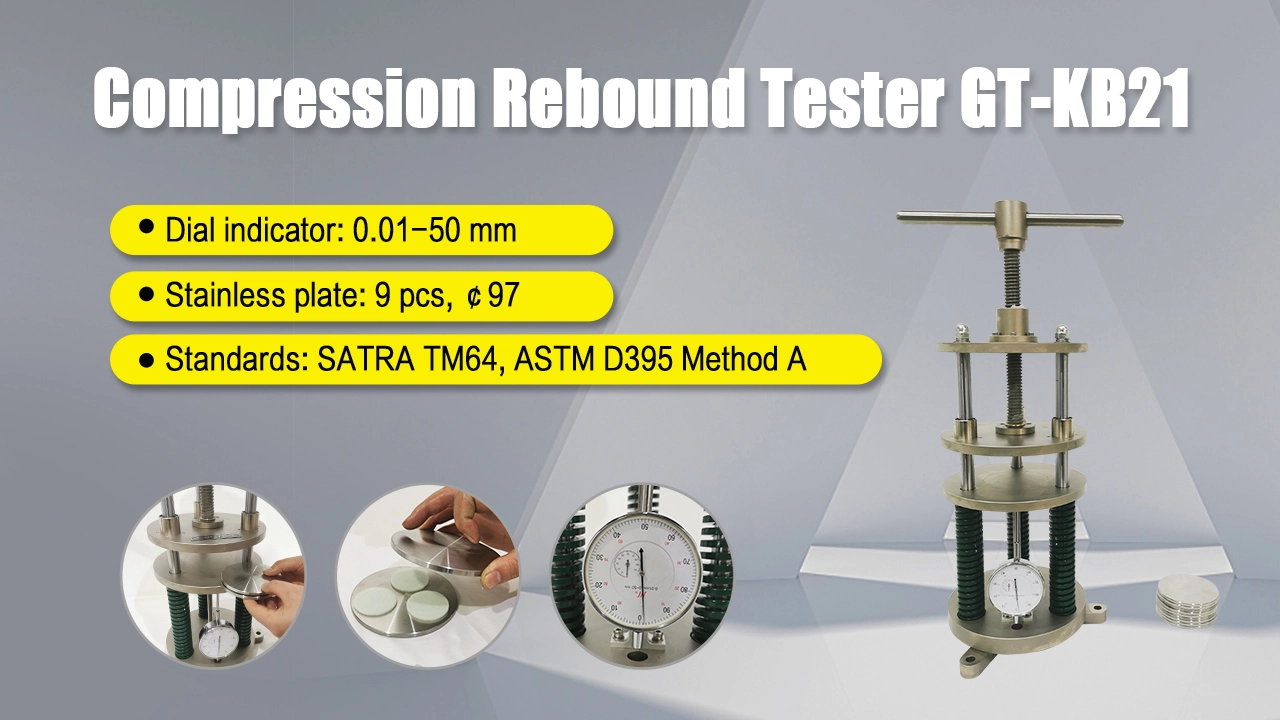

Rubber Compression Rebound Ability Tester GT-KB21
Application
Compression rebound testing machine is used to test the resilience of rubber products after a certain period of time and pressure. Take standard test pieces, place them flat on the test plate, and sandwich them between the two plates of the machine. After a specified time After taking out, releasing the test piece and cooling it, measure the final center thickness of the test piece separately, and substitute it into the formula to find its compression rebound rate.
Product Parameters
Rubber Compression Rebound Ability Tester Key Specification
Model | GT-KB21 |
Dial indicator | 0.01-50 mm |
Stainless plate | 9 pcs, ￠97 |
Effective trip | More than 100 mm |
Number of specimen | 3-27pcs |
Specimen size | Solid materials:φ29.0mm, Cellular materials: φ14.5mm |
Dimensions(LxWxH) | 35x35x65cm |
Weight | 35 kg |
Standards | SATRA TM64 , ASTM D395 Method A |
Accessories
Standard accessories | 9pcs | Stainless plate |
1pc | Dial | |
Optional accessories | Optional | Thickness Gauge (BS 903: Part A38 Method A) |
