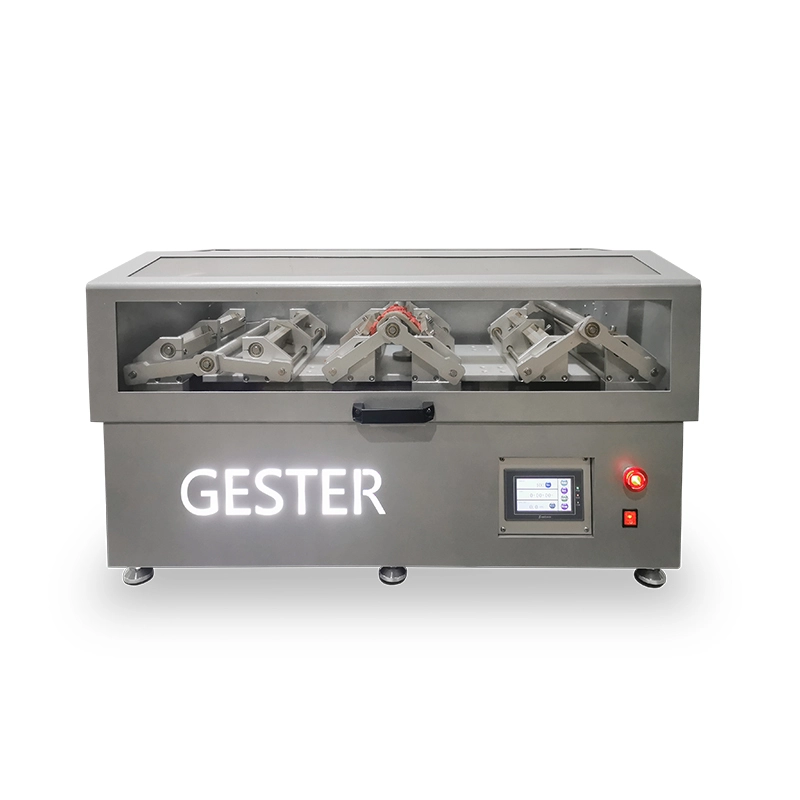

SATRA TM161 Sole Flexing Testing Machine GT-KB06
Product Description
Application:
This EN Sole Flexing Tester bennewart flexing machine is used to measure the flexing resistance of shoe soles under continuous movement.
Standards:
SATRA TM161, ISO 17707, ISO20344-2021 section8.6 ,
ISO20347 section 5.8.4, AS/NZS 2210.2 section8.4.2
GB/T 20991 section8.4.2, QB/T 2885, DIN 53543
Product Specifications
Our specialists can help you find the perfect seating for your home.
| Model | GT-KB06A | GT-KB06B |
| Test position | 3 | 6 |
| Control mode | Touch screen controlled | |
| Bending angle | 90±2 ° | |
| Bending speed | 125-150cpm | |
| Mandrel diameter | 30 mm | |
| Clamps apart | Clamps apart | |
| Movable fixture stroke | 0-9999999 | |
| Power supply | 1∮AC 220V 50/60HZ | |
| Dimensions | 105x42x60cm | 105x60x60cm |
| Weight | About 90kg | 160kg |
Feature
Plunge some holes at the maximum bending position, and mount specimen at both grips, one fixed, one movable. Specimen runs flexing owing to the movement of machine. After a certain test cycles, remove the specimen and check its difference of incision length.
