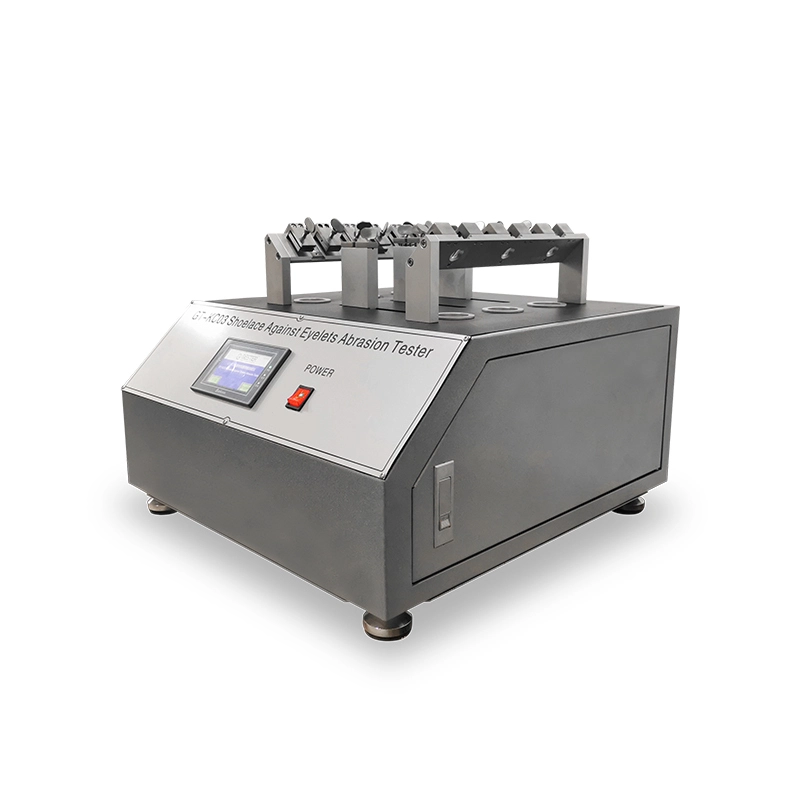

SATRA TM93 Shoe Lace And Eyelets Abrasion Testing Machine GT-KC03
Application
This tester is used for shoelace against standard eyelet abrasion testing, or eyelet against standard shoelace abrasion testing. This tester is suitable for all kinds of shoelace and eyelet.
Principle
Let shoelace cross the eyelet clamped on the fiber board, make the shoelace and eyelet form into 90 degree, make the fiber board and shoelace form into 45 degree. Then straining reciprocated the shoelace under the standard tension by eyelet. While the shoelace is damaged, stop the testing.
Product Parameters
Key Specification
Model | GT-KC03 |
Position | 6 positions |
Weights | 455g ± 5g , 6pcs |
Control method | Touch-screen control, 0~999,999 |
Standard eyelet | Brass, Inner diameter: 4.5mm |
Fiberboard | 25×25mm, Inner diameter 5.0 ± 0.2mm |
Movable stroke | 76 ±2 mm |
Test speed | 100±5cpm |
Power supply | 1∮AC 220V 50/60HZ |
Dimensions（W×D×H） | 57x58x1025px |
Weight(approx.) | 60 kg(excluding weight) |
Standards | SATRA TM93 |
Accessories
Power line | 1pc |
Standard eyelet | 6pcs |
455g Weights | 6pcs |
