Shoe Heel Impact Strength Tester GT-KB14
Application
This test is used to determine the impact strength of heels of ladies’ shoes, and the result provides an assessment of the liability to failure under the occasional heavy blows received during wear.
Feature Principle
- Its principle is, a heel, clamped with the tip uppermost and the stem approximately vertical, is subjected repeatedly to measured blows from a pendulum striker , the energy of the blows increasing successively until the heel fails. While the method is applicable to all types of high heels ,of whatever construction, it is particularly useful for injection molded plastics heels which incorporate a steel dowel reinforcement, giving information on the suitability of the dowel’s hardness or softness.
Product Parameters
Key Specification
Model | GT-KB14 | ||
Capacity | 0~18.3J | 0~19J | |
Min. Scale | 0.68J | 0.5J | |
Striker Head (L×W×T) | (35 ± 2)×25×6mm | (32 ± 1)×25×6mm | |
Striker Head Corner Radius | R3mm | ||
Pendulum | ￠108 , Thickness 49mm | ||
Pendulum Shaft | ￠25mm | ||
Pendulum Moment @ Horizontally | 17.3N.m | ||
Adjustable Range of Base Clamp | (H)~25mm,angle 0~45degree | ||
Dimensions (L×W×H) | 65 ×41×2875px | ||
Weight | 101kg | ||
Standards | BS-5131-4.8, ISO 19953, QB/T 2863 | SATRA TM20 | |
Accessories
Striker Head | (33 ×25×6mm,simultaneously meet two requirements) |
Dial | simultaneously meet two requirements |

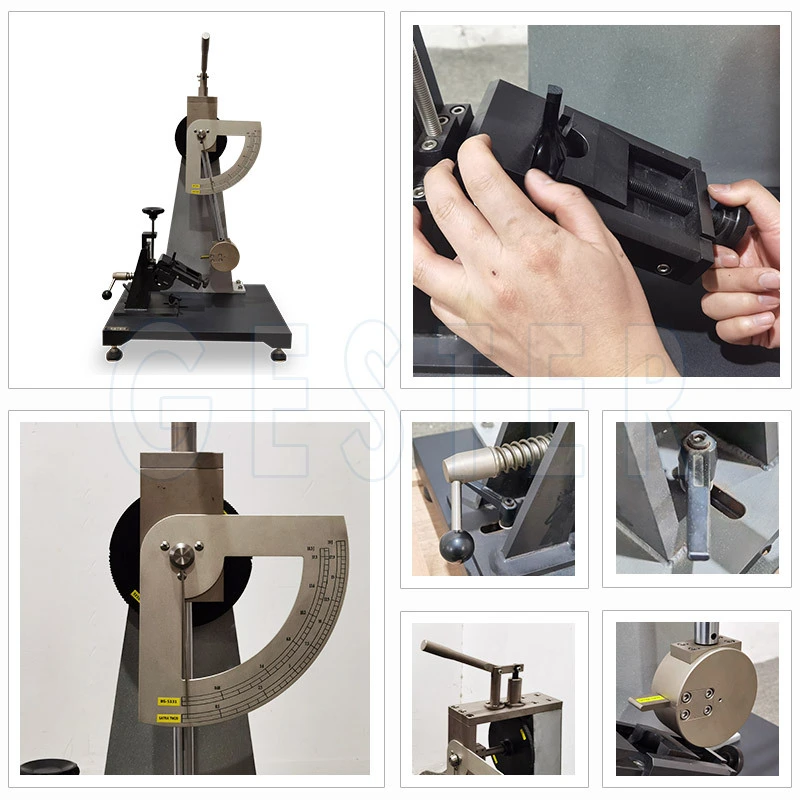

Product Details
