Shoelace Abrasion Resistance Tester GT-KC02

这里可以自定义设置

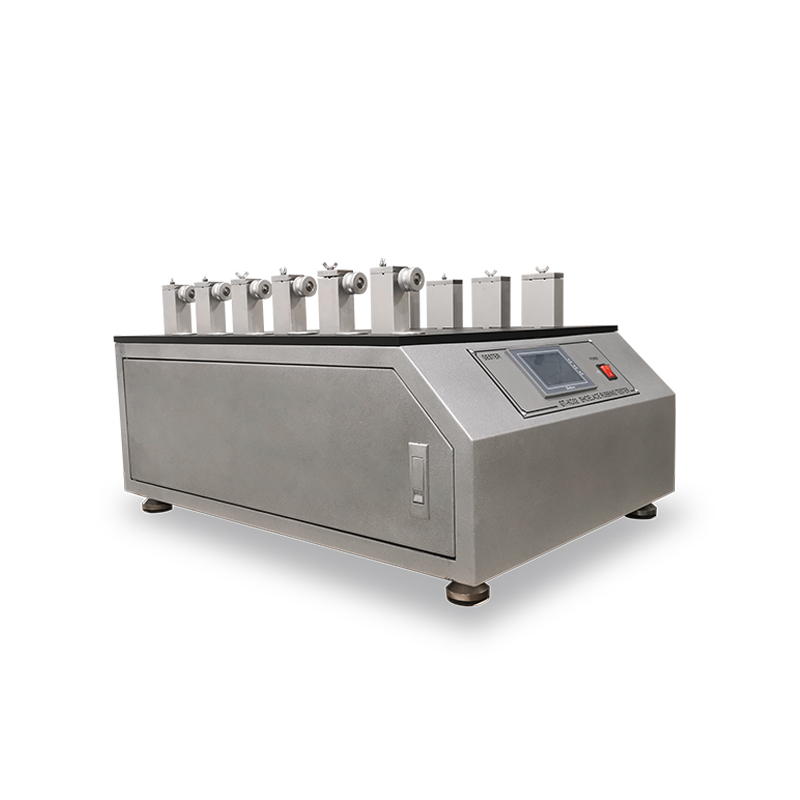

Shoelace Abrasion Resistance Tester GT-KC02
B站不支持收货地址
B站不支持库存规格
Model:
GT-KC02
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand
GESTER
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

 Application



Shoelace Rubbing Tester is used to test the abrasion resistance for shoelace of cotton, hemp, chemical fiber or other materials.





Principle

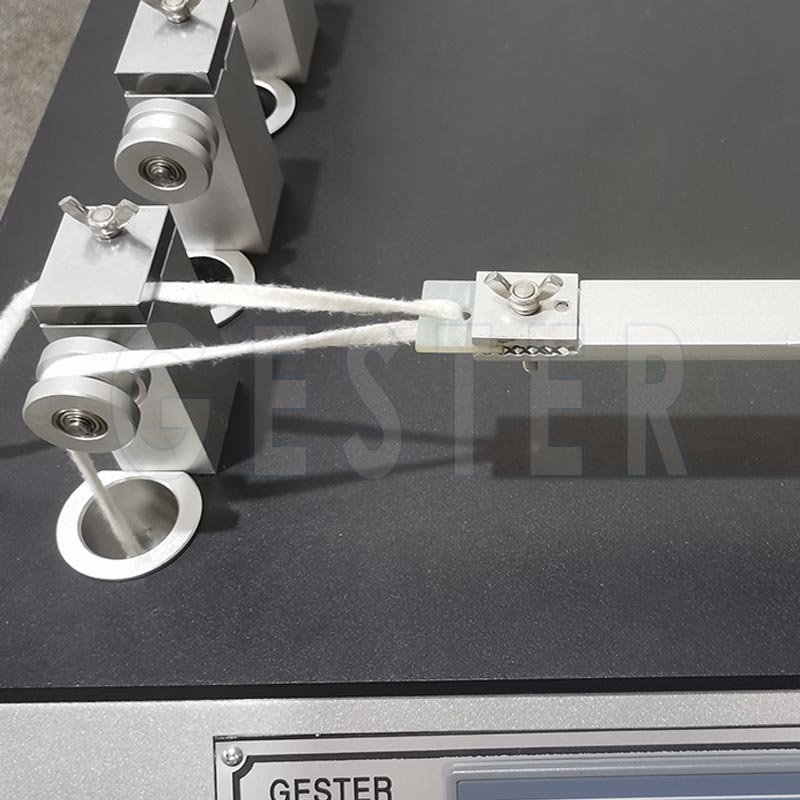

Take two shoelace, mutually hook in the middle. Clamp the both ends of the shoelace at the movable fixture of shoelace rubbing tester, which can make reciprocating linear motion; clamp one end of the other shoelace on the corresponding fied fixture and another end of the shoelace round by a fixed pulley and hanging the a weight. Make the two shoelace abrasion each other by reciprocating linear motion. Then check the wear resistance, when the machine run up to pre-set times, the machine stop.



Product Parameters

Key Specification

Model

GT-KC02A

GT-KC02B

Test position

4 groups

6 groups

Control

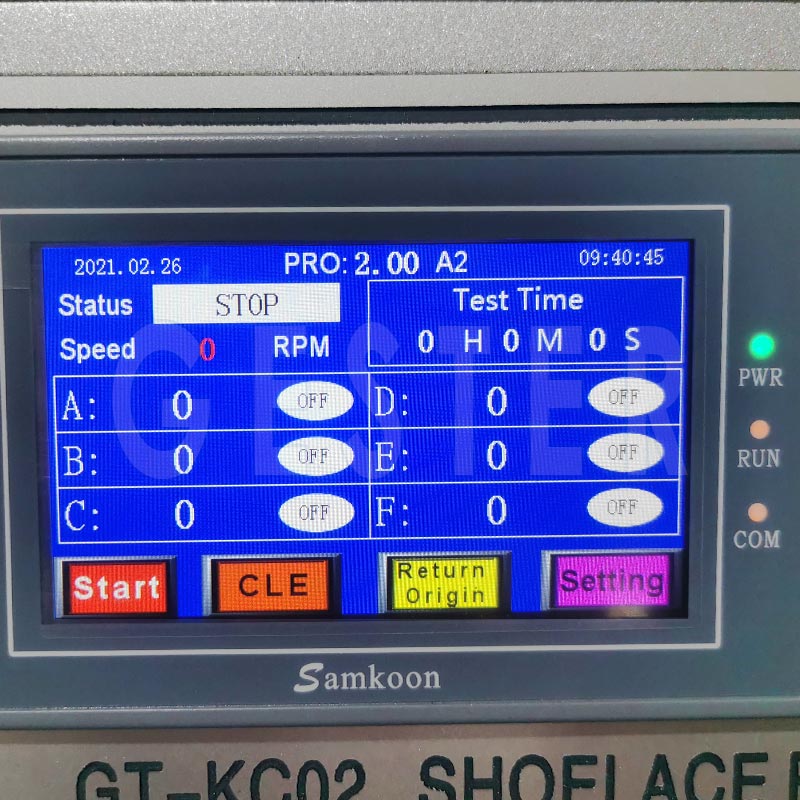

Touch-screen control, 0~999,999

Min. Separation between movable and fixed fixtures

280 ±50 mm

Movable fixture stroke

35± 2 mm

Test speed

60 ± 6 cycles/min

Sample loading gauge

Angle 52.5degree; Length120 mm

Stainless metal strip

W: 25mm, L: 250mm

Weight

250 ± 3g

Power supply

1∮AC 220V 50/60HZ

Dimensions ( L x W x H )

66 x 58 x 1050px

Weight

50 kg

Standards

DIN 4843

SATRA TM 154

ISO 22774

QB/T 2226

GB/T 3903.36

ISO 2023 Annex B

Accessories

Standards accessories

4pcs

250g Weights

4pcs

Stainless metal strip

4pcs

Clip

1pc

Sample loading gauge

1pc

Power line

Optional accessories

Optional

Standard eyelet
