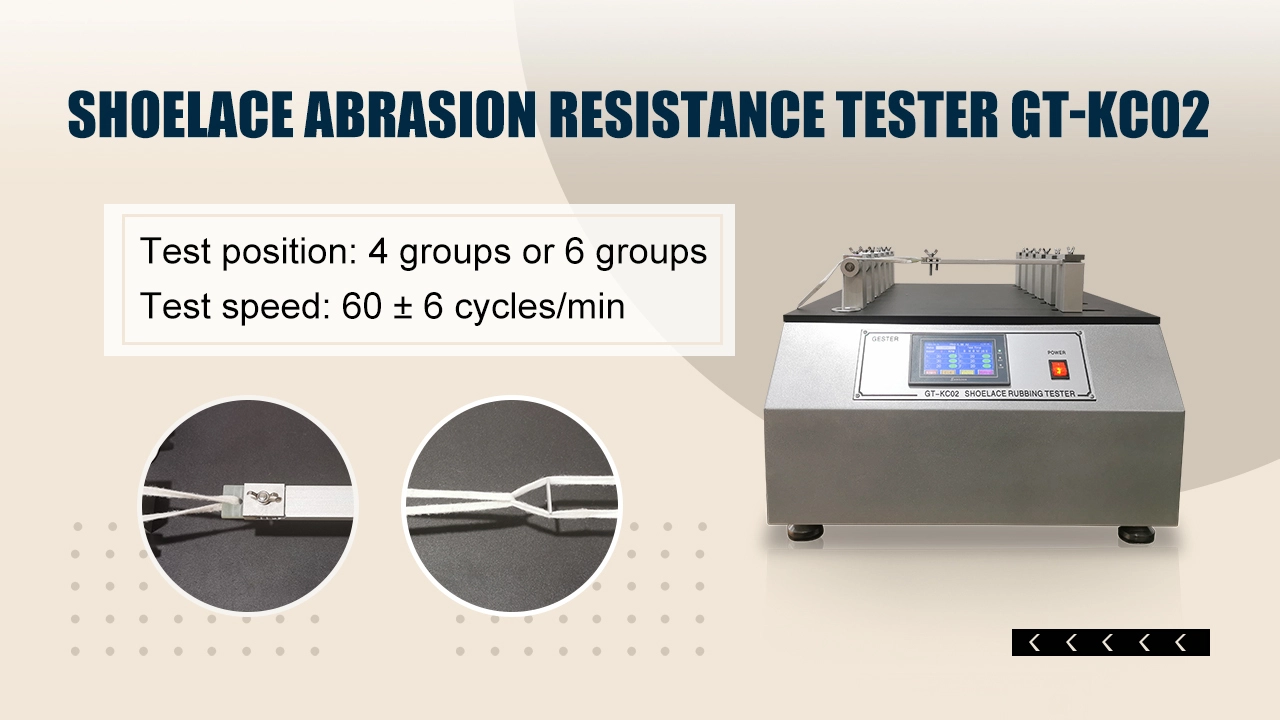

Shoelace Abrasion Resistance Tester GT-KC02
Product Description
Application
Shoelace Rubbing Tester is used to test the abrasion resistance for shoelace of cotton, hemp, chemical fiber or other materials.
Principle
Take two shoelace, mutually hook in the middle. Clamp the both ends of the shoelace at the movable fixture of shoelace rubbing tester, which can make reciprocating linear motion; clamp one end of the other shoelace on the corresponding fied fixture and another end of the shoelace round by a fixed pulley and hanging the a weight. Make the two shoelace abrasion each other by reciprocating linear motion. Then check the wear resistance, when the machine run up to pre-set times, the machine stop.
Standards
DIN 4843, SATRA TM 154 , ISO 22774, ISO 2023 Annex B, QB/T 2226, GB/T 3903.36
Key Specification
|
Model |
GT-KC02A |
GT-KC02B |
|
Test position |
4 groups |
6 groups |
|
Control |
Touch-screen control, 0~999,999 |
|
|
Min. Separation between movable and fixed fixtures |
280 ±50 mm |
|
|
Movable fixture stroke |
35± 2 mm |
|
|
Test speed |
60 ± 6 cycles/min |
|
|
Sample loading gauge |
Angle 52.5degree; Length120 mm |
|
|
Stainless metal strip |
W: 25mm, L: 250mm |
|
|
Weight |
250 ± 3g |
|
|
Power supply |
1∮AC 220V 50/60HZ |
|
|
Dimensions ( L x W x H ) |
66 x 58 x 42cm |
|
|
Weight |
50 kg |
|
Accessories
|
Standard accessories |
GT-KC02A |
GT-KC02B |
|
250g Weights |
4pcs |
6pcs |
|
Stainless metal strip |
4pcs |
6pcs |
|
Clip |
4pcs |
6pcs |
|
Sample loading gauge |
1pc |
1pc |
|
Power line |
1pc |
1pc |
|
Optional accessories |
Standard eyelet |
|
