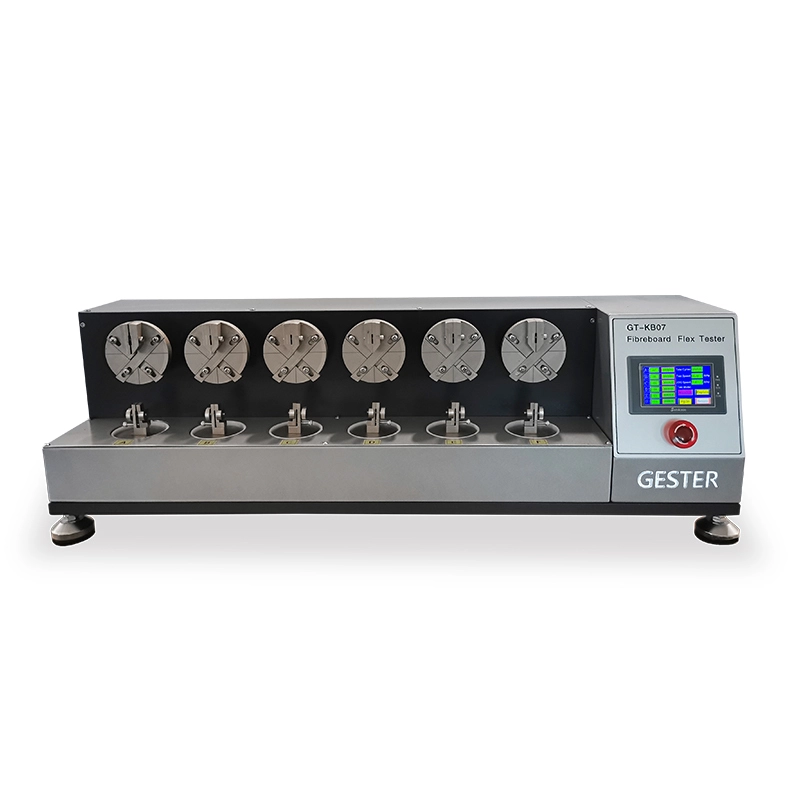

Shoes Insole Fibre Board Flex Tester GT-KB07
Application
This Footwear Testing Machine to determine flex test for shoe insole fiberboard and applicable for common leather shoes and sneaker insole fiberboard, but not for toe cap, counter-heel, semi-back and special leather shoes and sneaker insole fiberboard.
Principle
Fibreboard is flexed mechanically and repeatedly until failure occurs, and from the number of flex cycles to failure,a flexing index is calculated.
Product Parameters
Key Specification
Model | GT-KB07 |
Test position | 6 |
Specimen size | 80 x 10mm |
Lower clamp and weight | 2.0 ± 0.01 kg |
Upper clamp bending speed | 60 ± 10 rpm |
Upper clamp bending angle | Each side 90 ± 1° |
Power supply | 1∮AC 220V 50/60HZ 3A |
Dimensions | 105´25´35 cm |
Weight | 149kg |
Standards | QB/T 1472, BS 5131: 4.2, SATRA TM3 |
Accessories
Standard accessories | 6pcs | Lower clamp and weights |
1pcs | Power line |
