Slide Fasteners Reciprocating Tester Zipper Testing Machine GT-C39A
Application
It is used to do a variety of zipper reciprocating tests, by testing in a continuous back and forth action. The ultimate aim is to test the zipper to create a distance between joints, loose or connector failure, fluff, wear, etc.
Feature:
1.Reasonable design, easy to operate
2.zipper fatigue tester equip with automatic counting device to complete test and automatically machine stop.
Standards
CNS -1083 , BS 3084 , QB/T2171, DIN 3419-1, DIN EN 16732, ASTM D2061, SATRA TM50 Method 2
Product Parameters
Model | GT-C39A |

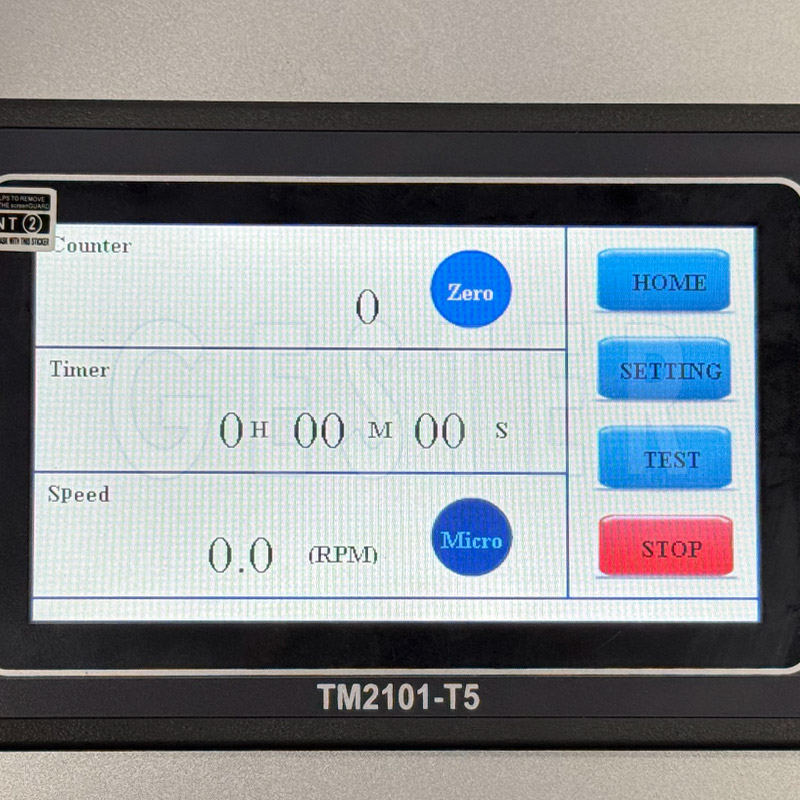

Control mode | Touch screen |
Horizontal fixture width | 25mm |
Test speed | 30cpm |
Reciprocating stroke | 75mm |
Angle | Open: 30degree. Close: 60degree |
Counter | LCD, 0-999999 |
Power Supply | AC 220V 50/60HZ |
Dimensions | 480 x 370 x600mm |
Weight | 61kg |
Accessories
Standards accessories | 1pc | 60° Angle gauge |
1pc | 30° Angle gauge | |
8pcs | Positioning pieces | |
1pc | Power line |

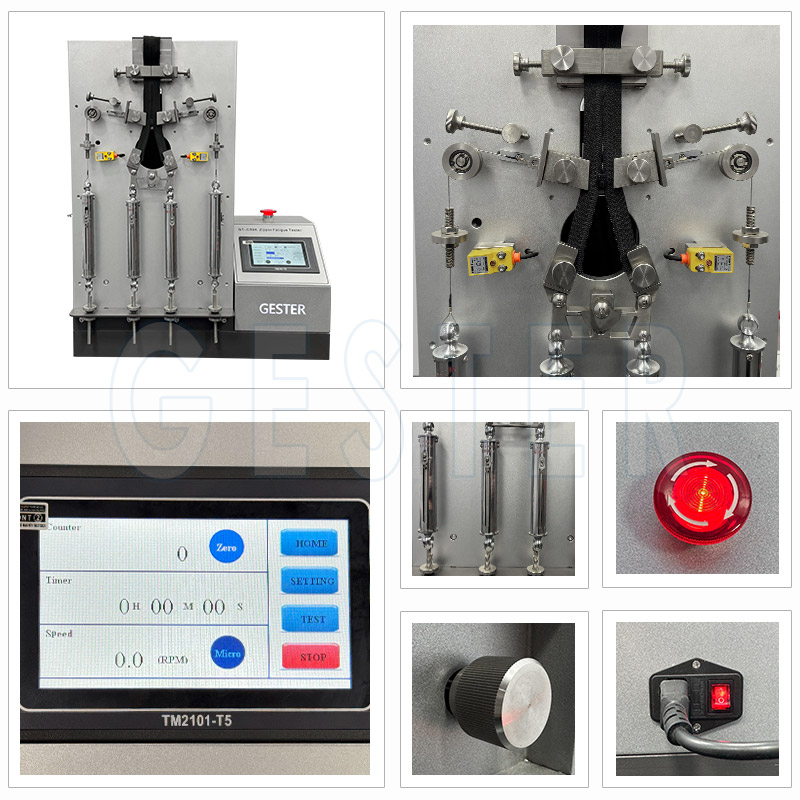

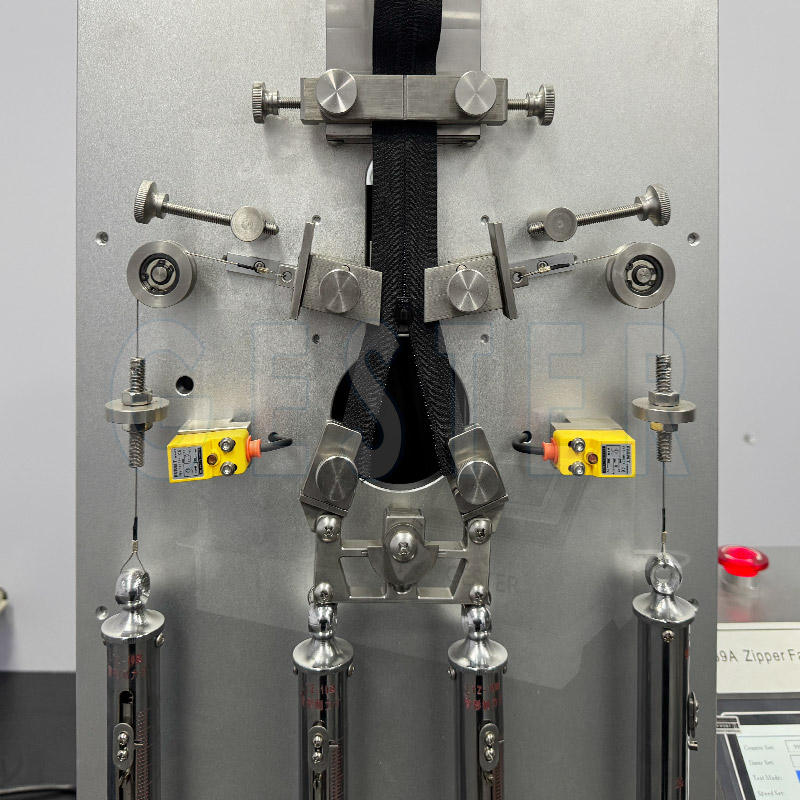

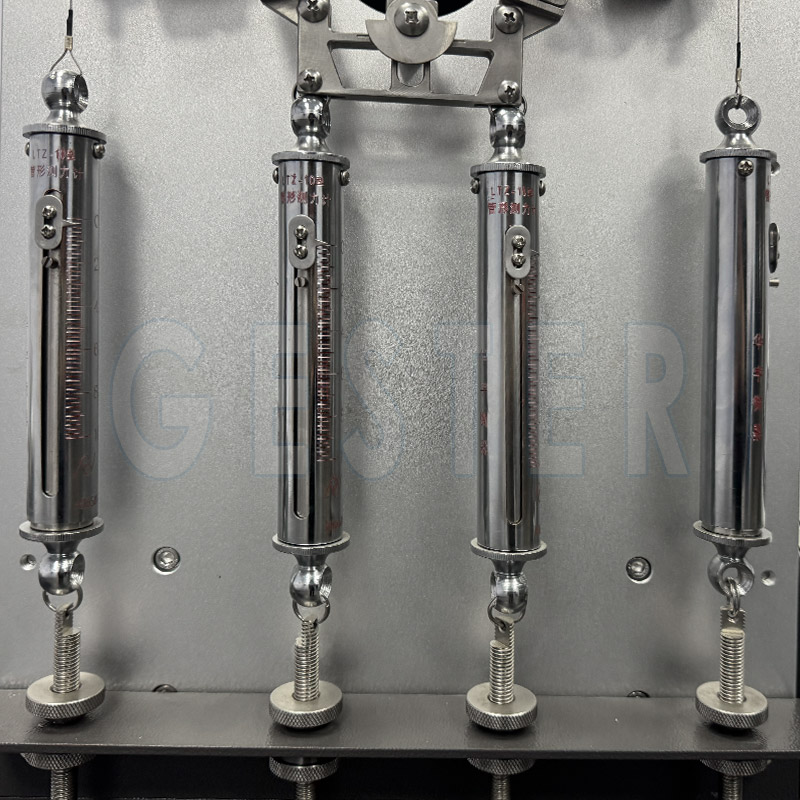

Product details
