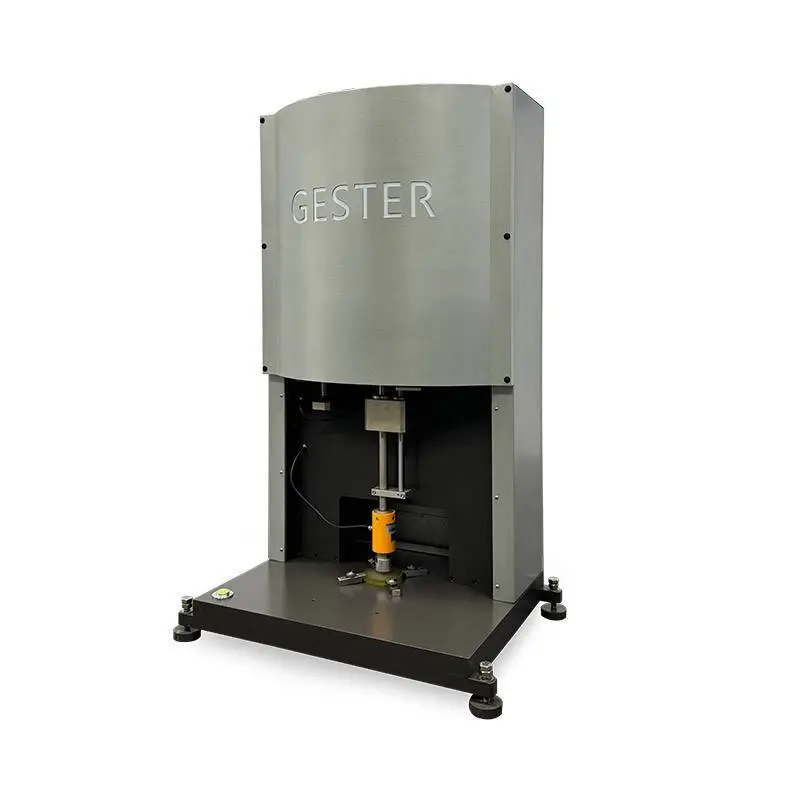

Sports Shoe Shock Absorber Testing Machine GT-KA04A
Sports Shoe Shock Absorber Testing Machine GT-KA04A
Application
It is used to measure the shock absorption characteristics and rapid force-displacement relationship of the midsole material system of sports shoes during normal running. It is characterized by high control accuracy, flexible configuration and good stability.
Standard
ASTM F1614 (Method A), ASTM-F1976, GB/T 24152-2009
Sports Shoe Shock Absorber Testing Machine Key Specification
|
Model |
GT-KA04A |
|
Hammer weight |
8.5 kg (5J), 11.9 kg (7J) |
|
Impact head |
Radius of top arc R=1.0±0.25mm, top is round, dia 45 mm, weight less than 0.2 kg |
|
Drop height |
50 mm |
|
Impact method |
Free fall |
|
Impact energy |
5±0.5J; 7±0.5J |
|
Test speed |
2 ± 1seconds/cycle |
|
Capacity of load cell |
10KN, sampling rate more than 1000Hz |
|
Displacement sensor |
0~100mm, sampling rate more than 1000Hz |
|
Dimension (W×D×H) |
80×58×130cm |
|
Weight |
About 350 kg |
|
Power |
1∮, AC220V |
|
Standard |
ASTM F1614(method A), ASTM-F1976, GB/T 24152-2009 |
