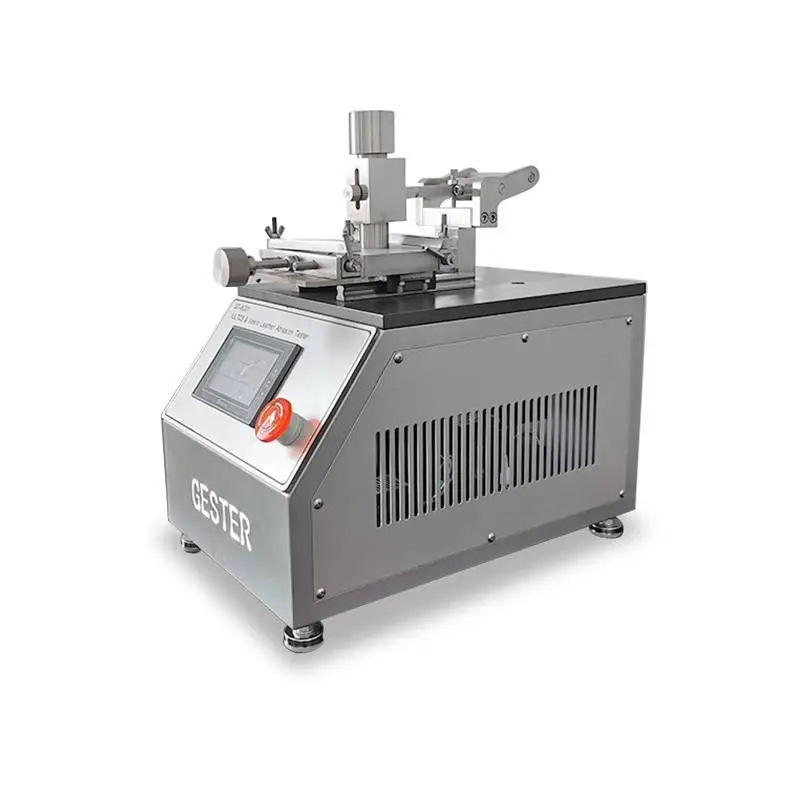

Uppers Color Fastness Rubbing Tester GT-KC09
Uppers Color Fastness Rubbing Tester GT-KC09
This Uppers Color Fastness Rubbing Tester is similar to the one specified in ISO 11640 for determining the color fastness of leather to back and forth rubbing, with a wooden semi-cylinder of 10 mm radius and 20 mm width mounted at the base of the finger and a suitable device attached to hold the rubber strip. It can be used for both dry and wet rubbing tests.
Standards
ISO 24265-2020
Key Specification
|
Model |
GT-KC09 |
|
Position |
1 |
|
Testing head |
R10mm x20mm |
|
Movement speed |
40 ± 2 times / min. |
|
Rubbing stroke |
35~40 mm |
|
Rubbing finger mass |
500g |
|
Additional weight mass |
500g |
|
Fixtures distance |
80mm |
|
Sample size |
120x70mm |
|
Tension extension range of sample |
0 ~ 20% |
|
Power supply |
1∮AC 220V 50/60HZ |
|
Standards |
ISO 24265-2020 |
