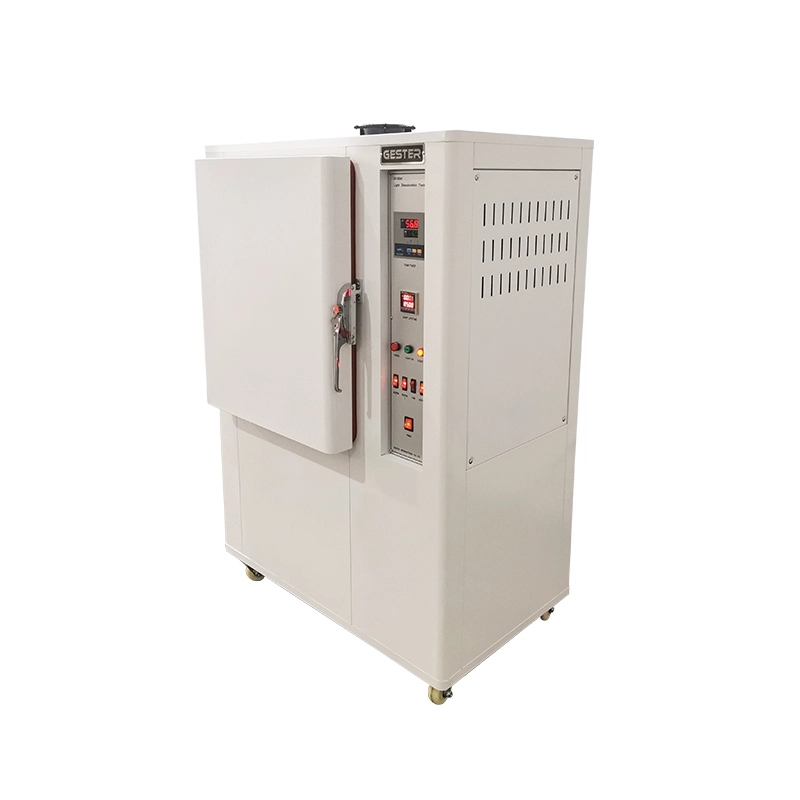

UV Light Discoloration Test Chamber GT-KD02
UV Light Discoloration Test Chamber GT-KD02
Product Overview
The UV Light Discoloration Test Chamber GT-KD02 is a specialized machine designed to test the discoloration resistance of shoe materials and other related products.
This versatile UV Light Discoloration Tester is not limited to discoloration tests. It can also function as an aging tester and dyeing oven, making it a multi-functional solution for laboratories and manufacturers.
Key Applications
The UV Light Discoloration Tester is ideal for testing a wide range of materials, including:
1. White and light-colored upper materials
2. Sole materials
3. Leather, PU, and fabric
Other components exposed to sunlight or heat during normal use or transportation
Working Principle
The UV Light Discoloration Tester replicates the effects of sunlight radiation and heat to test a material’s resistance to yellowing and discoloration. Its advanced testing process involves:
1. Simulated Sunshine Radiation: UV light (300W) is used to mimic the impact of sunlight.
2. Controlled Heat: Recreates the high-temperature conditions materials might face during transportation or exposure.
3. Assessment: After testing, the sample's yellowing resistance is evaluated using a grey scale for accurate reference.
The high-efficiency UV light source enables the testing to be completed in a short time, delivering fast and reliable results.
Why Choose ASTM-D1148 UV Light Discoloration Tester GT-KD02?
With its advanced simulation capabilities and efficient testing processes, the UV Light Discoloration Test Chamber GT-KD02 ensures that your products meet the highest quality standards. Its versatility and precise assessment methods make it an invaluable tool for manufacturers, researchers, and quality assurance teams.
Elevate your testing capabilities with the ASTM-D1148 UV Light Discoloration Tester and safeguard your materials against discoloration and aging.
Key Specification
Model | GT-KD02 |
Light source | OSRAM fluorescent UV lamp |
Lamp power | 300W |
Lamp Irradiance | ( 25±0.4) W/m2 |
Lamp service life | 1000h |
Temp. range | RT ~ 120℃ |
Temperature resolution | 0.1℃ |
Heating method | Hot-air circulation |
Timer | LED, 0 - 999min |
Turntable diameter | 35cm |
Revolutions | 3 rpm |
Interior chamber | 50 x 50 x 60 cm |
Power supply | 1∮AC 220V 50/60HZ |
Dimensions(W x D x H) | 88 x 70 x 156 cm |
Weight | 140 kg |
Standards | ASTM-D1148 HG/T 3689 |
