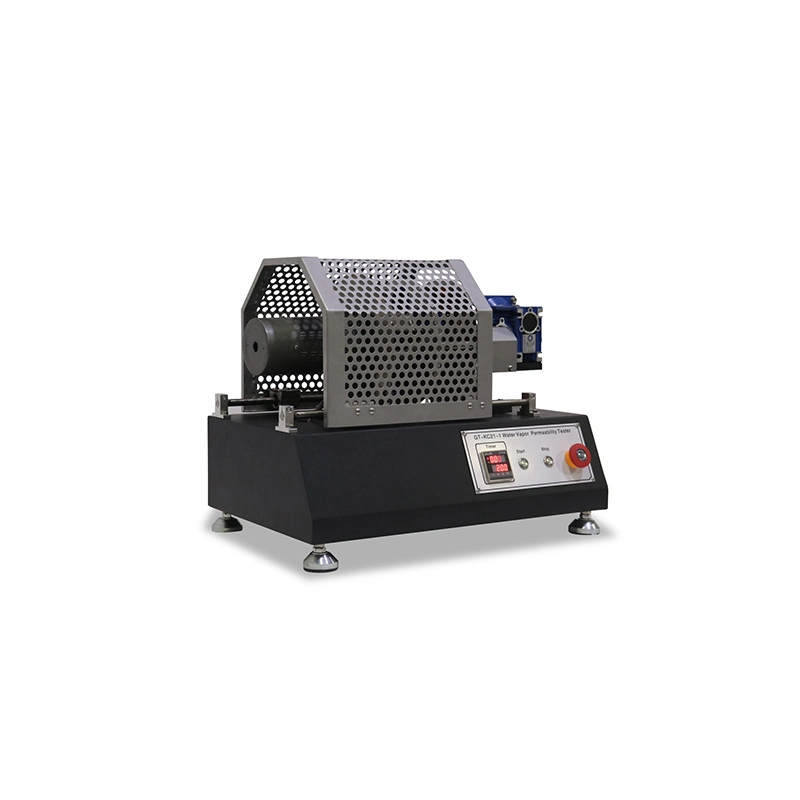

Water Vapor Permeability Tester For Shoe Material GT-KC21-1
5.0
Model:
GT-KC21-1
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand:
Gester
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Application
Water Vapor Permeability Tester is used to determine the water vapor permeability for vamp and upper shoe materials.
Using in the conditioning room under the standard stipulated temperature (23 ± 2)℃ and humidity (50 ± 5)% RH.
| Key Specification | ||
| Model | GT-KC21-1 | |
Control mode | Touch screen control | |
| Testing bottle number | 6pcs | |
| Bottle mouth diameter | 30mm | |
| Bottles holder speed | 75 ±5cpm | |
| Fan blades | 90 x 75 mm, 3 flat blades in planes inclined at 120° to each other | |
| Fan rotate speed | (1400 ± 100) r/min | |
| Specimen size | ￠34mm | |
| Power supply | 1∮AC220V 50/60HZ | |
| Dimensions | 56X37X38cm | |
| Weight | 50kg | |
Standards | ||
EN ISO 20344 Section 6.6, AS/NZS 2210.2 Section 6.6, ISO 17699: 2023 GB/T 20991 Section 6.6 , EN 344-1 Section 5.13, BS 3144, DIN 5333. SATRA TM172 | ||
| Accessories (A) | ||
| Standard Accessories | 6pcs | Testing Bottles |
| 1pc | Power Line | |
| 1bottle | Silica Gel | |
| Accessories (B) | ||
| Option Accessories | Optional | GT-D10 Drying Oven Bottles |
| Optional | GT-KD20 Hydraulic Rocker Pressure Tester (cutter: 70 ± 5 x 45 ± 5 mm,and ￠34mm) wer Line | |
| Optional | GT-KC10A Bally Resistance Flexing Tester | |
