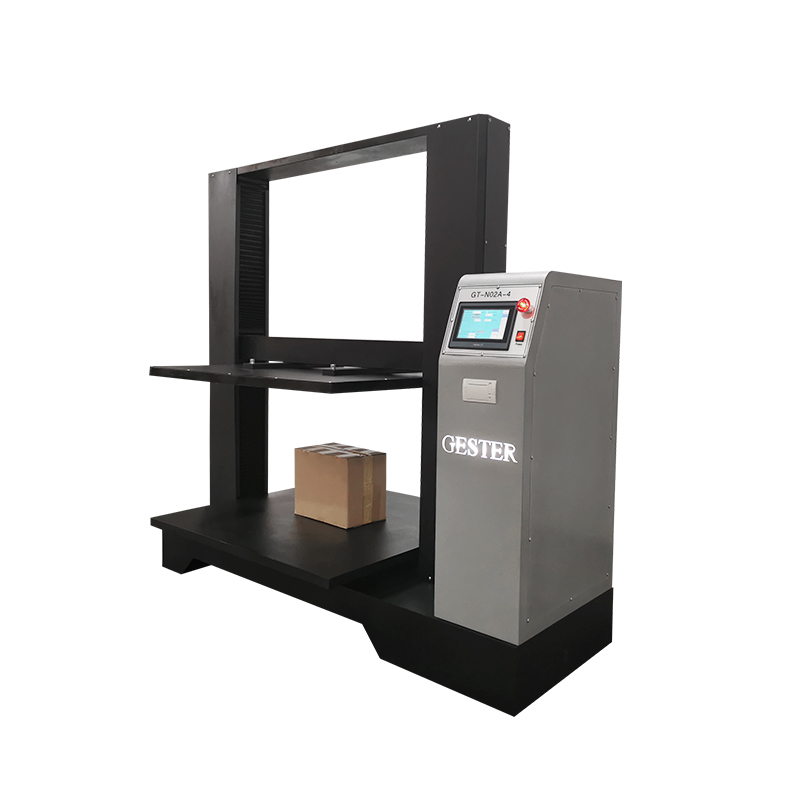

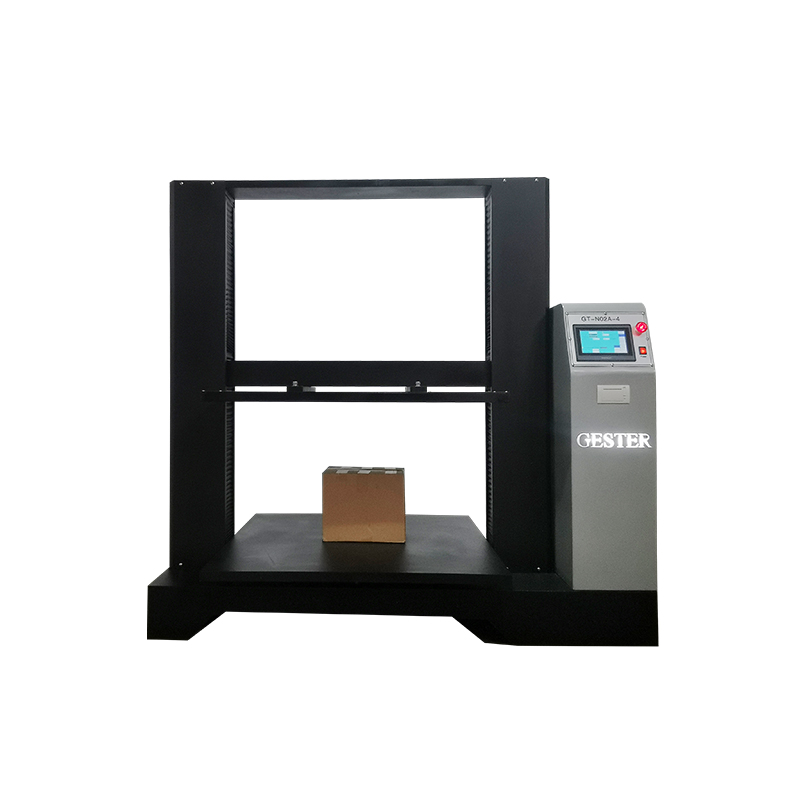

30KN Box Compression Tester GT-N02A

Product Description

Introduction
Box Compression Test Machine with multi-function and high precision is designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 30kN.

With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the 30KN Box Compression Tester has the following salient features: good parallelism, reliable measure precision and high return speed.

The Box Compression Tester is capable of various functions for all parameters in standards, Such as parametric test, display, memory, statistics and print function; data processing function to gain the statistical result of all parameters directly; and automatic reset and fault diagnosis function and easy operation.

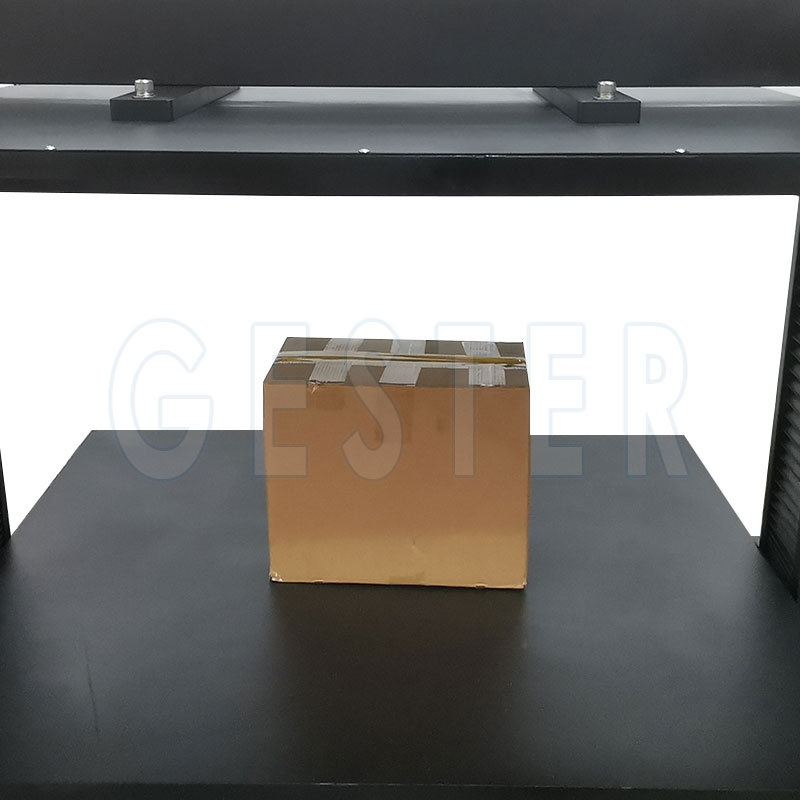

Sample types: Corrugated board boxes and Cartons, Plastic Packaging, Wooden box.

Features

1. Strength test
Strength test which belongs to a destructive test is mainly used to measure the deformation when the sample is loaded with maximum pressure or crushing strength.

2. Constant Value Test
There are two parameters which are to be set in the constant value test: load force value and
deformation value. The user can set one or both of them according to the practical requirement. the measure is complete when any parameter reaches the set value.

3. Stacking Test
Stacking Test is used to check up that whether the sample can endure a constant pressure in a given time period. Set up two parameters: compressive strength and testing time (hour).

when the test starts, the system will check the current pressure at any moment to ensure the set value; the measure is complete when the test time is expired or the deformation value exceeds the set one within testing time.

The overall system is in good parallelism, stationarity and high return speed.

Compliant Standards
ISO 2872, ISO 2874, ASTM D642, ISO 12048

Key Specification

Model	GT-N02A-1	GT-N02A-2	GT-N02A-3	GT-N02A-4	GT-N02A-N
Plate Size(mm)	500 x 500	600 x 600	800 x 800	1000 x 1000	Customized
MAX stroke(mm)	500	600	800	1000	Customized
Measuring range	0-10KN, 20KN, 30KN, 50KN, 70KN, 100KN (Optional)
Indication error	±1%
Test Speed	0.001-500mm/min

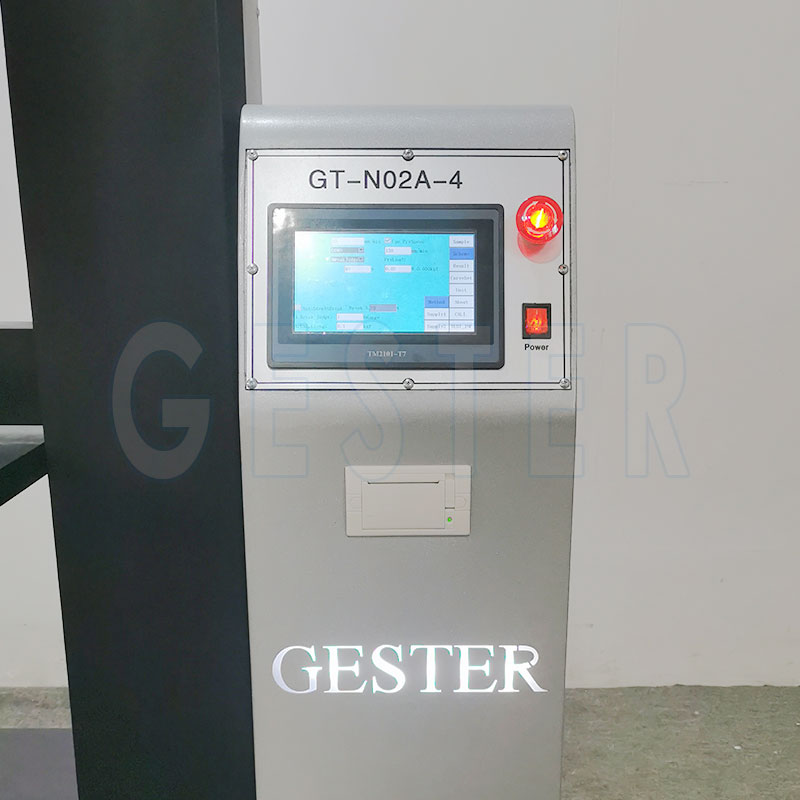

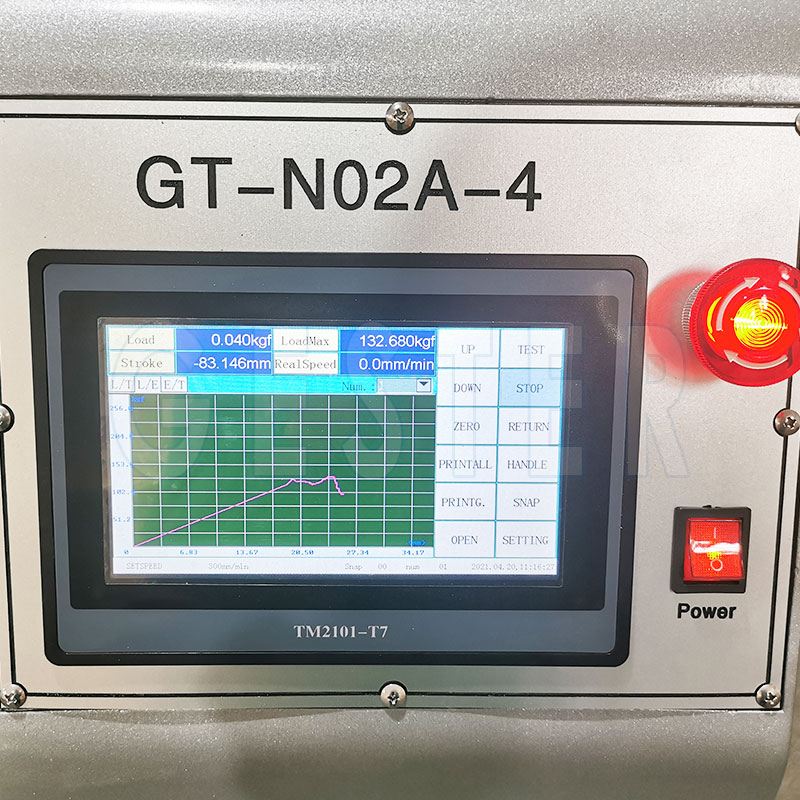

Display	Touch Screen
Printer	Direct thermal printer, high speed while noiseless.
Power	220V, 50/60Hz
