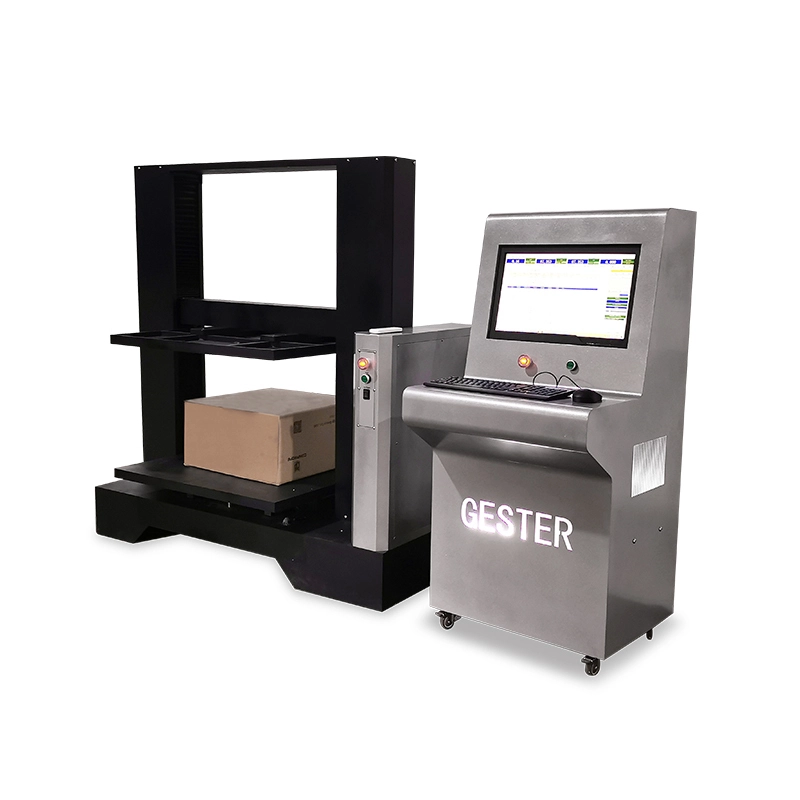

Box Compression Tester Computer Model GT-N02B
Application
Computer Model Box Compression Tester with multi-function and high precision is designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 100kN. With advanced mechanical structure of a pair of threaded shafts & guide pillars and imported motor for control, the testing machine has the following salient features: good parallelism, reliable measure precision and high return speed.
Features
1.Strength test which belongs to a destructive test is mainly used to measure the deformation when the sample is loaded with maximum pressure or crushing strength.
2.There are two parameters which are to be set in the constant value test: load force value.
3.Stacking Test is used to check up that whether the sample can endure a constant pressure in a given time period. Set up two parameters: compressive strength and testing time (hour).
4.The overall system is in good parallelism, stationarity and high return speed.
Product Parameters
Key Specification
Model | GT-N02B-1 | GT-N02B-2 | GT-N02B-3 | GT-N02B-4 | GT-N02B-N |
Plate Size(mm) | 500×500 | 600×600 | 800×800 | 1000×1000 | Customized |
Max Stroke(mm) | 500 | 600 | 800 | 1000 | Customized |
Column Number | 2 | ||||
Measuring Range | 0-10KN, 20KN, 30KN, 50KN. 70KN, 100KN (Optional) | ||||
Indication Error | ±0.5% | ||||
Test Speed | 0.001-500mm/min, can set by computer, with up & down fast adjustment button of grips | ||||
Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa | ||||
Display | Computer display mode | ||||
Stop Mode | Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function | ||||
Machine Drive | Servo motor drive, synchronous wheel and precision ball screw drive | ||||
Power Supply | AC 220V 5A 50Hz | ||||
Standards | ISO 2872, ISO 2874, ISO 12048, ASTM D642 , TAPPI T804 | ||||
