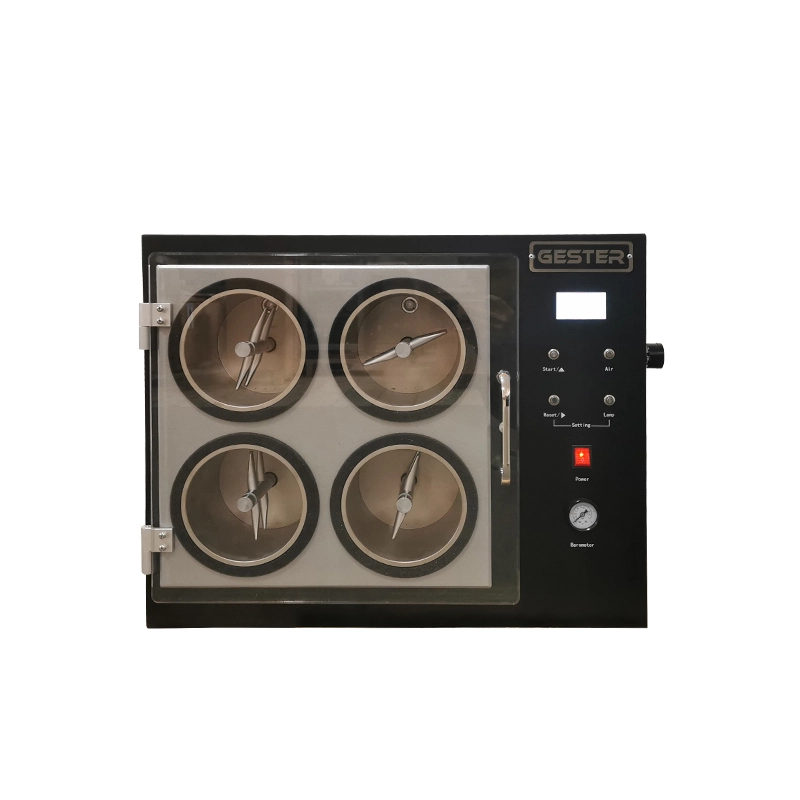

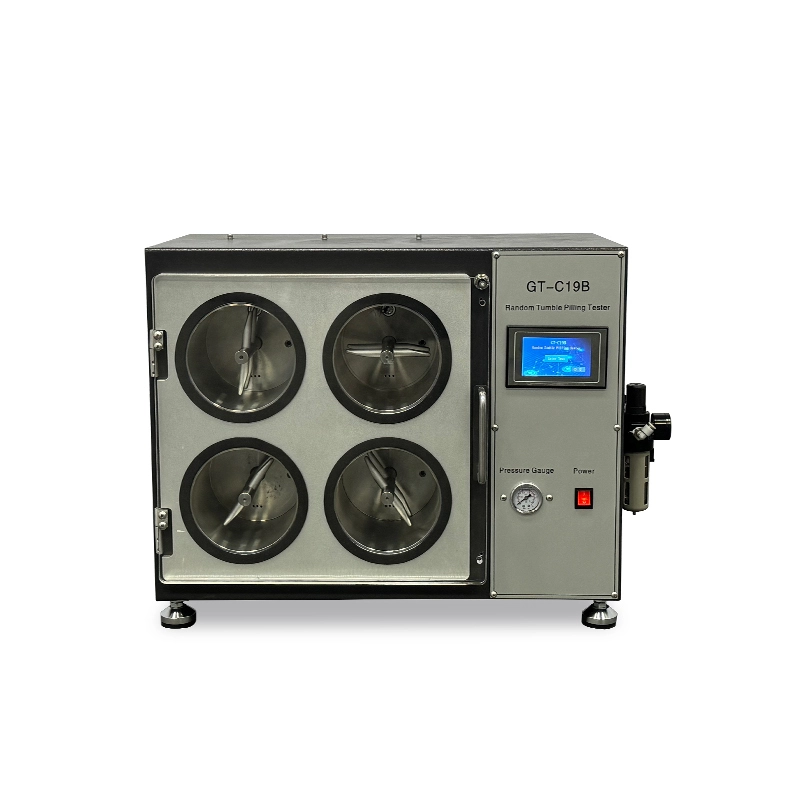

4 Test chambers Random Tumble Pilling Tester GT-C19B
Application:
Random tumble pilling tester, to determine the pilling and fuzzing characteristics of textile fabrics. Precision high-speed impeller for agitating the test specimens against cork lining for a pre-determined time controlled by a timer and audible alarm. Compressed air is also injected into the chamber to assist in the tumbling action. Laboratory standard compressed air supply required.
Feature:
1.Intelligent interface to guide the user.
2.Flexible system maximizes throughput and minimizes downtime.
3.Interchangeable impellers for different global standards.
4.Stable propeller and rotation speed.
Product Parameters
Key Specification
Test chambers | 4 Test chambers |
Rotating speed | 1200rpm |
Tumble diameter | 153mm |
Specimen | 105 x105mm |
Power supply | AC220V 50/60Hz |
Dimensions | 66x40x1375px (L×W×H) |
Weight | 75kg |
Standards | ASTM D3512, DIN 53867, JIS L1076 |
Accessories
Power line | 1pc | |
Cotton sliver
| Optional | |
Cork lining
| Optional | |
Standards photograph
| Optional | |
Air compressor
| Optional | |
Cleaner | Optional |
