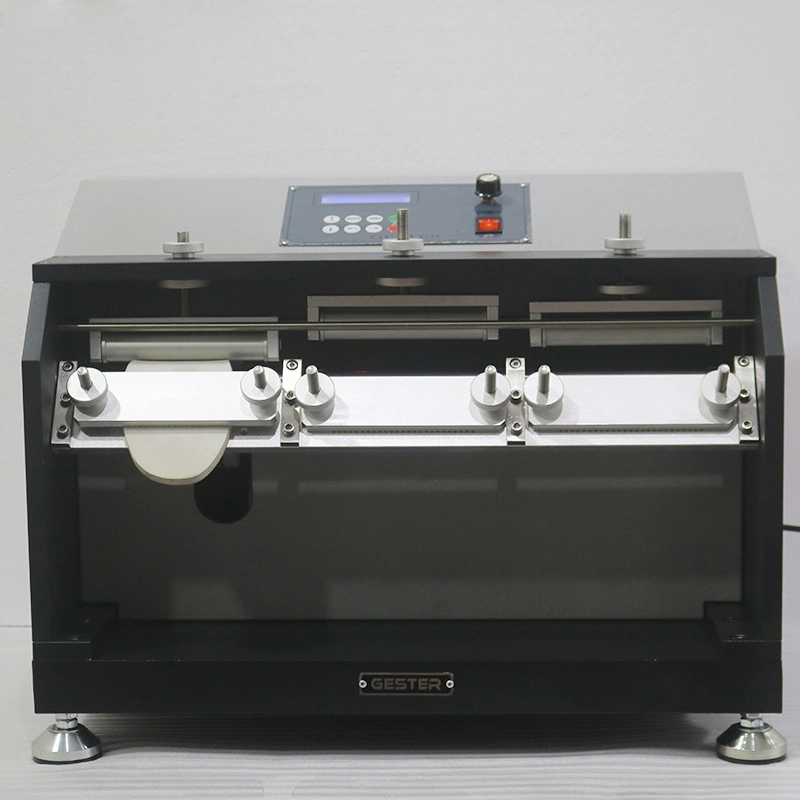

ASTM D1052 Whole Sole ROSS Flexing Tester GT-KB05D
Application
To determine right angle flexing risistance for whole sole of rubber, PU, PVC, TPR foam and other materials. And inspect its degree of damage, cracking and reduced decline by continuously stretch and bending.
Feature
1. Body paint baking processed, easy for maintenance
2. Fixture in aluminum material and surface processed with oxidation
3 .Equip with digital counter, automatically stop after test finished
Product Parameters
Key Specification
Model | GT-KB05D-1 | GT-KB05D-2 |
Fixuture | 3sets | 6sets |
Bending angle | 90±2° | |
Bending speed | 100± 3 cpm | 60± 5 cpm |
Winding shaft radius | 5± 0.3mm | |
Specimen dimension | Whole sole | |
Counter | LCD, 0~99,999,999 | |
Dimension (W×D×H) | 80×42×1125px | |
Weight | About 60 kg | |
Power Supply | 1∮AC 220V 50/60HZ 3A | |
Standards | ASTM D1052 | SATRA TM60, BS5131: 2.1, GB 2026, HG/T2411, ISO 5423, ISO4643 |
Accessories
Standard accessories | 1pc | Chisel cutter (2.5mm) for GT-KB05D-1 |
1pc | Chisel cutter (2mm) for GT-KB05D-2 | |
1pc | Power line |
Product Details
