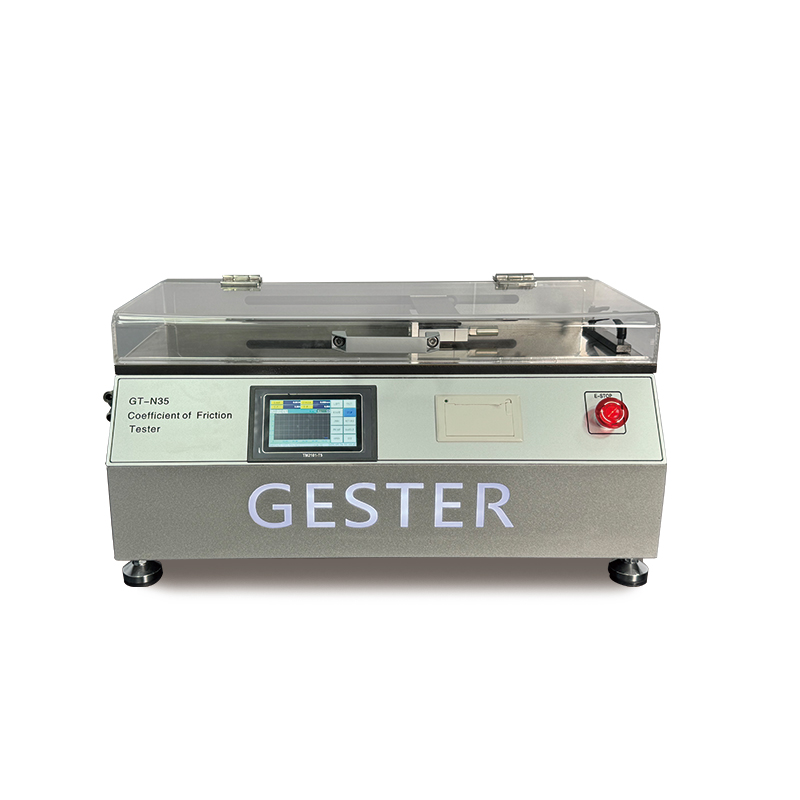

Coefficient of Friction Tester GT-N35

Brief Introduction of the product

It is used to measure the dynamic and static coefficients of plastic film and leather, rubber, paper and cardboard, woven bags, fabric styles, metal composite belts for communication cables and optical cables, pipe belts, wood, coatings, films, wipers, shoe materials, tires and other materials when sliding.

Principle

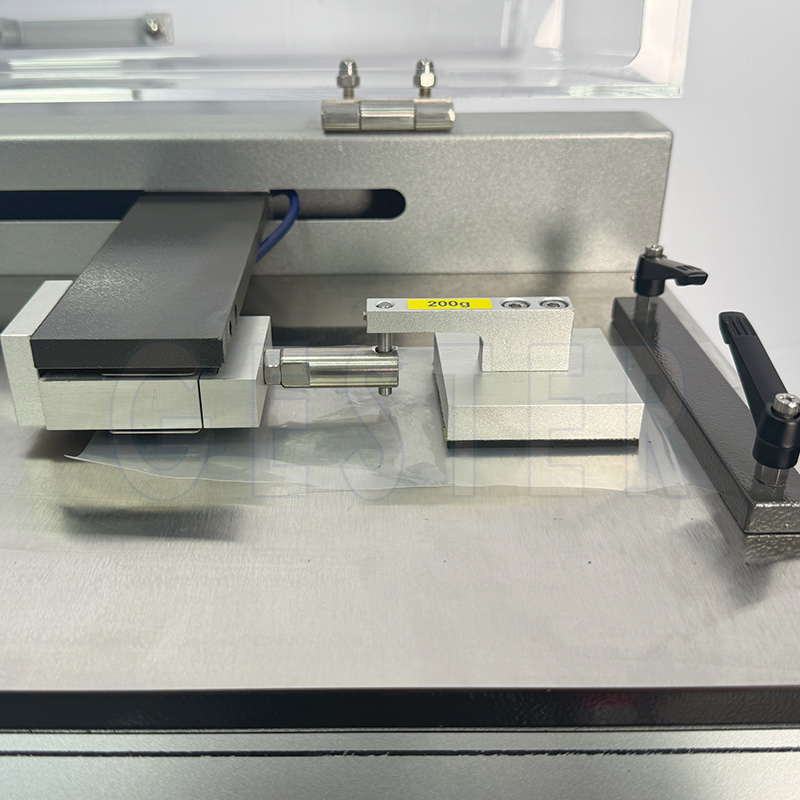

One of the two materials involved in the coefficient test is laid flat on the test table, and the other is fixed on a certain weight of inertia. The two test surfaces are placed flat together. Under a certain contact pressure, the two surfaces are moved relative to each other and the required friction force is recorded. The friction coefficient value is obtained by dividing the tested force by the corresponding gravity.

Standards

GB 10006, GB/T 17200, GB/T 22895, ISO 8295, ASTM D1894, TAPPI T816, GB/T 2792

Advantages

1. Imported microcomputer control technology, open structure, friendly human-machine interface operation, simple and convenient to use
2. Precision screw drive, stainless steel panel, high-quality stainless steel guide rail and reasonable design structure to ensure the stability and durability of the instrument
3. American high-precision force sensor, measurement accuracy better than 0.5 level
4. Precision differential motor drive, smoother transmission, lower noise, more accurate positioning, better repeatability of test results

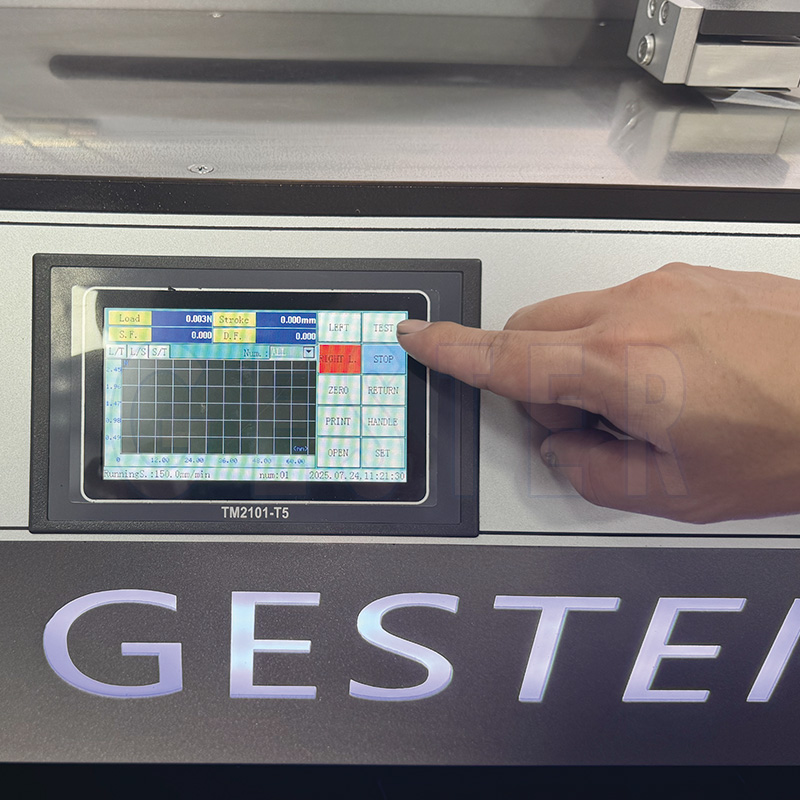

5. Touch screen controlling, English, real-time curve display, fully automatic measurement, with test data statistical processing function
6. High-speed micro printer print output, fast printing, low noise, no need to change ribbon, easy to change paper roll
7. Slider running device, sensor fixed-point force mode, effectively avoid sensor errors caused by motion vibration
8. Real-time digital display of dynamic and static friction coefficients, slider stroke can be preset and has a wider adjustment range
9. National standard, American standard, free mode optional

Key Specification

Send Inquiry Now

Model	GT-N35
Sample thickness	≤5mm (other thickness can be customized)
Slider size	63×63mm
Test mode	ISO, ASTM free mode
Display	65 million color TFT LCD screen
Slider mass	200g,500g
Test bench size	120×400mm
Digital Display	Simultaneous display of dynamic and static friction coefficients
Measurement accuracy	Better than 0.5
Slider movement speed	100, 150mm/min, 1-500mm/min stepless speed change (other speeds can be customized)
Slider stroke	Maximum 280mm (adjustable)
Measuring force range	0-30N
Dimension	600400400mm (LWH)
Power supply	AC220V±22V 50Hz
Environmental requirements	Temperature: 23±2℃, humidity: 50±5%RH
Standard accessory	Host, micro printer, 200g slider
Optional accessory	500g non-standard slider, computer software

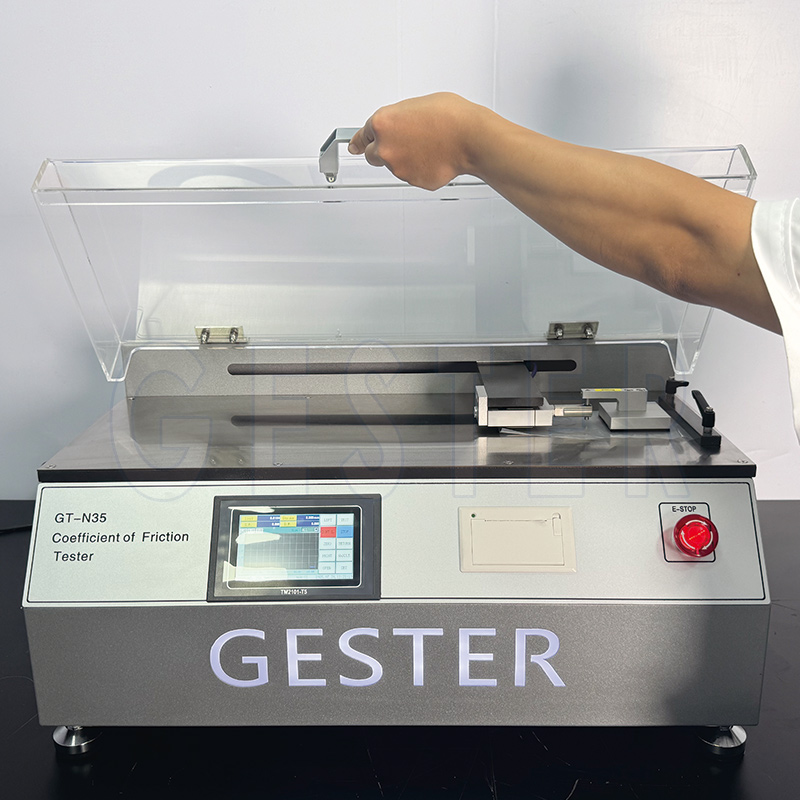

Product Details
