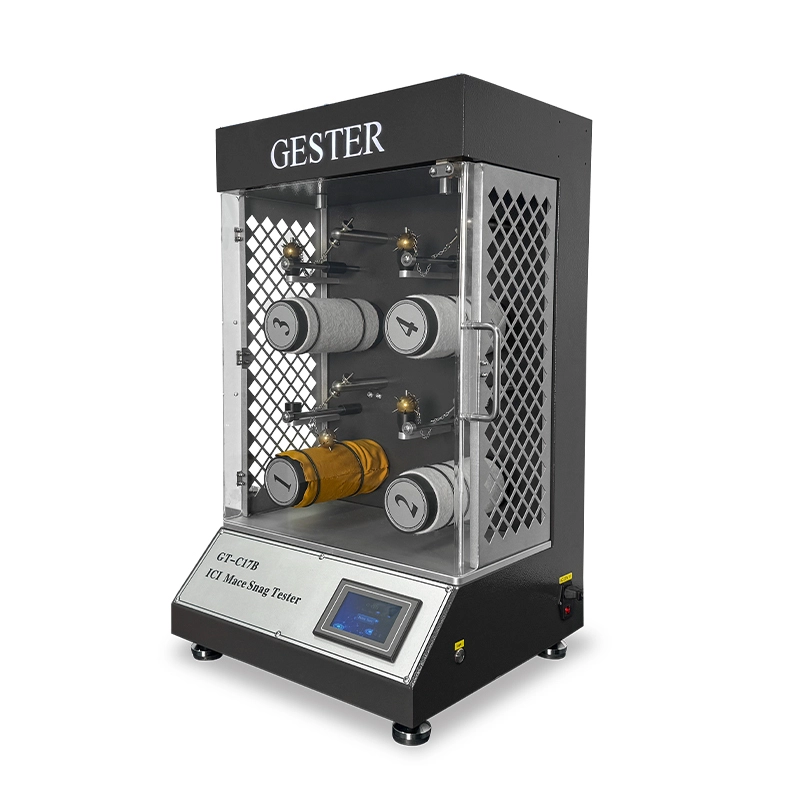

ASTM D3939 Fabric ICI Mace Snag Tester GT-C17
Application
ICI Mace Snag Tester applies to rapidly determine the snagging resistance of heavyweight fabrics such as apparel, upholstery, and automotive interiors fabrics etc.
Feature
1. Rotating cycle number can be pre-settable.
2. Stop automatically after getting the preset rotating cycles.
3. Length of chain is adjustable.
Standards
ASTM D3939, GB 11047, JIS L 1058, VDA 230-220
Product Parameters

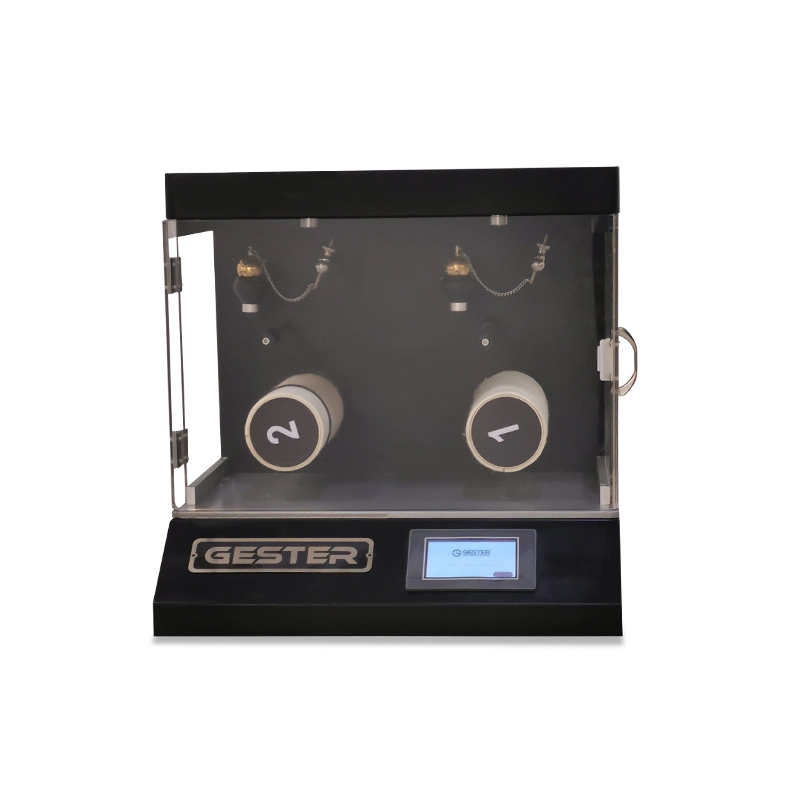

Model | GT-C17A | GT-C17B |
Working position | 2 | 4 |
Speed | 60rpm±2rpm | |
Testing cylinder | Φ82mm, Width: 210mm | |
Mace ball | Weight: 160±10g, 11 maces | |
Mace | Length: 10±1mm, Tip radius: R0.13mm | |
Counter | 0-99999 | |
Felt | Thickness: 3～3.2mm; Width: 165±1mm | |
Distance between nail hammer and guide rod | 45±1mm | |
Power supply | AC 220V 50/60HZ | |
Dimensions(LxWxH) | 560 x 420 x 480mm | 945x 420 x 480mm |
Accessories
Standard accessories | 1pc/pos | Felt sleeves (2pcs for GT-C17A; 4pcs for GT-C17B) |
| 2pcs/pos | Rubber rings (4pcs for GT-C17A; 8pcs for GT-C17B) |
| 1pc | Power line |
Optional accessories | Optional | Tungsten carbide maces |
| Optional | Standard photographs |
| Optional | GT-C78 pilling assessment box |
Product details
To ensure the testing accuracy and extend the service life, the nail hammer was made up of platinum steel.
