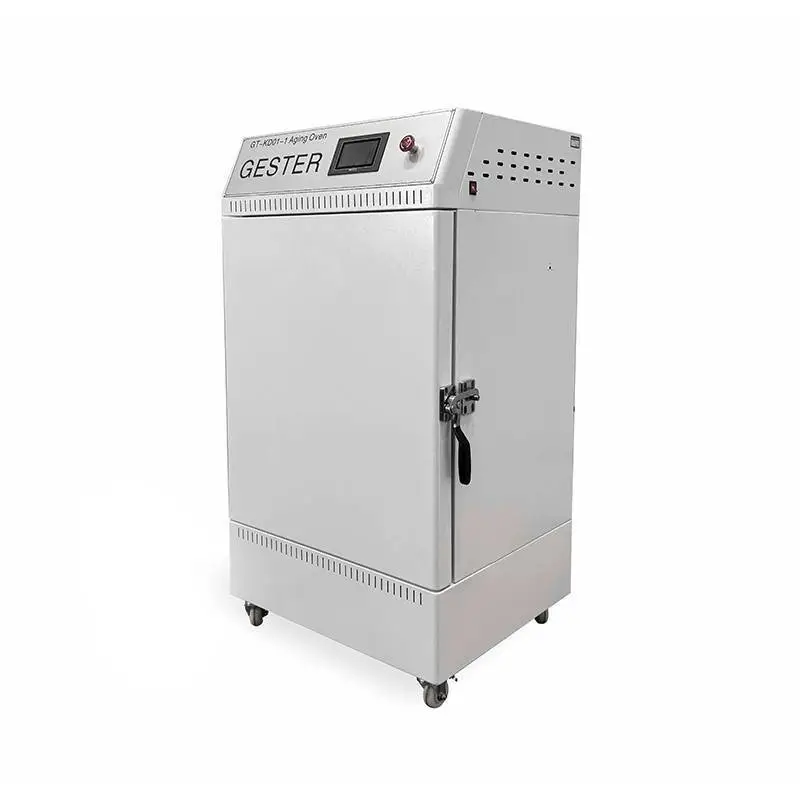

ASTM D573 Aging Oven Tester GT-KD01
Aging Oven GT-KD01
Product Description
GT-KD01 ASTM D573 Aging Oven Tester assesses the transformation of materials like leather, plastic, rubber, and cloth following exposure to controlled heating conditions. By subjecting specimens to specified temperatures and durations, the device evaluates characteristics such as color stability, adhesive integrity, dimensional changes, elongation, and residual effects post-aging. It's employed to accelerate aging in rubber and plastic items for accelerated deterioration assessment or to compare alterations in mechanical properties like tensile strength, elongation, and flex resistance pre- and post-high-temperature treatments.
Product Specifications
Our specialists can help you find the perfect seating for your home.
| Model | GT-KD01-1 | GT-KD01-2 |
| Temp. Range | RT ~ 200℃ | RT ~ 300℃ |
| Control Mode | Touch screen control | |
| Temperature Resolution | 0.1°C | |
| Heating Method | Hot-air circulation | |
| Average Air Speed | 0.5±0.25m/s | |
| Air Exchange Rate | Between 3 and 10 times per hour | |
| Timer | 0 - 999 hr | |
| Rotation Tray | Dia. 35 cm | |
| Turntable Rotation Speed | 3~10 rpm | |
| Interior Chamber | 50 x 50 x 60 cm | |
| Dimension (W×D×H) | 78 x 65 x 132 cm | |
| Weight | About 150 kg | |
| Power | 1∮AC 220V 50/60HZ | |
| Standard | ISO 188 Method C, ASTM D573 | |
